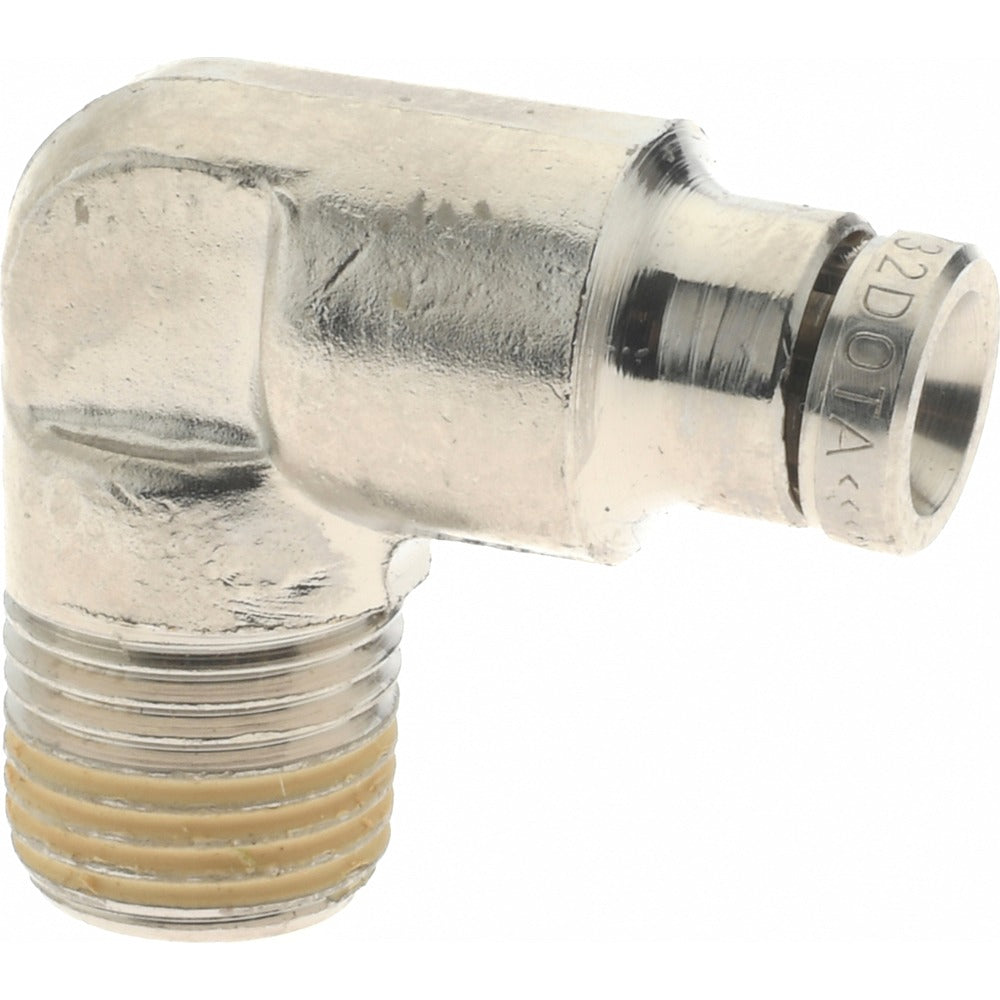

Norgren 101450418 Push-to-connect Elbow Adapter Bspt

Product Description

The NORGREN 101450418 is a push-to-connect elbow adapter fitting designed for tube-to-male BSPT pneumatic and fluid line connections. Constructed from nickel-plated brass, this fitting provides a 90-degree directional change in tubing runs while maintaining a rated maximum working pressure of 260 psi. The push-to-connect design allows for quick, tool-free tube insertion on one end, with a 1/8 inch male BSPT threaded connection on the other. The fitting accepts 4 mm outside diameter tubing and incorporates a nitrile O-ring for a reliable seal. HVAC technicians, plumbers, and pneumatic systems specialists install this type of fitting in compressed air, instrumentation, and fluid control applications.

This elbow adapter is suited for use in both residential and light commercial pneumatic or fluid distribution systems where a compact directional change is needed. It is commonly installed in compressed air lines, pneumatic control circuits, and instrumentation tubing runs where space is limited and quick tube connections are preferred. The BSPT threaded end allows integration with standard British-standard ported equipment and manifolds.

Key Features

• Push-to-connect tube end for fast, tool-free tube insertion and removal
• 1/8 inch male BSPT thread for compatibility with British Standard Parallel Taper ported equipment
• Rated to 260 psi maximum working pressure
• Nickel-plated brass construction for corrosion resistance in pneumatic and fluid service
• Nitrile O-ring seal for reliable, leak-resistant performance
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style push-to-connect elbow adapter for pneumatic and fluid control systems using 4 mm outside diameter tubing with 1/8 inch male BSPT threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line assembly. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the mating port thread standard is BSPT before installation, as BSPT and NPT threads are not interchangeable. Inspect the nitrile O-ring for damage before assembly and confirm tubing is cut cleanly and squarely for a proper push-to-connect seal.
