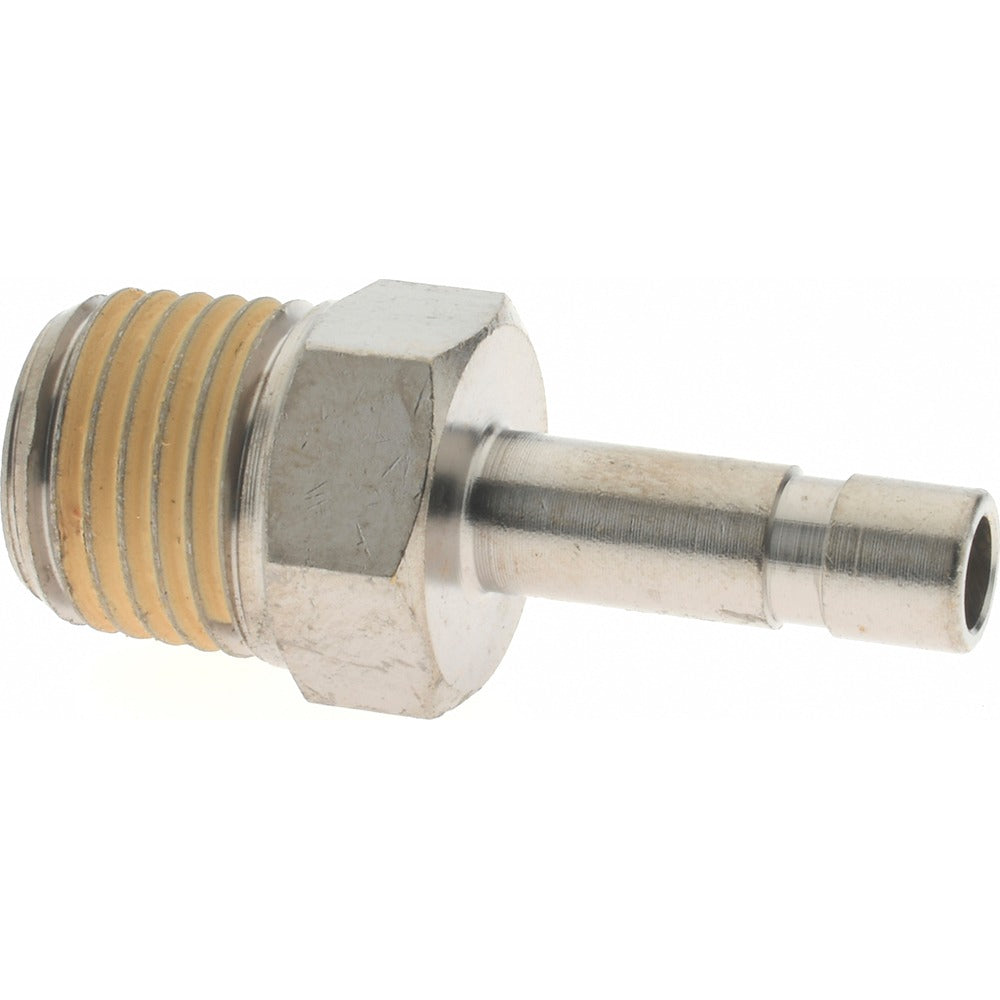

Norgren 101150628 Straight Stem Adapter Bspt 260 Psi

Product Description

The NORGREN 101150628 is a straight stem adapter tube fitting designed for push-to-connect pneumatic and fluid line assemblies. It features a stem-to-male BSPT connection configuration that joins push-to-connect tubing on one end to a male BSPT threaded port on the other. Constructed from nickel-plated brass with a nitrile O-ring, this adapter handles a maximum working pressure of 260 psi across an operating temperature range of 0 degrees F to 175 degrees F. The fitting accepts 6 mm outside diameter tubing and measures 33.50 mm in overall length. It is installed by plumbers, pipefitters, and pneumatic system technicians working on compressed air and fluid control lines.

This adapter is suited for use in compressed air distribution, pneumatic control systems, and industrial fluid lines where a transition from push-to-connect tubing to a BSPT-threaded port is required. Typical applications include connecting flexible tubing to valves, manifolds, cylinders, or other components that carry a male BSPT thread. The nickel-plated brass construction makes it appropriate for both indoor and light industrial environments where corrosion resistance is a consideration.

Key Features

• Push-to-connect stem inlet accepts 6 mm outside diameter tubing for tool-free tube insertion
• Male BSPT threaded outlet for direct connection to BSPT-ported components
• Nickel-plated brass body resists corrosion in compressed air and compatible fluid service
• Nitrile O-ring provides reliable sealing across the rated temperature range
• Rated to 260 psi maximum working pressure
• Compact overall length of 33.50 mm suits tight installation spaces

Compatibility

Designed as a standard push-to-connect stem-to-male BSPT straight adapter for pneumatic and fluid control plumbing systems using 6 mm outside diameter tubing and BSPT-threaded ports.

Installation Notes

Installation is performed by qualified plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the line completely before removing or installing any fittings. Ensure the BSPT thread engagement is sealed with an appropriate thread sealant compatible with the service fluid. Confirm the tubing outside diameter matches the 6 mm stem specification before insertion to maintain a proper push-to-connect seal.
