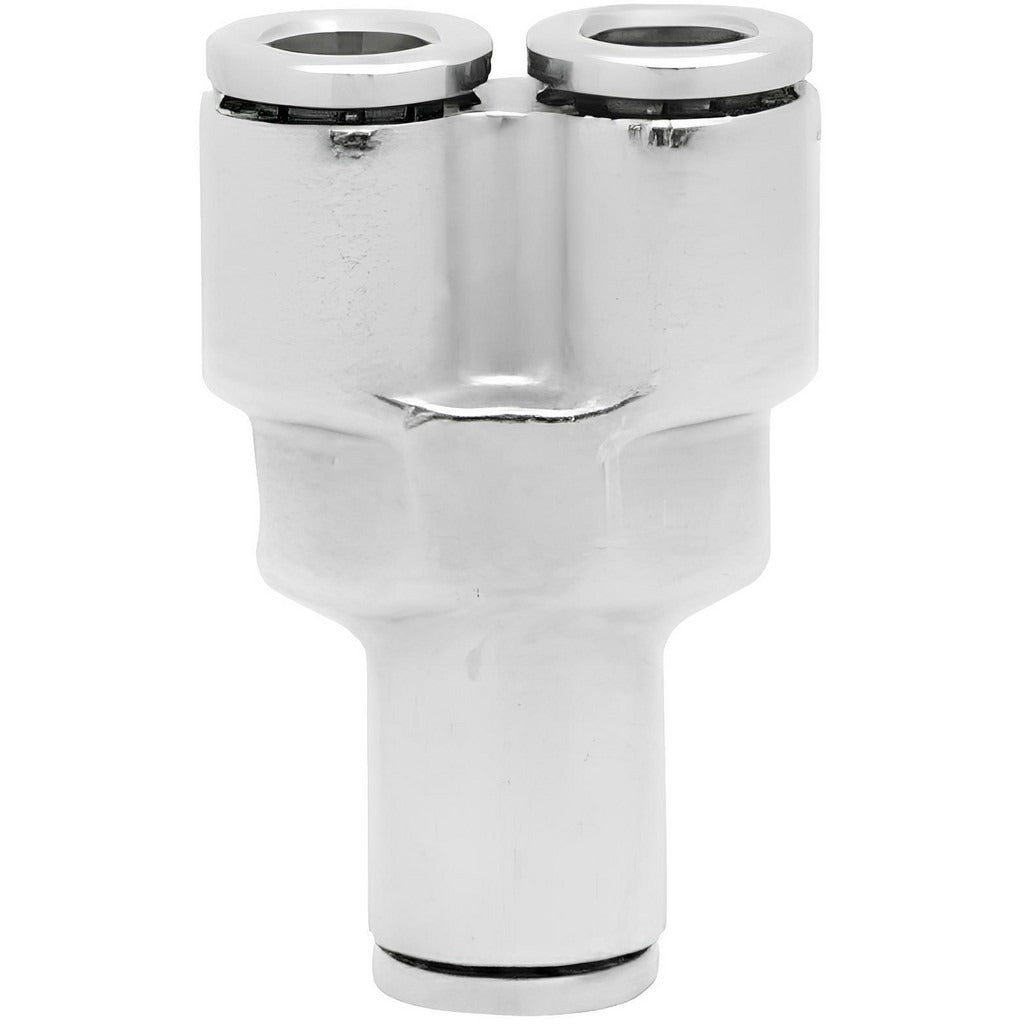

Norgren 100820604 Push-to-connect Parallel Y-connector

Product Description

The NORGREN 100820604 is a push-to-connect parallel Y-connector tube fitting designed to split or combine flow between two tube lines without tools or threaded connections. Constructed from nickel-plated brass, it handles a maximum working pressure of 260 psi and an operating temperature range of 0 to 175 degrees F. The push-to-connect design allows fast, secure tube insertion and removal in pneumatic and low-pressure fluid circuits. Nitrile O-rings provide reliable sealing across a broad range of general-purpose media. Licensed HVAC technicians, plumbers, and industrial maintenance professionals install this fitting in line runs where a parallel branch connection is required.

This fitting is suited for general-purpose pneumatic and fluid distribution systems in both light commercial and industrial applications. The Y-configuration allows a single supply line to branch into two parallel outlets, making it practical for manifold-style plumbing, pneumatic control circuits, and compressed-air distribution runs. The 4 mm inlet and 6 mm outlet tube outside diameters accommodate common small-bore tubing used in instrumentation and controls applications.

Key Features

• Push-to-connect design enables tool-free tube insertion and removal
• Nickel-plated brass body resists corrosion in general-purpose service
• Rated to 260 psi maximum working pressure
• Nitrile O-rings compatible with a wide range of pneumatic and fluid media
• Wide temperature range: 0 to 175 degrees F
• Parallel Y-configuration for splitting or combining tube runs

Compatibility

Designed for general-purpose tube-to-tube connections using small-bore tubing with 4 mm and 6 mm outside diameters in pneumatic and low-pressure fluid systems.

Installation Notes

Installation is typically performed by HVAC technicians, instrumentation technicians, or industrial maintenance personnel. Before servicing any pneumatic or fluid circuit, depressurize the system completely and isolate the line. Verify that tubing outside diameters match the fitting ports before insertion, and ensure the tube end is cut cleanly and squarely to achieve a proper seal. Follow all applicable pneumatic system codes and manufacturer guidelines for the broader system.
