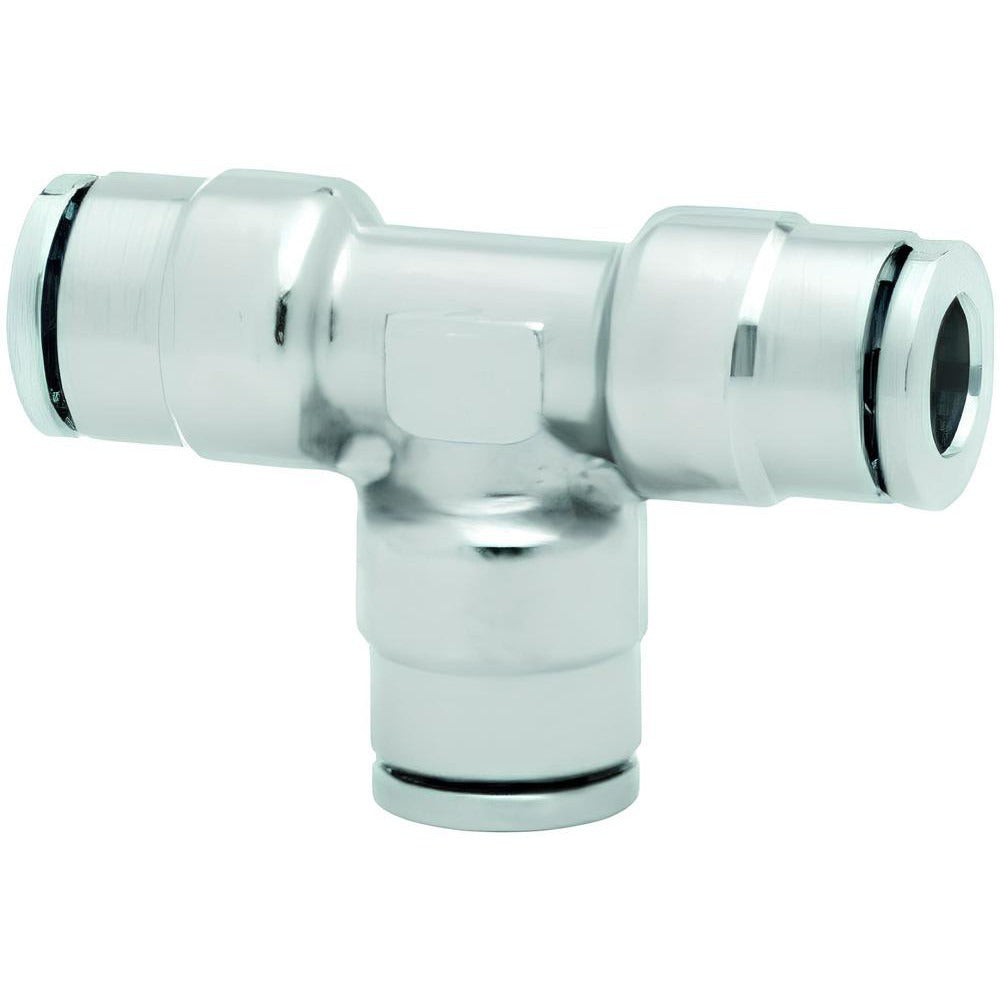

Norgren 100601400 Push-to-connect Tube Fitting 260 Psi

Product Description

The NORGREN 100601400 is a push-to-connect tube-to-tube fitting constructed from nickel-plated brass. It is designed for pneumatic and fluid conveyance lines where a fast, tool-free tube connection is required. The fitting accommodates a 14.00 mm outside diameter tube and is rated for a maximum working pressure of 260 psi. Operating temperature range spans from 0 degrees F to 175 degrees F, making it suitable for general-purpose compressed air and compatible fluid systems. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in both industrial and commercial applications.

This fitting is suited for general-purpose pneumatic and fluid line assemblies in commercial and light industrial environments. The push-to-connect design allows for quick installation without additional tools, reducing labor time on new installations and service calls. It is appropriate for use anywhere a reliable tube-to-tube connection is needed within the rated pressure and temperature limits.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• Nickel-plated brass body offers corrosion resistance in general-purpose service environments
• Rated to 260 psi maximum working pressure
• Accepts 14.00 mm outside diameter tubing
• Nitrile o-ring provides a reliable seal across the rated temperature range
• Wide operating range of 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid conveyance systems using 14.00 mm outside diameter tubing within the rated pressure and temperature limits.

Installation Notes

Installation is performed by licensed pipefitters or pneumatic system technicians. Always depressurize and lock out the supply line before servicing or replacing fittings. Ensure tubing is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect port. Verify that the tubing outside diameter and system pressure do not exceed the fitting ratings before returning the system to service.
