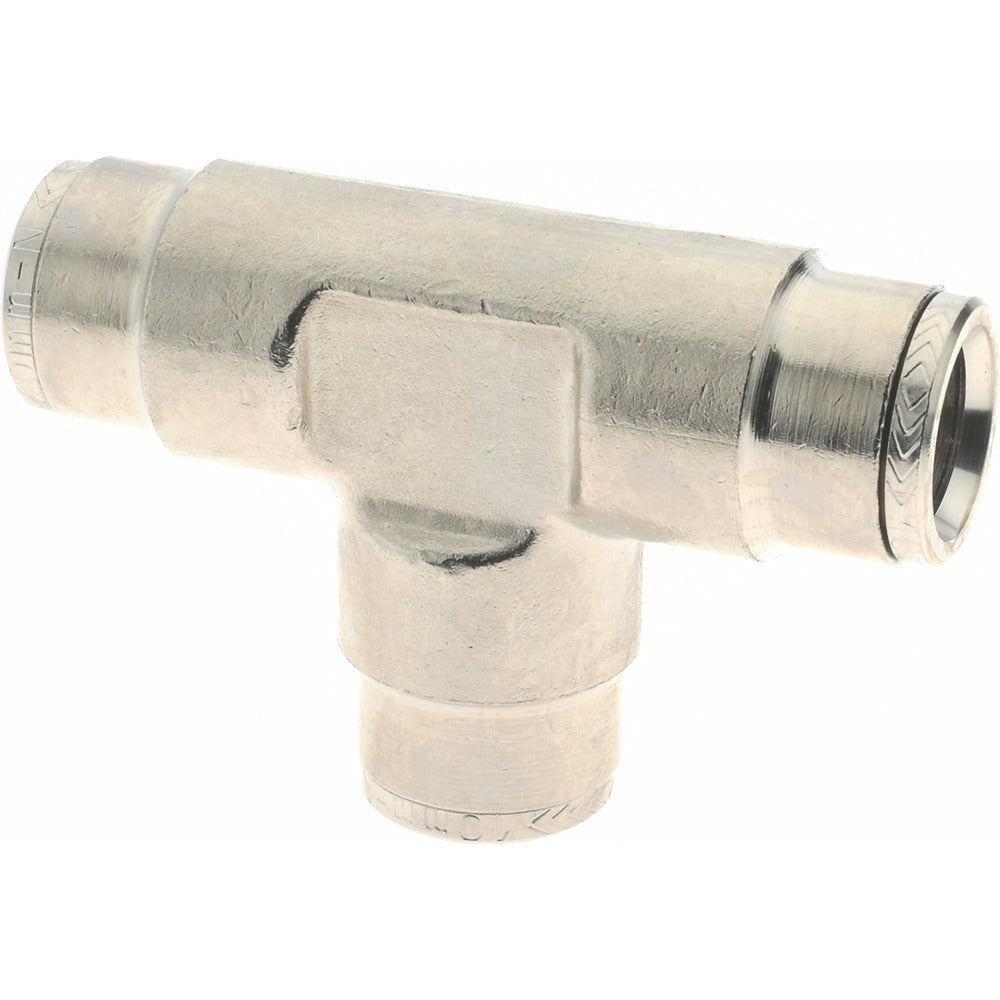

Norgren 100601000 Push-to-connect Tee Fitting 260 Psi

Product Description

The NORGREN 100601000 is a push-to-connect tee connector designed for tube-to-tube pneumatic and fluid line connections. Constructed from nickel-plated brass with a nitrile O-ring, it handles a maximum working pressure of 260 psi and an operating temperature range of 0 to 175 degrees F. The tee configuration splits or combines flow at a single junction point, making it well suited for compressed air distribution, pneumatic control circuits, and similar fluid handling applications. Licensed plumbers, pipefitters, and HVAC technicians working with push-to-connect pneumatic tubing are the primary installers of this fitting.

This fitting accepts 10mm outside diameter tubing and provides a leak-resistant connection without the need for threading, solder, or additional sealing compounds. It is appropriate for residential and light commercial pneumatic systems, instrumentation lines, and HVAC controls tubing where a reliable three-way branch connection is required. The overall length of approximately 2.05 inches (52mm) keeps the assembly compact in tight plumbing configurations.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal
• Nickel-plated brass body resists corrosion and provides durability in pneumatic service
• Nitrile O-ring seals rated for broad chemical compatibility with air and common pneumatic media
• Rated to 260 psi maximum working pressure for reliable performance in pressurized systems
• Operates across a temperature range of 0 to 175 degrees F
• Compact tee body at 52mm overall length fits into space-constrained installations

Compatibility

Designed as an OEM-style push-to-connect tee fitting for pneumatic and fluid handling systems using 10mm outside diameter tubing.

Installation Notes

This fitting is typically installed by licensed plumbers, pipefitters, or HVAC technicians working on pneumatic control or compressed air systems. Before installation, depressurize and lock out the system completely. Ensure tube ends are cut squarely and deburred before insertion to achieve a proper seal. Refer to applicable codes such as the IPC or system manufacturer guidelines for pneumatic line assembly requirements.
