Norgren 100401000 Push-to-connect Elbow Tube Fitting

Product Description

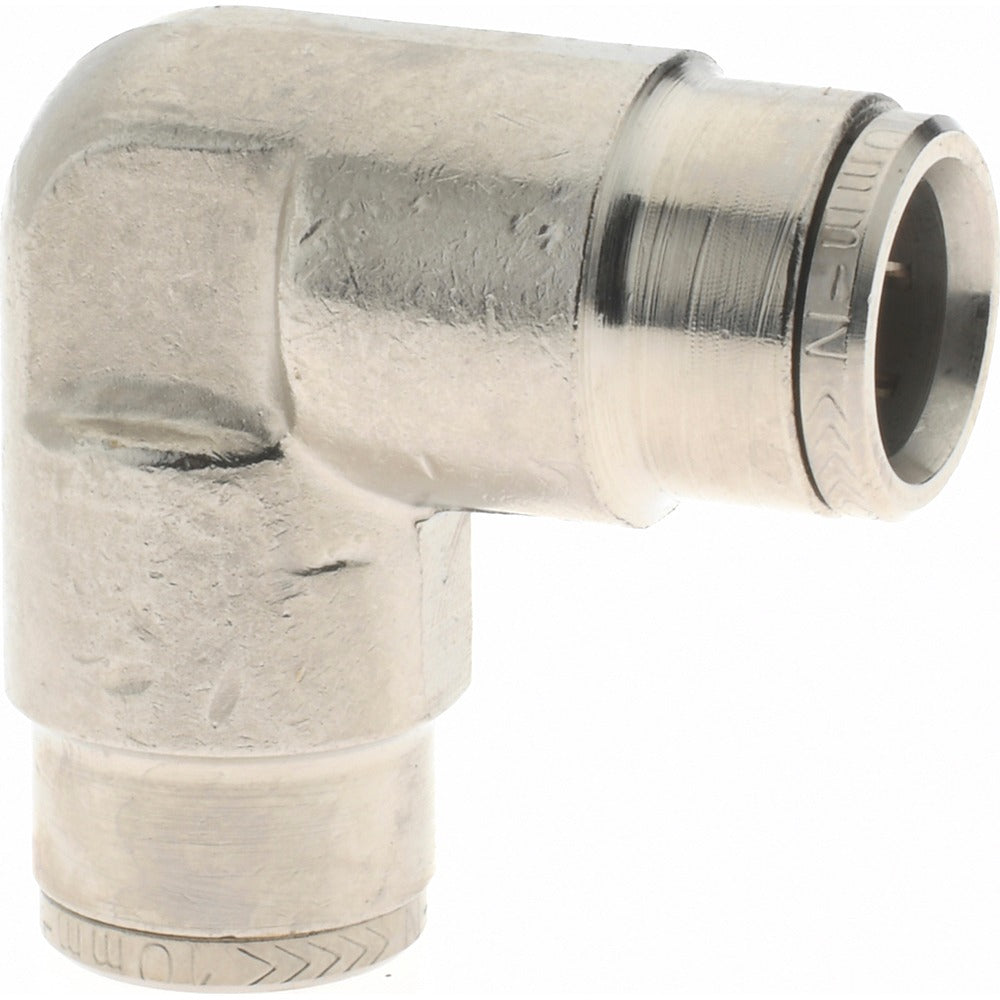

The NORGREN 100401000 is a push-to-connect elbow tube fitting designed for tube-to-tube connections in pneumatic and fluid handling systems. Constructed from nickel-plated brass, it delivers a maximum working pressure of 260 psi and operates across a temperature range of 0 degrees F to 175 degrees F. The elbow geometry allows directional changes in tubing runs without the need for bending or additional adapters. The fitting accepts 10 mm outside diameter tubing and uses a nitrile O-ring for a reliable seal. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers for this type of component.

This fitting is suited for residential and light commercial pneumatic systems, compressed air distribution lines, and fluid transfer applications where a 90-degree directional change is required. The push-to-connect mechanism allows for fast, tool-free tube insertion, making it a practical choice for high-volume assembly environments or service calls where downtime must be minimized. The nickel-plated brass body provides corrosion resistance in moderate-duty applications.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Nickel-plated brass body for corrosion resistance and durability
• Rated to 260 psi maximum working pressure
• Compatible with 10 mm outside diameter tubing
• Nitrile O-ring seal for reliable performance across the rated temperature range
• Elbow configuration enables 90-degree directional changes in tubing runs

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and fluid handling systems using 10 mm outside diameter tubing with working pressures at or below 260 psi.

Installation Notes

This fitting is typically installed by licensed plumbers, pipefitters, or pneumatic system technicians. Before installation, depressurize and isolate the system completely. Ensure tubing ends are cut cleanly and squarely with no burrs before insertion into the fitting to maintain a proper seal. Follow applicable codes such as ASME B31.1 or local compressed air piping standards for system design and pressure testing.
