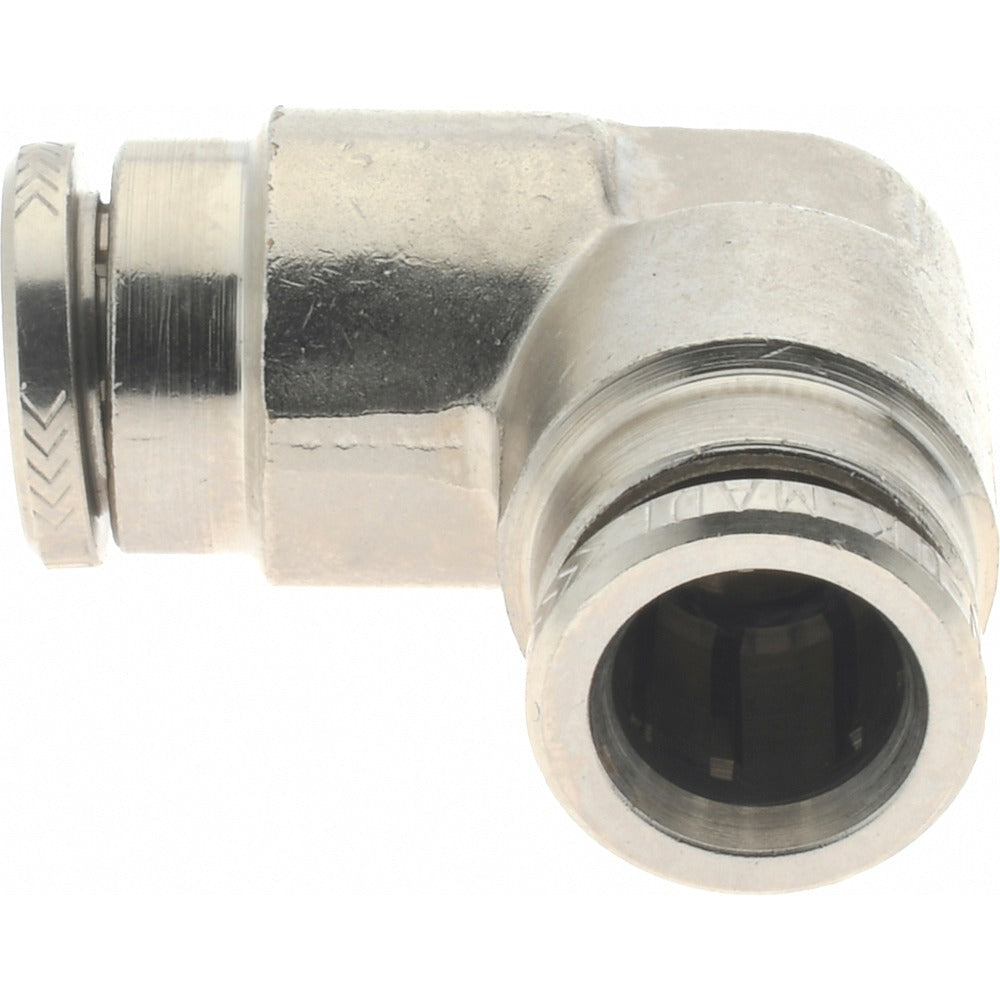

Norgren 100400800 Push-to-connect Elbow Fitting 260 Psi

Product Description

The NORGREN 100400800 is a push-to-connect elbow tube fitting designed for tube-to-tube connections in pneumatic and fluid-handling systems. Constructed from nickel-plated brass with a nitrile O-ring, this elbow connector provides a secure 90-degree connection without threading or soldering. It is rated for a maximum working pressure of 260 psi and handles operating temperatures from 0 degrees F to 175 degrees F. The push-to-connect design allows fast, tool-free assembly, making it a reliable choice for technicians working on compressed air, pneumatic control, or light fluid distribution lines.

This fitting is suited for residential and commercial pneumatic systems, automation equipment, and process control applications where a reliable elbow junction between two tubes is required. With an 8 mm outside diameter tube connection, it fits standard metric tube lines. HVAC controls technicians, industrial maintenance techs, and plumbing professionals working with pneumatic instrumentation lines will find this fitting straightforward to install and service.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and release
• Nickel-plated brass body for corrosion resistance and durability
• Nitrile O-ring sealing for reliable pressure retention
• 260 psi maximum working pressure rating
• Operating temperature range of 0 degrees F to 175 degrees F
• 8 mm outside diameter tube compatibility

Compatibility

Designed as an OEM-style push-to-connect elbow fitting for pneumatic and fluid-handling systems using 8 mm outside diameter tubing.

Installation Notes

Installation is performed by qualified pneumatic system or HVAC controls technicians. Depressurize and isolate the line completely before disconnecting or installing any fitting. Ensure tubing is cut cleanly and squarely with no burrs before inserting into the push-to-connect collet. To remove the fitting from a pressurized circuit, verify the system is fully vented before pressing the release collar.
