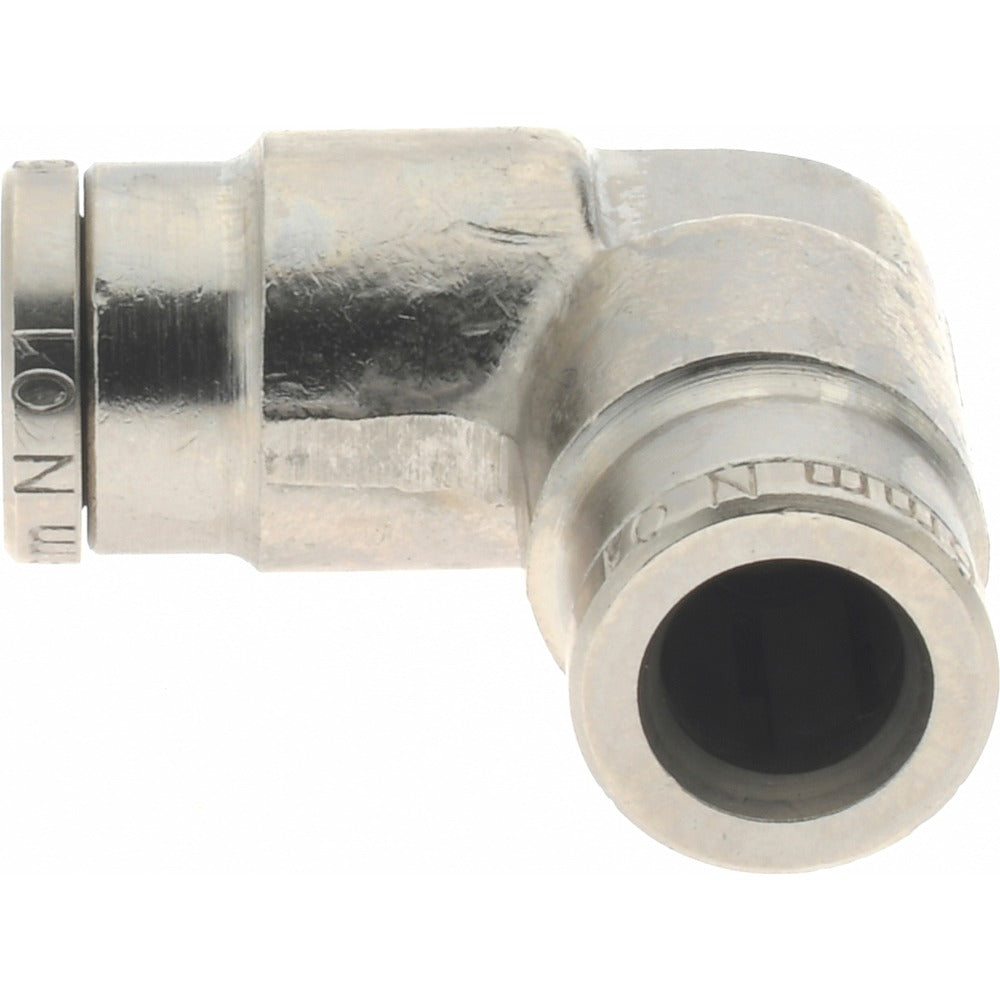

Norgren 100400600 Push-to-connect Elbow Fitting 260 Psi

Product Description

The NORGREN 100400600 is a push-to-connect elbow tube fitting designed for tube-to-tube connections in pneumatic and fluid conveyance systems. Constructed from nickel-plated brass with a nitrile O-ring seal, this fitting provides a leak-resistant elbow connection without the need for thread sealing compounds or ferrule compression. It is rated for a maximum working pressure of 260 psi and operates across a temperature range of 0 to 175 degrees F. The push-to-connect design allows for fast, tool-free installation and removal, making it a practical choice for plumbing technicians, pneumatic system builders, and industrial maintenance professionals.

This elbow fitting is suited for residential and light commercial pneumatic plumbing applications where a 90-degree direction change is required in a tube run. The tube outside diameter is 6 millimeters, making it compatible with standard 6 mm OD tubing used in compressed air, instrumentation, and fluid control systems. It is commonly installed in air preparation assemblies, pneumatic panel builds, and small-bore fluid circuits where a compact elbow connection point is needed.

Key Features

• Push-to-connect design allows tool-free tube insertion and release
• Nickel-plated brass body resists corrosion in industrial environments
• Nitrile O-ring provides reliable sealing across the rated temperature range
• Rated to 260 psi maximum working pressure
• Compact elbow profile suits tight routing in pneumatic panels and equipment cabinets
• Compatible with 6 mm outside diameter tubing

Compatibility

Designed as an OEM-style replacement or new-installation elbow fitting for pneumatic and fluid systems using 6 mm OD tubing with connection pressures up to 260 psi.

Installation Notes

Depressurize and isolate the pneumatic or fluid circuit completely before disconnecting or installing any push-to-connect fitting. Cut tubing squarely and deburr the cut end before insertion to ensure a proper seal. To release the tube, press the collet ring inward while pulling the tube free. Refer to applicable system design standards and the equipment manufacturer's guidelines when selecting fittings for regulated or pressure-rated assemblies.
