Norgren 100400500 Push-to-connect Elbow Fitting

Product Description

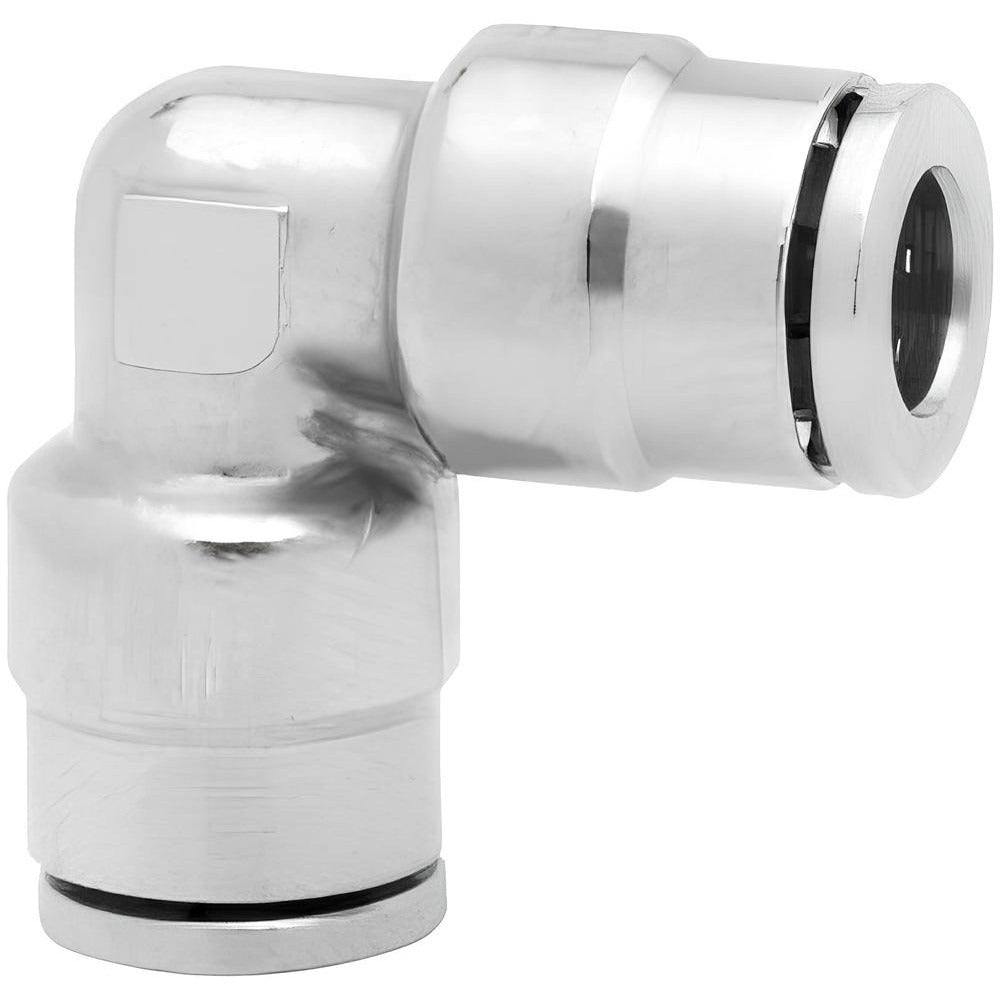

The NORGREN 100400500 is a push-to-connect tube-to-tube elbow connector designed for pneumatic and fluid transfer lines in general-purpose applications. Constructed from nickel-plated brass, this fitting allows quick, tool-free tube connections at a 90-degree elbow angle. It is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal across a wide range of media. This fitting is typically installed by HVAC technicians, plumbers, and industrial maintenance professionals working with small-diameter tubing systems.

This elbow connector is suited for general-purpose pneumatic lines, instrumentation tubing, and fluid control systems where a compact 90-degree directional change is needed. The push-to-connect design speeds up assembly and simplifies replacement in tight spaces. The 5 mm outside diameter tube compatibility makes it appropriate for light industrial, HVAC, and process control installations where space and installation time are priorities.

Key Features

• Push-to-connect design for tool-free, fast tube insertion and release
• Nickel-plated brass body for corrosion resistance and durability
• 260 psi maximum working pressure rating
• Operating temperature range: 0 degrees F to 175 degrees F
• Nitrile O-ring seal for reliable, leak-resistant connections
• Compatible with 5 mm outside diameter tubing

Compatibility

Designed for general-purpose tube-to-tube push-to-connect applications using 5 mm outside diameter tubing in pneumatic and fluid transfer systems.

Installation Notes

Installation is typically performed by licensed HVAC technicians, plumbers, or instrumentation technicians. Before servicing, depressurize the line completely and verify system pressure is at zero before inserting or removing the fitting. Ensure tube ends are cut cleanly and squarely with no burrs to maintain a proper O-ring seal. Follow applicable codes such as ASME or local plumbing and mechanical codes for pneumatic and fluid line work.
