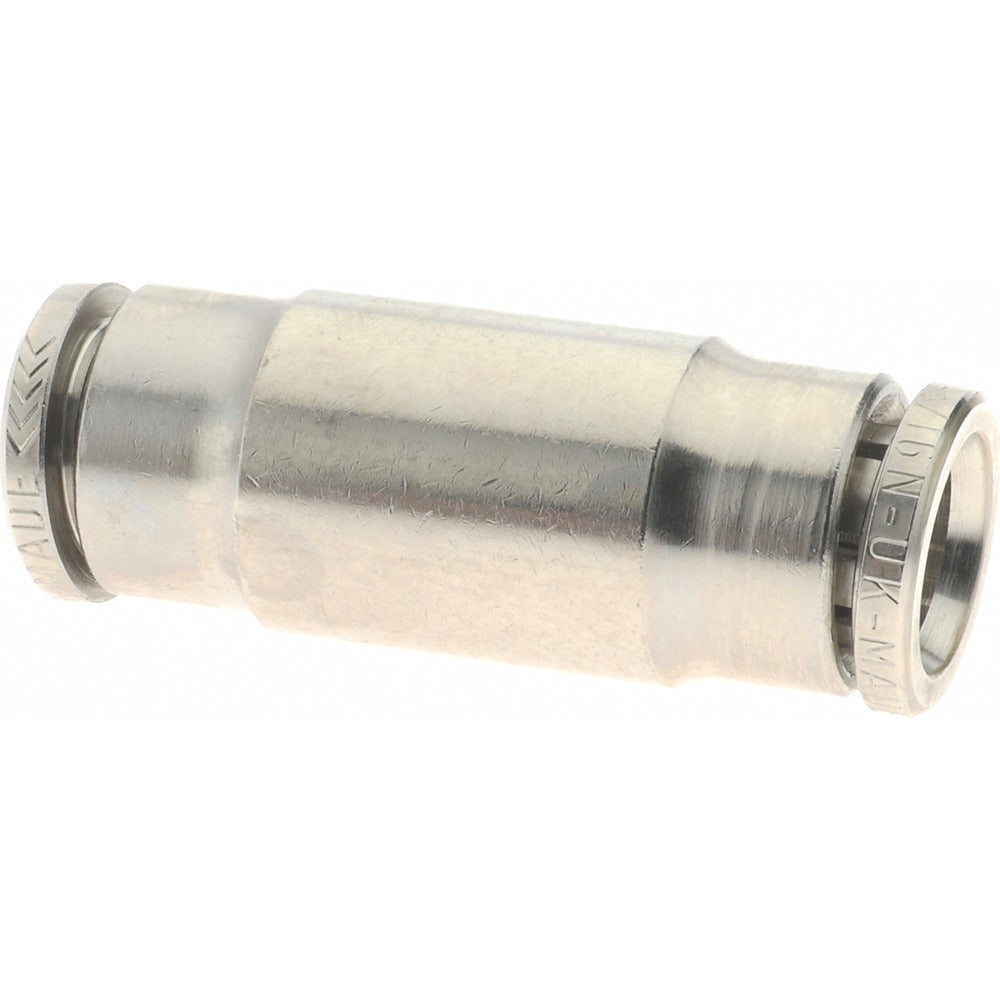

Norgren 100200800 Push-to-connect Straight Tube Fitting

Product Description

The NORGREN 100200800 is a push-to-connect straight tube-to-tube fitting designed for quick, tool-free connections in pneumatic and fluid-handling systems. Constructed from nickel-plated brass with a nitrile O-ring seal, this connector handles a maximum working pressure of 260 psi and an operating temperature range of 0 to 175 degrees F. It accepts tubing with an 8mm outside diameter on both ends and has an overall length of 37mm (approximately 1.46 inches). Licensed plumbers, HVAC technicians, and pneumatic system installers use this fitting where a reliable inline straight connection is required without threading or compression tooling.

This fitting is suited for residential and light commercial pneumatic lines, instrumentation tubing runs, and fluid-control plumbing where push-to-connect convenience reduces installation time. It is appropriate for use with compatible 8mm OD flexible or semi-rigid tubing in compressed-air, water, or low-pressure fluid applications that fall within the rated pressure and temperature limits. The nitrile O-ring makes it a practical choice for applications involving oils or mild hydraulic fluids within the fitting's rated range.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast assembly
• Rated to 260 psi maximum working pressure
• Nickel-plated brass body resists corrosion in demanding service environments
• Nitrile O-ring seal provides reliable performance with air, water, and oil-compatible media
• Operating range of 0 to 175 degrees F suits most indoor pneumatic and fluid-control installations
• Compact straight-through design for inline tube connections with minimal flow restriction

Compatibility

Designed as an OEM-style replacement or direct-install fitting for pneumatic and fluid-handling systems using 8mm outside diameter tubing that operate within the 260 psi pressure and 175 degrees F temperature ratings.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or pneumatic system technicians. Before servicing any pressurized line, depressurize and isolate the system completely. Ensure tubing is cut cleanly and squarely with no burrs before inserting into the fitting to achieve a proper seal. Consult applicable plumbing or pneumatic system codes for line pressure testing requirements after installation.
