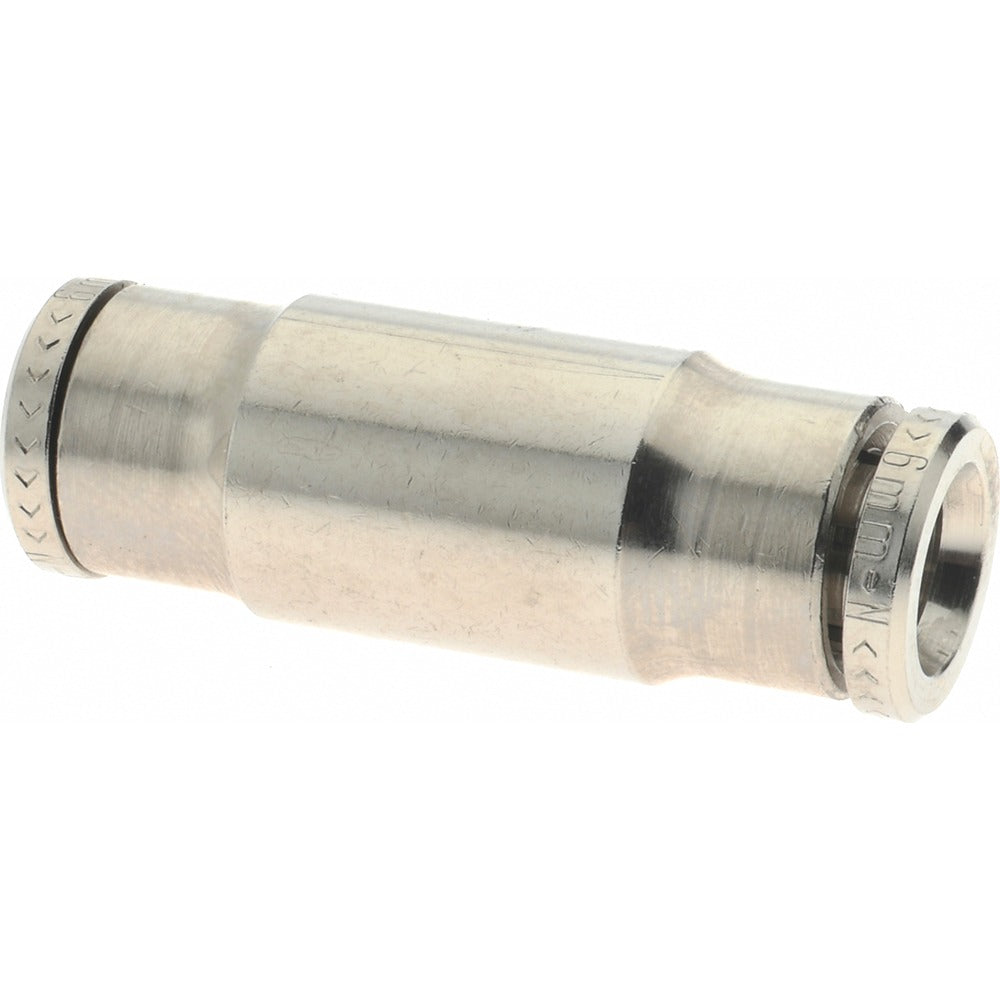

Norgren 100200600 Straight Push-to-connect Tube Connector

Product Description

The NORGREN 100200600 is a push-to-connect straight tube-to-tube connector fitting designed for quick, tool-free tubing connections in pneumatic and fluid-handling systems. Constructed from nickel-plated brass with a nitrile O-ring, it handles a maximum working pressure of 260 psi and an operating temperature range of 0 to 175 degrees F. The straight inline configuration joins two tube ends in a single, compact body measuring 34 millimeters overall length. Licensed plumbers, HVAC technicians, and industrial piping professionals install this fitting where reliable, leak-resistant push-in connections are required without threaded fittings or soldering.

This connector is suited for residential and light commercial pneumatic control lines, instrument air tubing, and low-pressure fluid distribution systems. It accepts 6mm outside diameter tubing and provides a secure grip via the internal collet and nitrile O-ring seal. Typical applications include control panel pneumatic circuits, HVAC pneumatic actuator supply lines, and compressed air distribution where fast assembly and serviceability are priorities. The nickel-plated brass body resists corrosion in moderate-humidity environments common to mechanical rooms and equipment enclosures.

Key Features

• Push-to-connect design allows tool-free tube insertion and quick-release removal
• Nickel-plated brass body provides corrosion resistance in mechanical and industrial environments
• Nitrile O-ring seal ensures leak-resistant performance across the rated pressure range
• Rated to 260 psi maximum working pressure
• Operates across a temperature range of 0 to 175 degrees F
• Compact straight profile with 34mm overall length minimizes space requirements

Compatibility

Designed as an OEM-style push-to-connect straight connector for 6mm outside diameter tubing in pneumatic and low-pressure fluid-handling systems.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or instrumentation technicians. Before servicing or replacing any fitting, depressurize the system completely and verify zero pressure at the connection point. Ensure tube ends are cut cleanly and squarely with a tube cutter and that all burrs are removed before insertion to maintain a proper O-ring seal. Follow applicable codes including ASME B31.1 or the relevant mechanical code for the jurisdiction when integrating push-to-connect fittings into pressurized systems.
