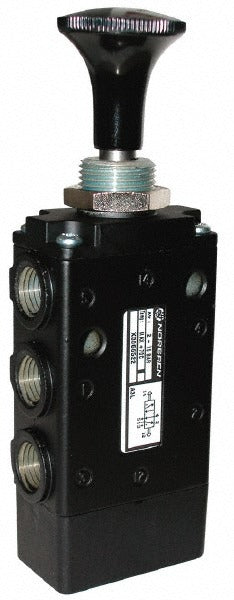

Norgren 03062522 Manually Operated Valve 3/8 Npt

Product Description

The NORGREN 03062522 is a manually operated directional control valve with a packed spool design and knob actuator. It controls airflow or fluid flow in pneumatic and fluid control systems, providing reliable on/off or directional switching through direct manual input. The valve features a 3/8 inch NPT outlet connection and a Cv rating of 0.98, indicating its flow capacity. With a two-position configuration, it is suited for applications requiring straightforward open or shutoff control. Licensed trades and industrial maintenance technicians are the primary installers for this type of valve in pneumatic panel and plumbing system assemblies.

This valve is designed for use in industrial and commercial pneumatic systems where manual control of flow is required without the need for electrical or automated actuation. Typical installations include compressed air distribution panels, test benches, and fluid circuit control stations. The knob actuator provides tactile, positive control and is suitable for environments where quick manual shutoff or directional selection is needed. Operating temperature range is 32 degrees F to 158 degrees F, making it appropriate for standard indoor industrial service conditions.

Key Features

• Packed spool valve design for reliable sealing and smooth actuation
• Knob actuator provides direct, tool-free manual operation
• 3/8 inch NPT outlet for standard threaded connections
• Two-position operation for straightforward open or shutoff control
• Cv rating of 0.98 indicating usable flow capacity for pneumatic circuits
• Operating temperature range of 32 degrees F to 158 degrees F

Compatibility

Designed as an OEM-style manually operated valve for pneumatic and fluid control systems using standard 3/8 inch NPT threaded connections.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or licensed plumber familiar with pneumatic and compressed air systems. Depressurize and isolate the system completely before removing or installing any valve. Use thread sealant appropriate for the working fluid and ensure NPT threads are engaged correctly to prevent leaks. Verify that the valve orientation and flow direction match the system design before returning the circuit to service.
