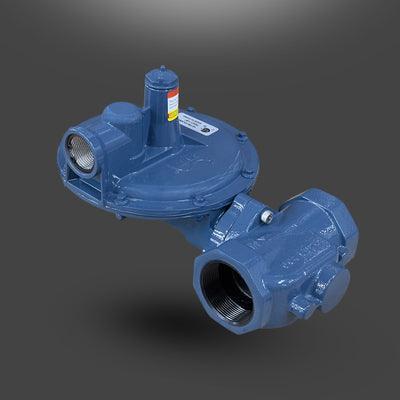

NORGAS NGR04-BEC Gas Regulator 1-1/2 inches 9 inches-14 inches WC

Product Description

The NORGAS NGR04-BEC gas regulator is designed for efficient pressure regulation in gas systems. This model is a reliable solution for residential, commercial, and industrial applications. It complies with ANSI Z21.80 standards suitable for Class I, Class II, Vent Limiting, and OPD applications. The regulator supports non-corrosive dry gases and is suitable for various environments.

• ANSI Z21.80 certification
• Includes a vent limiter option
• Equipped with internal relief for OPD usage

Product Highlights

Product Information

Standard Information

• Gas Types: Natural gas, LPG, non-corrosive dry gases
• Maximum Inlet Pressure: 10 to 125 psig per orifice

Technical Specifications

• Operating Temperature: -40F to +140F
• Size: 1-1/2 inches
• Water Column: 9 inches-14 inches
• Item Number: NGR04-BEC
• Orifice: 3/4 inches Tapered Orifice
• Spring: Black Spring 9-14 inches WC
• Type: Gas Regulator
• Valve Body: 1-1/2 inches NPT
