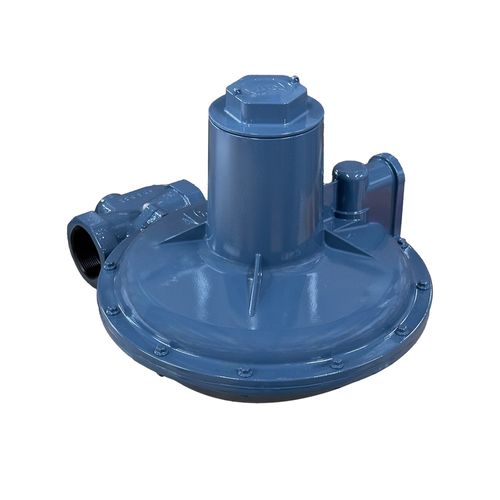

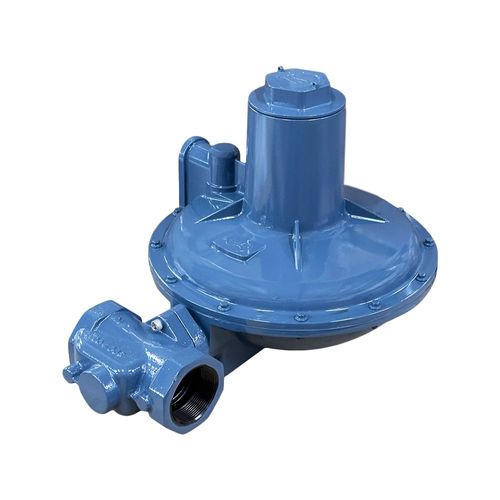

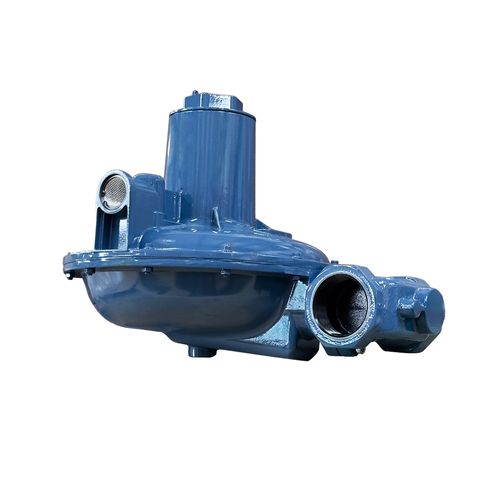

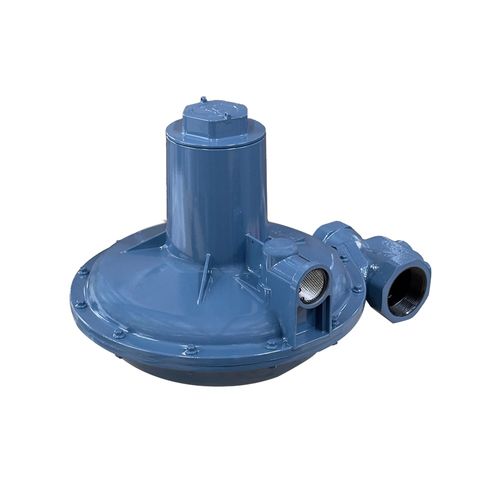

Norgas Controls NGR06-CCC Gas Regulator 2 inches 1/2 inches Orifice

Product Description

The NORGAS CONTROLS NGR06-CCC is a gas regulator with internal relief that provides consistent and controlled pressure. It meets ANSI Z21.80 for Class I, Class II, Vent Limiting, and OPD applications and is designed for use with non-corrosive dry gases. The NGR series helps minimize over pressurization downstream due to dirt or debris.

• ANSI Z21.80 certified
• Vent Limiter Option
• Internal Relief - OPD

Product Highlights

The NGR06-CCC gas regulators are spring loaded with internal relief to provide constant and controlled pressure.

Product Information

Standard Information

• Brand: NORGAS CONTROLS
• Manufacturer Part Number: NGR06-CCC

Technical Specifications

• Item Number: NGR06-CCC
• Brand: Norgas Controls
• Orifice: 1/2"
• Pressure: BLACK 5-13" WC
• Size: 2"
• Type: Gas Regulator
• Gas types: Natural gas, LPG, other non corrosive dry gases
• Maximum inlet pressure: 25 to 125 psig per orifice
• Maximum emergency inlet pressure: 175 psig
• Operating temperature: -40F to +140F
• Water Column ("WC): 5"-13"
• Valve Body: 2" NPT
• Spring: Black Spring 5-13"wc
