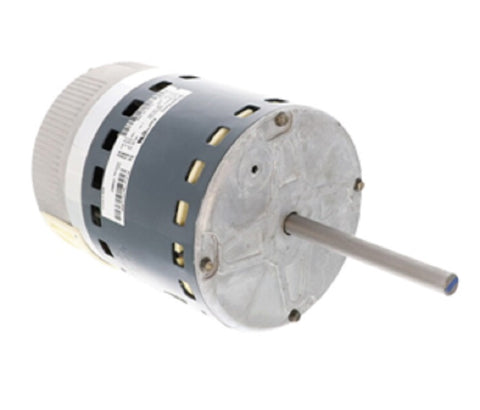

Nordyne Intertherm m0092604r Ecm Blower Motor 3/4 Hp

Product Description

The NORDYNE INTERTHERM m0092604r is a variable-speed ECM blower motor engineered for residential HVAC systems where precise airflow control is required. Rated at 3/4 HP and operating on 120/240V single-phase power, this brushless DC motor adjusts speed to maintain target CFM across varying static pressures. The ECM design reduces amperage draw and operating noise compared to standard PSC motors. Licensed HVAC technicians install this motor in gas furnaces and air handlers where it interfaces directly with the system integrated control (SIC) board, requiring correct programmable parameter recognition at startup. It serves as the direct OEM-replacement for legacy part numbers M0018204 and M0018204R.

This motor is suited for residential gas furnaces and air handlers operating under the Intertherm, Miller, and Nordyne brands. It maintains factory-specified static pressure and CFM delivery to prevent evaporator coil freeze-up and to keep heat exchanger temperature rise within safe operating limits. Typical installation scenarios include replacing failed or degraded PSC or ECM motors in existing forced-air systems where the original blower harness and control board are intact and serviceable.

Key Features

• Brushless DC ECM design reduces amperage draw compared to PSC motor alternatives
• Variable-speed operation maintains target CFM across changing system static pressures
• Rated 3/4 HP at 120/240V single-phase input
• Direct OEM-replacement for M0018204 and M0018204R
• Compatible with existing blower harness and SIC control board configurations
• Maintains factory CFM delivery to protect evaporator coil and heat exchanger performance

Compatibility

Direct OEM-style replacement for legacy part numbers M0018204 and M0018204R. Designed for use in Intertherm, Miller, and Nordyne residential gas furnaces and air handlers with compatible control board and harness configurations.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect all power to the unit at the disconnect box and confirm zero voltage with a meter before handling the motor or blower assembly. After physical installation, verify that the system integrated control board recognizes the motor and that programmable parameters are confirmed before returning the system to service. Do not run the motor outside of the blower housing, as proper airflow is required for motor cooling.

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 120/240 volts
• Phase: 1-phase
• Motor Type: ECM (Electronically Commutated Motor), brushless DC
• Speed Type: Variable speed

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: m0092604r
