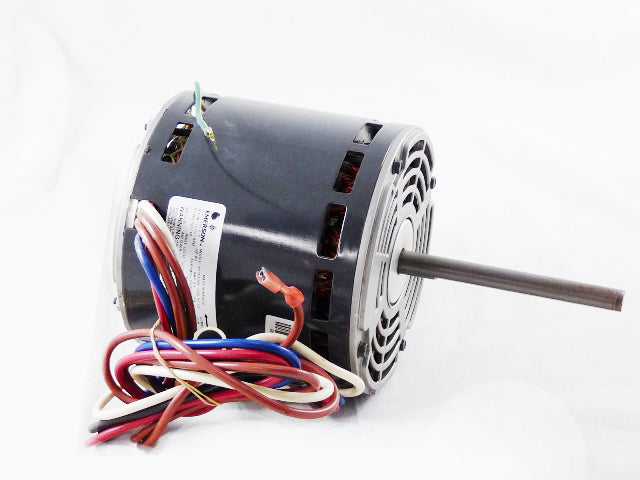

Nordyne Intertherm 914972 Condenser Fan Motor 1/2 Hp

Product Description

The NORDYNE INTERTHERM 914972 is a condenser fan motor designed for residential and light commercial HVAC systems. Rated at 1/2 horsepower and operating on 208/230 volt single-phase power, this motor runs at 1080 RPM and offers three speed settings to match airflow requirements across different system configurations. It is a direct replacement motor intended for use in condensing units and is typically installed by licensed HVAC technicians performing compressor section service or motor replacement work.

This motor is suited for outdoor condensing unit applications where reliable, continuous-duty fan operation is required. The three-speed capability allows the motor to be matched to the specific airflow demand of the condenser coil, making it adaptable across multiple unit configurations. It is commonly installed during routine maintenance calls or as part of a compressor section rebuild on residential split systems.

Key Features

• 1/2 HP output for dependable condenser fan performance
• 208/230 volt single-phase operation for broad residential and light commercial compatibility
• 1080 RPM operating speed suited for standard condenser fan blade configurations
• Three-speed winding allows field selection of optimal airflow setting
• OEM-style replacement designed for NORDYNE INTERTHERM condensing units

Compatibility

Designed as an OEM-style replacement condenser fan motor for NORDYNE INTERTHERM condensing units requiring a 208/230 volt, single-phase, 1/2 HP, 1080 RPM, 3-speed motor. Verify electrical and mounting specifications against the original unit nameplate before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling any wiring. Confirm that the replacement motor rotation direction, shaft size, and mounting configuration match the original before final installation. Always follow NEC requirements and local codes when reconnecting electrical leads.

Technical Specifications

• Voltage: 208/230 volts
• Phase: Single phase
• Horsepower: 1/2 HP
• Speed: 1080 RPM
• Number of Speeds: 3

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: 914972
