Nordyne Intertherm 626292 Fan Limit Switch Replaces 6262920

Product Description

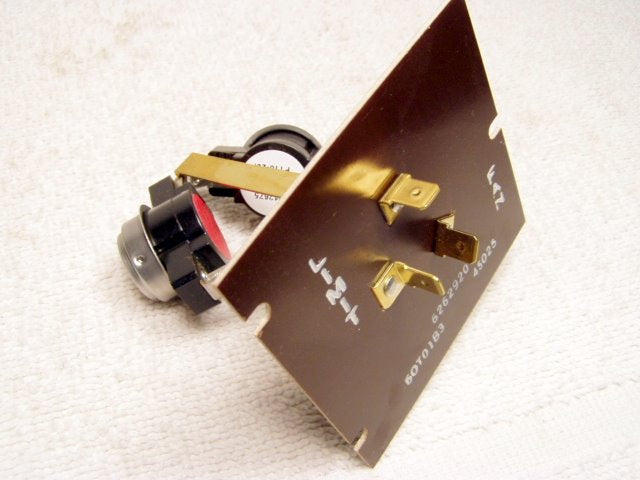

The NORDYNE INTERTHERM 626292 is a shop-built replacement fan limit switch designed for use in gas furnaces. The fan limit switch controls when the blower motor starts and stops in relation to heat exchanger temperature, and it shuts the system down if temperatures exceed a safe threshold. This assembly carries a fan-on setting of F110-20F and a limit setting of L130-15F. It is installed by licensed HVAC technicians as part of routine furnace repair or component replacement work.

This part fits residential gas furnace applications where the original fan limit control has failed or requires replacement. The base plate mounts with 3 terminals and measures 3 inches by 3.125 inches. Because the original OEM part is no longer available, this unit is supplied as a shop-fabricated replacement assembly built to match the original function and mounting configuration. Technicians replacing failed limit controls during heating season service calls or equipment refurbishment will find this a direct substitute.

Key Features

• Fan-on setting: F110-20F for proper blower start timing
• Limit setting: L130-15F for high-temperature cutout protection
• 3-terminal base plate configuration for direct wiring hookup
• Base plate dimensions: 3 inches by 3.125 inches
• Shop-fabricated replacement for discontinued OEM part 6262920

Compatibility

Supplied as a replacement for OEM part number 6262920. Designed as a drop-in replacement for residential gas furnace fan limit control applications where the original NORDYNE INTERTHERM part is no longer available from the manufacturer.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect all power to the furnace and shut off the gas supply before removing the existing fan limit switch. Verify that terminal count and base plate dimensions match the existing mounting location before installation. Work should comply with applicable local mechanical codes and the furnace manufacturer's service documentation.

Technical Specifications

• Fan-On Setting: F110-20F
• Limit Setting: L130-15F
• Base Plate Dimensions: 3 inches x 3.125 inches
• Terminal Count: 3
• Replaces OEM Part: 6262920

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: 626292
