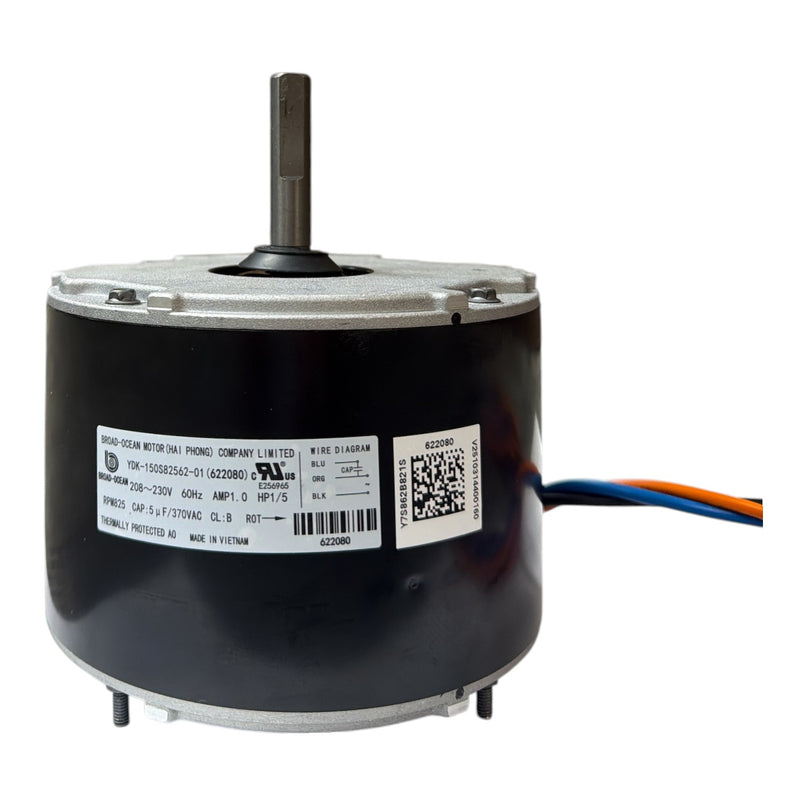

Nordyne Intertherm 622080 Condenser Fan Motor 1/5 Hp 825 Rpm 208-230V Replacement

Product Description

The Nordyne Intertherm 622080 is an OEM replacement condenser fan motor built for HVAC technicians and service professionals working on Nordyne-brand air conditioning and heat pump systems. This motor is rated at 1/5 HP and spins at 825 RPM, making it a direct-fit solution for units that originally carried the obsolete part number 622080. The replacement is also cross-referenced to part number 1051422, so technicians sourcing this motor by either number can be confident they are getting the correct unit. Operating on 208-230 volts at 50/60 Hz, this motor is compatible with both standard residential and light commercial power supplies. It draws 1.0 amp and is rated Class B insulation, which means it can handle the heat cycles typical in condenser section service. The motor features clockwise rotation when viewed from the lead end, designated as CWLE, and operates at a single speed. Proper rotation direction is critical in condenser fan applications because running a fan motor in the wrong direction can reduce airflow efficiency and lead to system overheating or premature compressor failure. This motor fits several Nordyne family brands, including Nortek, Frigidaire, Gibson, Intertherm, Miller, Maytag, Broan, Westinghouse, Tappan, Nutone, and Revolve. HVAC technicians replacing a failed condenser fan motor on any of these brands should verify the original part number before installation. Using an OEM-spec motor ensures the replacement meets the same performance standards as the factory-installed unit, reducing callbacks and warranty concerns. This is a new unit, not rebuilt or refurbished.

• OEM replacement for obsolete part 622080, also cross-referenced as part 1051422
• Rated 1/5 HP at 825 RPM with CWLE rotation for correct condenser fan airflow direction
• Compatible with multiple Nordyne family brands including Frigidaire, Gibson, Intertherm, and more

Product Highlights

The Nordyne Intertherm 622080 condenser fan motor is a direct OEM replacement for obsolete and failed motors across a wide range of Nordyne-brand HVAC systems. Its 208-230V, 1/5 HP rating and Class B insulation make it a reliable, drop-in solution for residential and light commercial service calls.

Product Information

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: 622080

Technical Specifications

• Horsepower: 1/5 HP
• Speed: 825 RPM
• Voltage: 208-230 Volts
• Frequency: 50/60 Hz
• Amperage: 1.0 Amp
• Insulation Class: Class B
• Rotation: CWLE (Clockwise Lead End)
• Number of Speeds: 1
