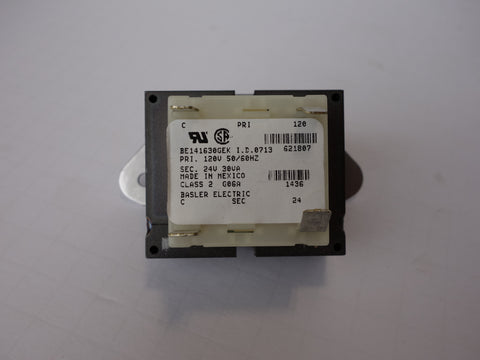

Nordyne Intertherm 621807 Hvac Control Transformer 120V Input 24V Output 30VA 50/60hz Replacement BE141630GEK

Product Description

The Nordyne Intertherm 621807 is a control circuit transformer designed for use in residential and light commercial HVAC systems. It steps down line voltage from 120 volts AC to 24 volts AC, which is the standard low-voltage signal used to power thermostats, control boards, relay coils, and other HVAC control components. This transformer carries a 30VA power rating and is compatible with both 50Hz and 60Hz electrical systems, making it suitable for a wide range of installations across North America. It is a direct replacement for OEM part number BE141630GEK and is sourced from Nordyne Intertherm, a well-known manufacturer of heating and cooling equipment and components.

HVAC technicians frequently need to replace control transformers during service calls. A failed transformer is a common cause of a thermostat losing power, a system not responding to calls for heat or cooling, or a control board failing to energize. The 621807 delivers a reliable 24-volt secondary output, which feeds the low-voltage control circuit that manages virtually every function in a forced-air heating or cooling system. The 30VA capacity is sufficient for most residential gas furnaces, heat pumps, and air conditioning units that use standard 24-volt control wiring. Installing this transformer is a straightforward repair for any qualified HVAC technician familiar with low-voltage control circuits. It fits into standard transformer mounting positions and is wired directly into the unit's primary and secondary circuits. Using a factory-spec replacement part like the 621807 helps ensure that the control circuit operates within the original design parameters of the equipment. This part is also referenced as BE141630GEK, so technicians cross-referencing the older part number can confirm compatibility.

• Steps down 120V AC input to 24V AC output for HVAC low-voltage control circuits
• 30VA power rating supports thermostats, relay coils, and control boards in residential systems
• Compatible with 50Hz and 60Hz systems and replaces OEM part BE141630GEK

Product Highlights

The Nordyne Intertherm 621807 is a factory-spec 120V to 24V control transformer rated at 30VA, built to restore low-voltage control power in Nordyne and Intertherm HVAC equipment. It is a direct drop-in replacement for BE141630GEK.

Product Information

Standard Information

• Brand: NORDYNE INTERTHERM
• Manufacturer Part Number: 621807

Technical Specifications

• Input Voltage: 120V AC
• Output Voltage: 24V AC
• Power Rating: 30VA
• Frequency: 50/60Hz
• Replacement Part Number: BE141630GEK
