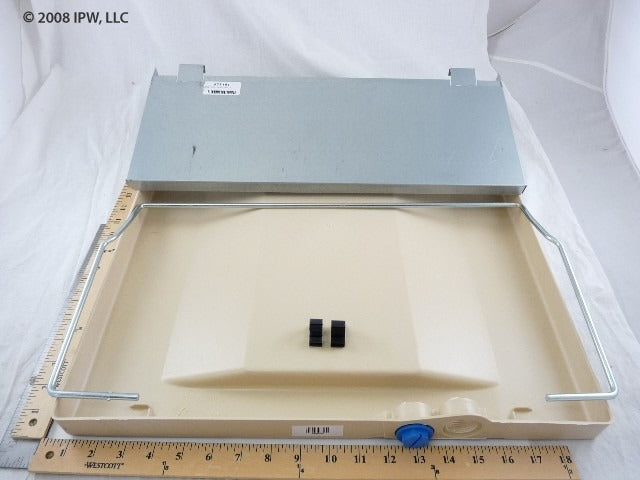

Nordyne 919318 Horizontal Drain Pan Kit

Product Description

The NORDYNE 919318 is a horizontal drain pan kit designed to collect and redirect condensate from air handling equipment installed in a horizontal orientation. Drain pans are a code-required component in many residential and light commercial HVAC installations, positioned beneath the evaporator coil to catch moisture and prevent water damage to surrounding structures. This kit provides the necessary pan and associated hardware for proper horizontal installation, and is typically installed by a licensed HVAC technician during system service or new equipment setup.

This drain pan kit is suited for horizontal HVAC equipment installations where the air handler or coil section is oriented on its side rather than in an upright position. Horizontal installs are common in attic spaces, crawlspaces, and closet applications where vertical clearance is limited. The kit ensures condensate is captured and routed to an appropriate drain line in compliance with local mechanical codes.

Key Features

• Designed for horizontal equipment orientation where a secondary or primary drain pan is required
• Kit format includes the components needed for a complete drain pan installation
• Supports code-compliance requirements for condensate containment in horizontal HVAC applications
• OEM-sourced component from NORDYNE for reliable fitment with compatible equipment

Compatibility

Designed as an OEM-style replacement horizontal drain pan kit for NORDYNE air handling equipment installed in horizontal configurations.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler before beginning any service work. Ensure the drain pan is properly sloped toward the drain outlet and that the condensate line is clear and unobstructed before returning the system to operation. Refer to local mechanical codes for secondary drain pan and overflow requirements specific to your jurisdiction.
