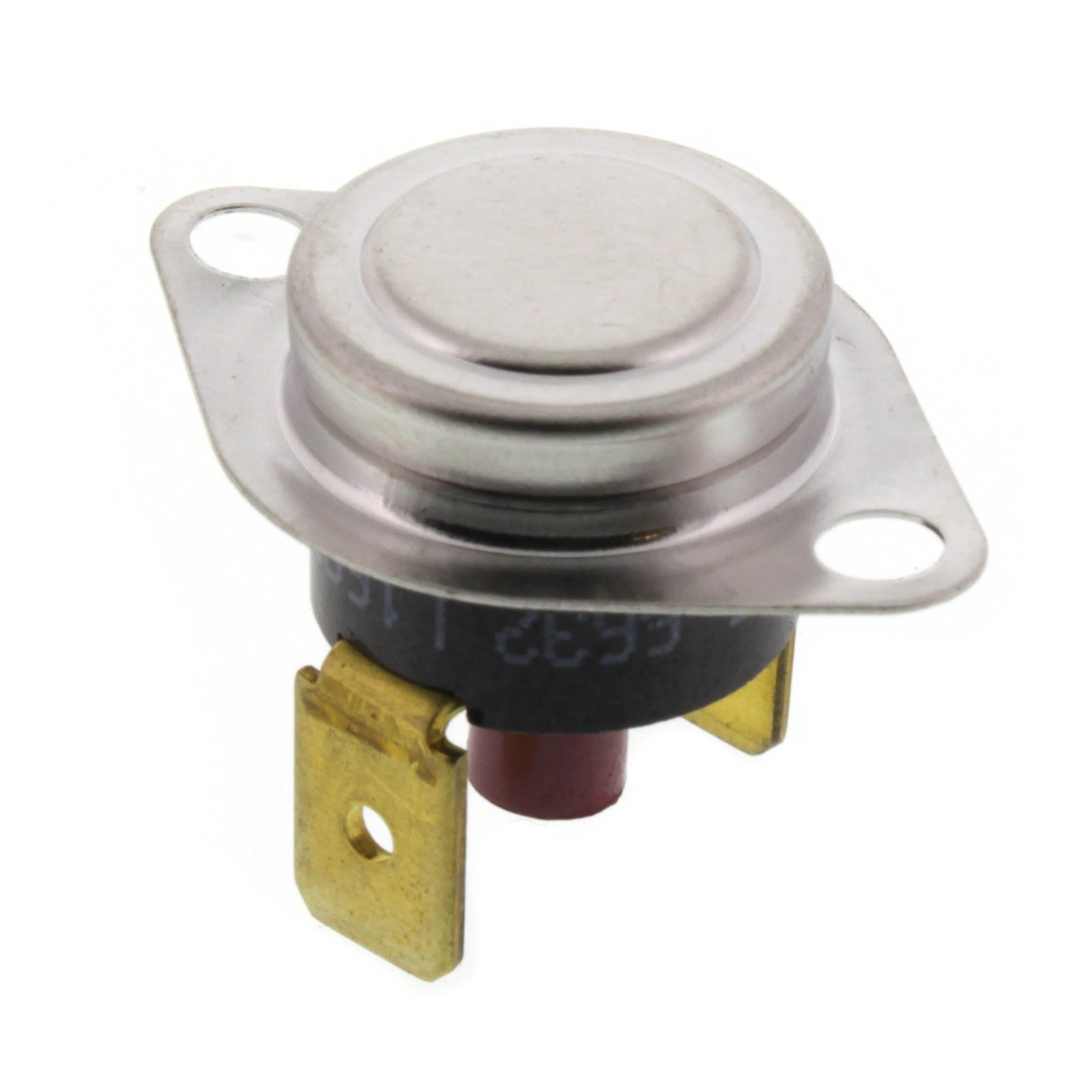

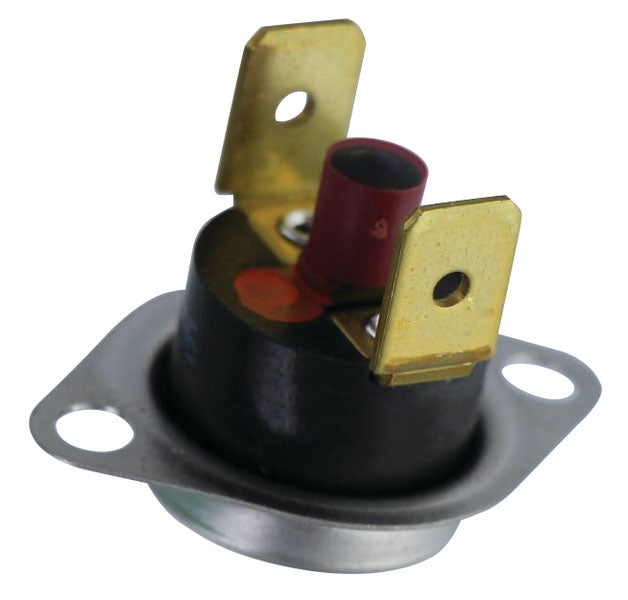

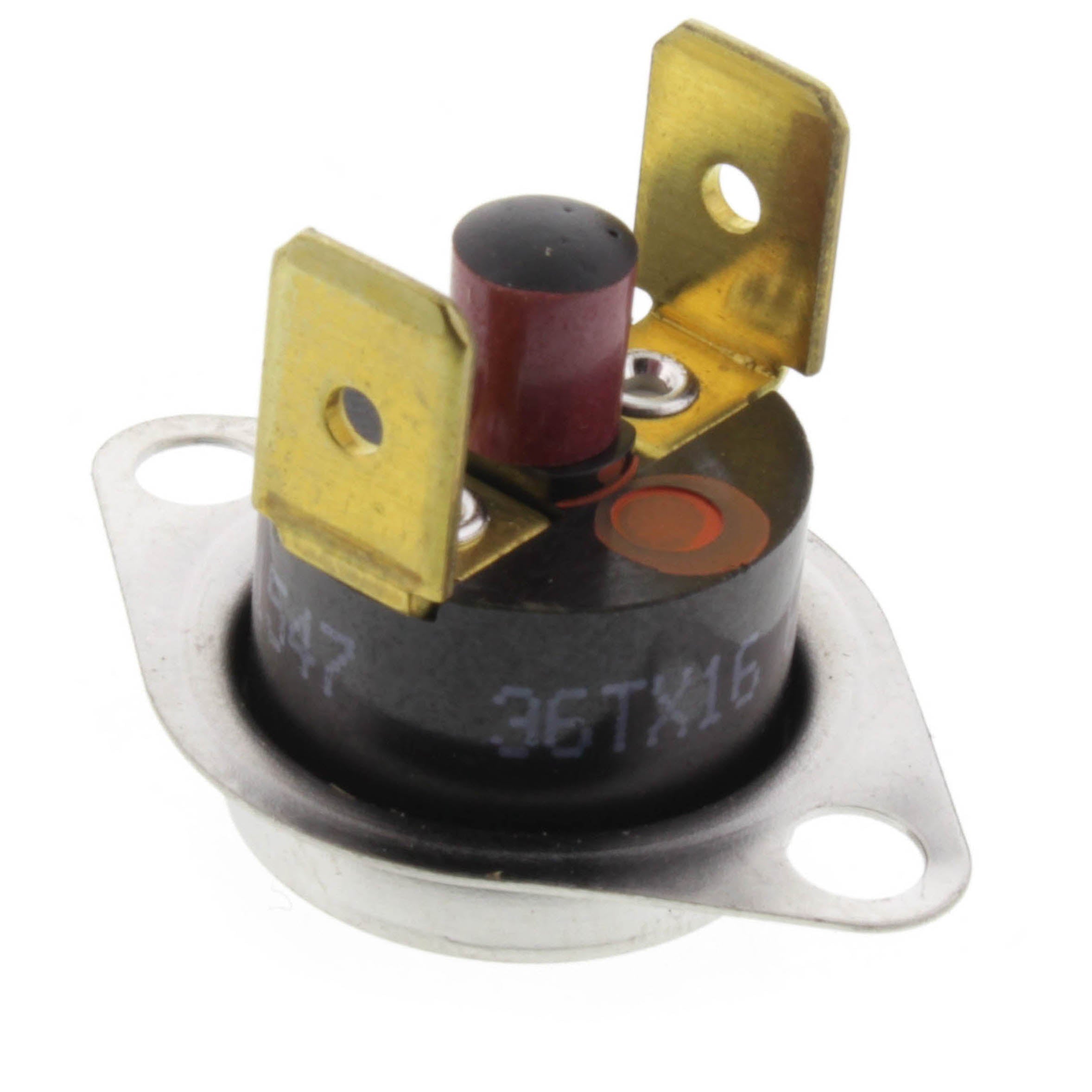

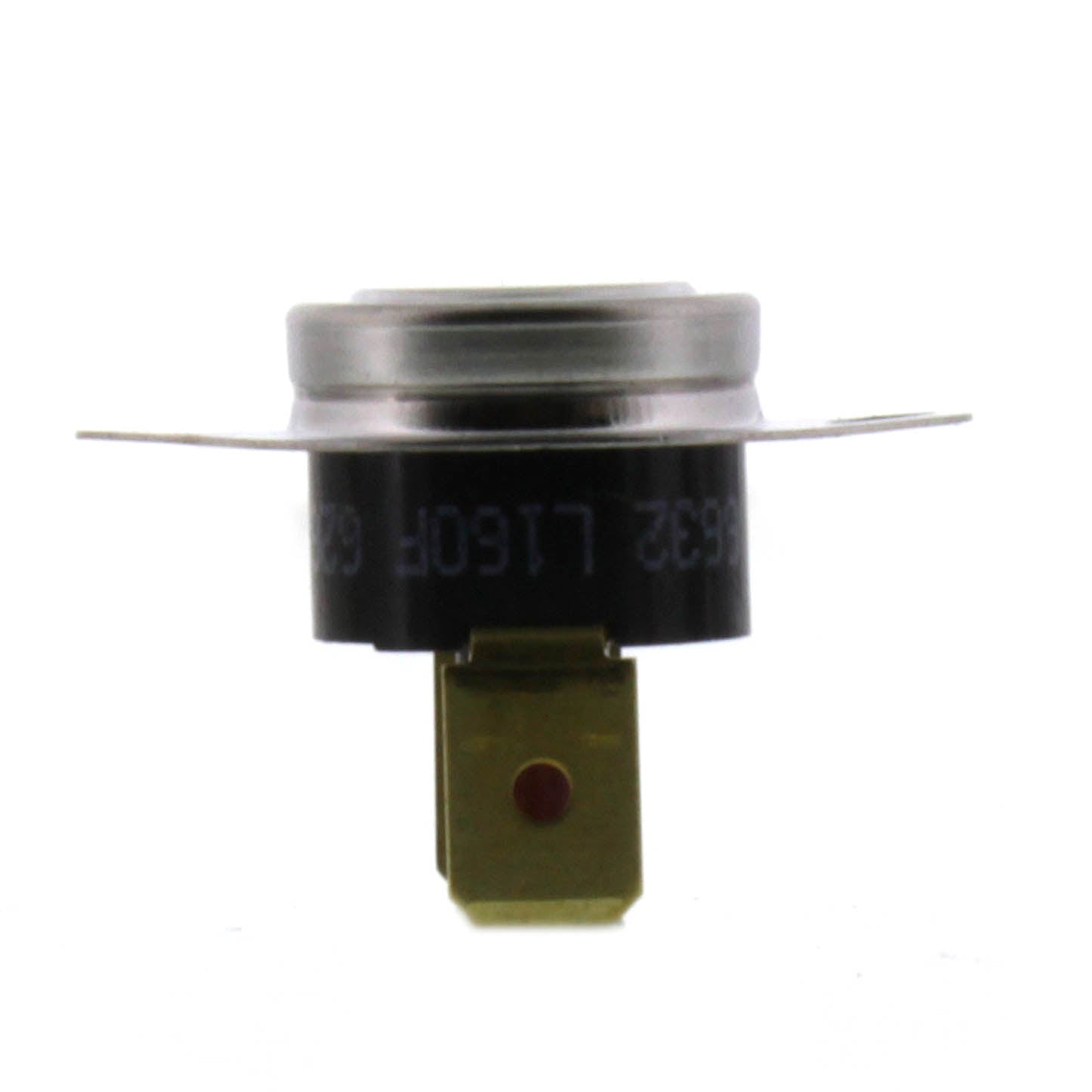

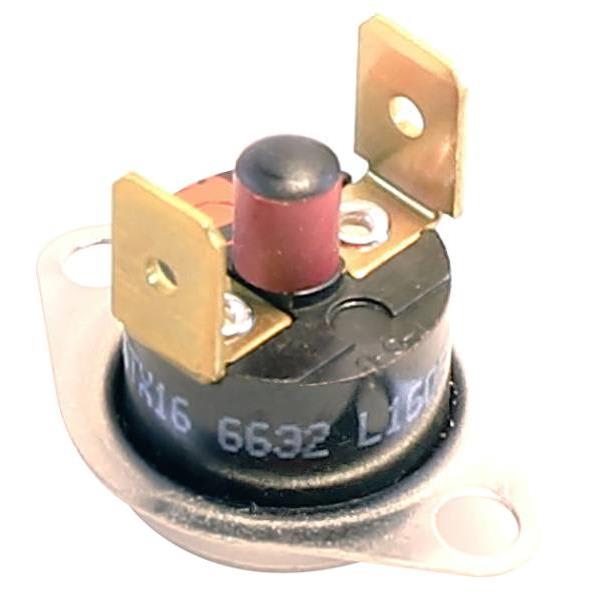

Nordyne 626461R 160F CO M/R Limit Switch

Product Description

The NORDYNE 626461R is a 160F CO M/R Limit Switch. This limit switch is a component of a forced air furnace that turns on the furnace blower once the desired heat is reached. It opens at 160 degrees Fahrenheit and includes a manual reset. It regulates when your home is heated by gauging the temperature of the surrounding air.

• Manual Reset
• Safety Limit
• Temperature Limit Switch

Product Highlights

The NORDYNE 626461R limit switch is for use with G6RC, G6RD, G6TC and G6TL Series Furnaces. It features fixed programming switching action.

Product Information

Standard Information

• Brand: NORDYNE
• Manufacturer Part Number: 626461R
• Country of Origin: United States

Technical Specifications

• Manufacturer: Nordyne
• Product Item: 626461R
• Length (in): 1.45
• Width (in): 2.3
• Height (in): 1.35
• Type: Manual Reset
• Temperature Range: 160 deg F Open
• Suitable For Use With: G6RC, G6RD, G6TC and G6TL Series Furnace
• Product Type: Limit Switch
• Country of Origin (subject to change): United States
• HVAC Equipment Type: Limit Control
• Mounting Type: Surface Mount
• Package Quantity: 1
• Reset Type: Manual
• Switch Opens @ (F): 160 F
• Opening Temperature: 160 deg
• Switching Action: Manual Reset, Fixed Programming
