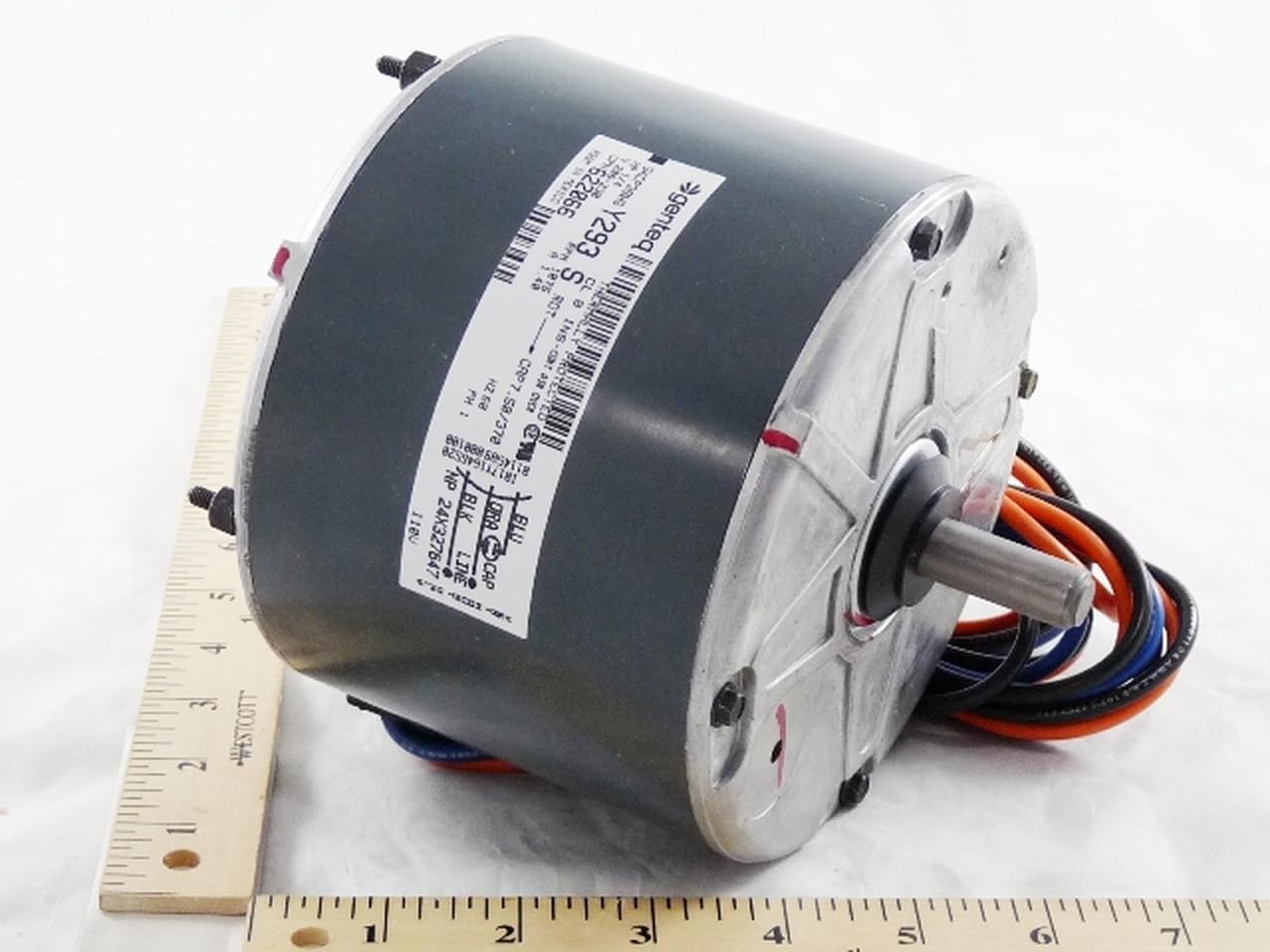

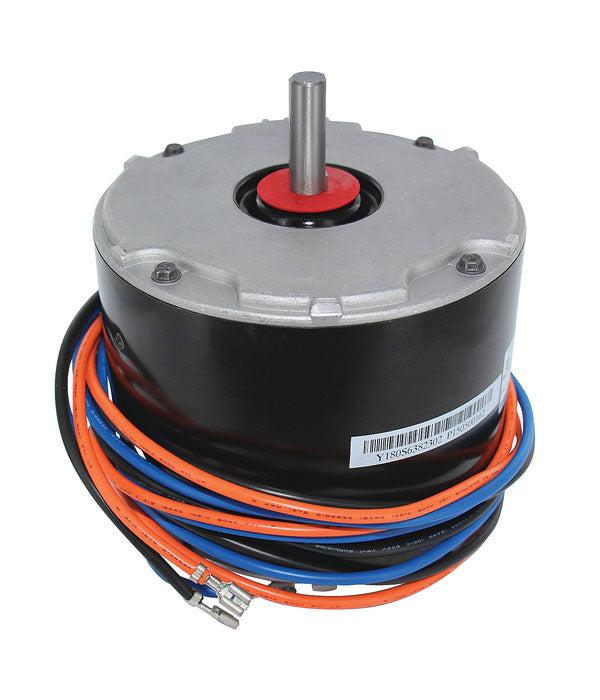

Nordyne 622066 208-230v 1/4hp 1075rpm Motor

Product Description

The Nordyne 622066 is a 208-230v 1/4hp 1075rpm motor engineered for industrial and commercial applications. This motor delivers reliable operation and long-lasting durability. It features a rolled steel frame and aluminum flange, providing exceptional strength and resistance to corrosion. Operates on a voltage range of 208-230.

• High-performance motor
• Engineered for industrial and commercial applications
• Reliable operation

Product Highlights

This Nordyne motor is a cost-effective solution for powering equipment in manufacturing, conveying, material handling, processing, and HVAC systems.

Product Information

Standard Information

• Brand: NORDYNE
• Manufacturer Part Number: 622066
• Country of Origin: US

Technical Specifications

• Brand: Nordyne
• MPN: 622066
• Product Type: ELECTRIC_MOTOR
• HP: 1/4
• Manufacturer: Nordyne LLC
• Speed: 1075 RPM
• Voltage: 230 Volts
• Horsepower: 0.25 Horsepower
• UPC: Does not apply
• Condition: New
• Duty Type: Continuous
• Frequency Rating: 60 Hz
• Number of Poles: 6
• Number of Speeds: 1
• Phase: 1 ph
• Rotation Type: Clockwise Lead End
• Voltage Rating: 208 to 230 VAC
• Compatible with: CSA4BD042KB, CSA4BD048KB, CSA4BD060KB, CSA4BE036KA, CSA4BE042K, CSA4BE042KA, CSA4BE048K, CSA4BE048KA, CSA4BE060K, CSA6BF042K, CSH4BD042K, CSH4BD048K, CSH4BD060K, CSH4BE042KA, CSH4BE048K, CSH4BE048KA, CSH4BE060K, CSH4BE060KA, DF6SF-X60K120C, DF6SF-X60K120CA, DS4BD-042KA, DS4BD-042KB, DS4BD-048KA, DS4BD-048KB, DS4BD-048KX, DS4BD-060KA, DS4BD-060KB, DS4BE-036KA, DS4BE-042K, DS4BE-042KA, DS4BE-048K, DS4BE-048KA, DS4BE-060K, DS4QD-042KA, DS4QD-042KB, DS4QD-042KC, DS4QD-048KA, DS4QD-048KB, DS4QD-060KA, DS4QD-060KB, DS5BD-042KA, DS5BD-048KA, DS5BD-060KA, DS5QD-042KA, DS5QD-048KA, DS5QD-060KA, DT4BD-042K, DT4BD-048K, DT4BD-060K, DT4BE-048K, DT4BE-060K, DT4QD-042K, DT4QD-048K, DT4QD-060K, DT5BD-048K, DT5BD-060K, DT5QD-048K, DT5QD-060K, ES4BD-042KA, ES4BD-042KB, ES4BD-048KA, ES4BD-048KB, ES4BD-060KA, ES4BD-060KB, ES4BE-036KA, ES4BE-042K, ES4BE-042KA, ES4BE-048K, ES4BE-048KA, ES4BE-060K, ES5BD-042KA, ES5BD-048KA, ES5BD-060KA, ES6BF-042K, ET4BD-042K, ET4BD-048K, ET4BD-060K, ET4BE-042KA, ET4BE-048K, ET4BE-048KA, ET4BE-060K, ET4BE-060KA, ET5BD-048K, ET5BD-060K, FS3BD-060K, FS4BD-042KA, FS4BD-042KB, FS4BD-048KA, FS4BD-048KB, FS4BD-060KA, FS4BD-060KB, FS4BE-036KA, FS4BE-042K, FS4BE-042KA, FS4BE-048K, FS4BE-048KA, FS4BE-060K, FS5BD-042K, FS5BD-042KA, FS5BD-048K, FS5BD-048KA, FS5BD-060K, FS5BD-060KA, FS5BU-042K, FS5BU-048K, FS5BU-060K, FT4BD-042K, FT4BD-048K, FT4BD-060K, FT4BE-042KA, FT4BE-048K, FT4BE-048KA, FT4BE-060K, FT4BE-060KA, FT5BD-048K, FT5BD-060K, FT5BU-060K, GP5RD-048KA, GP7RD-042K, GP7RD-042KA, GP7RD-048K, GP7RD-048KA, GP7RD-060K, GP7RD-060KA, GQ5RD-048KA, GQ7RD-042K, GQ7RD-048K, GR8GD-030K045C, GR8GD-030K045X, GR8GD-030K072C, GR8GD-036K072C, GR8GD-036K072X, GR8GD-036K096C, GR8GD-042K072C, GR8GD-042K096C, GR8GD-042K096X, GR8GD-048K096C, GR8GD-048K096X, GR8GD-048K120C, GS3BC-048CA, GS3BC-060CA, GT3BC-060K, GT5BU-060K, HRG1342S1E, HRG1348S1E, HRG1360S1E, HRG1442S1F, HRG1448S1E, HRG1448S1F, HRG1460S1E, HRG1460S1F, HRN1348S1E, HRN1360S1E, JS4BD-042KA, JS4BD-042KB, JS4BD-048CA, JS4BD-048CB, JS4BD-048KA, JS4BD-048KB, JS4BD-060CA, JS4BD-060CB, JS4BD-060KA, JS4BD-060KB, JS4BE-036KA, JS4BE-042K, JS4BE-042KA, JS4BE-048K, JS4BE-048KA, JS4BE-060K, JS5BD-042K, JS5BD-042KA, JS5BD-048K, JS5BD-048KA, JS5BD-060K, JS5BD-060KA, JS5BU-042K, JS5BU-048K, JS5BU-060K, JS6BD-042K, JS6BD-048K, JS6BD-060K, JS6BF-042K, JT4BD-042K, JT4BD-048C, JT4BD-048K, JT4BD-060C, JT4BD-060K, JT4BE-042KA, JT4BE-048K, JT4BE-048KA, JT4BE-060K, JT4BE-060KA, JT5BD-048K, JT5BD-060K, JT5BU-048KA, JT5BU-060K, JT5BU-060KA, MS4BD-042KA, MS4BD-042KB, MS4BD-048KA, MS4BD-048KB, MS4BD-060KA, MS4BD-060KB, MS4QD-042KA, MS4QD-042KB, MS4QD-048KA, MS4QD-048KB, MS5BD-042K, MS5BD-042KA, MS5BD-042KMA, MS5BD-048K, MS5BD-048KA, MS5BD-048KMA, MS5BD-060K, MS5BD-060KA, MS5BD-060KMA, MS5QD-042K, MS5QD-042KA, MS5QD-042KMA, MS5QD-048K, MS5QD-048KA, MS5QD-048KMA, MS5QD-060K, MS5QD-060KA, MS5QD-060KMA, MSA4BD042KA, MSA4BD042KB, MSA4BD048KA, MSA4BD048KB, MSA4BD060KA, MSA4BD060KB, MSA4BE036KA, MSA4BE042K, MSA4BE042KA, MSA4BE048K, MSA4BE048KA, MSA4BE060K, MSA6BF042K, MSH4BD042K, MSH4BD048K, MSH4BD060K, MSH4BE042KA, MSH4BE048K, MSH4BE048KA, MSH4BE060K, MSH4BE060KA, MT4BD-042K, MT4BD-048K, MT4BD-060K, MT4QD-042K, MT4QD-048K, MT4QD-060K, MT5BD-048K, MT5BD-060K, MT5BU-060K, MT5QD-048K, MT5QD-060K, NS4BD-042KA, NS4BD-042KB, NS4BD-048KA, NS4BD-048KB, NS4BD-060KA, NS4BD-060KB, NS5BD-042KA, NS5BD-048KA, NS5BD-060KA, NS6BD-042K, NS6BD-042KA, NS6BD-048K, NS6BD-048KA, NS6BD-060K, NS6BD-060KA, NS6QD-042K, NS6QD-042KA, NS6QD-048K, NS6QD-048KA, NS6QD-060K, NS6QD-060KA, NT4BD-042K, NT4BD-048K, NT4BD-060K, NT4BE-042K, NT4BE-048K, NT4BE-060K, NT4QD-042K, NT4QD-048K, NT4QD-060K, NT5BD-048K, NT5BD-060K, P5RD-048KA, P7RD-042K, P7RD-042KA, P7RD-048K, P7RD-048KA, P7RD-060K, P7RD-060KA, PDF2SFX60K120C, PDF2SFX60K120CA, PPA2RD048KA, PPA3RD042K, PPA3RD042KA, PPA3RD048K, PPA3RD048KA, PPA3RD060K, PPA3RD060KA, PPG2GF-X36K100X, PPG2GF-X48K120X, PPG2GF-X60K120X, PPG2GFX36K100XA, PPG2GFX48K120XA, PPG2GFX60K120XA, PPG3GD030K045C, PPG3GD030K045X, PPG3GD030K072C, PPG3GD036K072C, PPG3GD036K072X, PPG3GD036K096C, PPG3GD042K072C, PPG3GD042K096C, PPG3GD042K096X, PPG3GD048K096C, PPG3GD048K096X, PPG3GD048K120C, PPH2RD048KA, PPH3RD042K, PPH3RD048K, PSA2BD042K, PSA2BD048K, PSA2BD060K, PSA4BD042KA, PSA4BD042KB, PSA4BD048KA, PSA4BD048KB, PSA4BD060KA, PSA4BD060KB, PSA4BE036KA, PSA4BE042K, PSA4BE042KA, PSA4BE048K, PSA4BE048KA, PSA4BE060K, PSH2BD048K, PSH2BD060K, PSH2BU060K, PSH4BD042K, PSH4BD048K, PSH4BD060K, PSH4BE042KA, PSH4BE048K, PSH4BE048KA, PSH4BE060K, PSH4BE060KA, Q5RD-048KA, Q7RD-042K, Q7RD-048K, R6GF-X36K100X, R6GF-X36K100XA, R6GF-X48K120X, R6GF-X48K120XA, R6GF-X60K120X, R6GF-X60K120XA, R8GD-030K045C, R8GD-030K045X, R8GD-030K072C, R8GD-036K072C, R8GD-036K072X, R8GD-036K096C, R8GD-042K072C, R8GD-042K096C, R8GD-042K096X, R8GD-048K096C, R8GD-048K096X, R8GD-048K120C, RSG1342S1E, RSG1348S1E, RSG1360S1E, RSG1436S1E, RSG1442S1E, RSG1448S1E, RSG1460S1E, RSG1642S1E, RSN1342S1E, S3QC-048KA, S4BD-042KA, S4BD-048KA, S4BD-060KA, S4BE-042K, S4BE-048K, S4BE-060K, S5BD-042K, S5BD-042KA, S5BD-042KMA, S5BD-048K, S5BD-048KA, S5BD-048KMA, S5BD-060K, S5BD-060KA, S5BD-060KMA, S5QD-042K, S5QD-042KA, S5QD-042KMA, S5QD-048K, S5QD-048KA, S5QD-048KMA, S5QD-060K, S5QD-060KA, S5QD-060KMA, SA2BD042K, SA2BD048K, SA2BD060K, T3BC-060K, T4BD-042K, T4BD-048K, T4BD-060K, T4BE-048K, T4BE-060K, T5BD-048K, T5BD-060K, T5BU-060K, T5QD-048K, T5QD-060K, TARG42001E, TARG48001E, TARG60001E, TGRG30451E, TGRG30721E, TGRG36721E, TGRG36961E, TGRG42961E, TGRG48961E, TPRG42001E, TPRG48001E, VP7RD-042K, VP7RD-042KA, VP7RD-048K, VP7RD-048KA, VP7RD-060K, VP7RD-060KA, VQ7RD-042K, VQ7RD-048K, VR8GD-030K045C, VR8GD-030K045X, VR8GD-030K072C, VR8GD-036K072C, VR8GD-036K072X, VR8GD-036K096C, VR8GD-042K072C, VR8GD-042K096C, VR8GD-042K096X, VR8GD-048K096C, VR8GD-048K096X, VR8GD-048K120C, VS4BD-042KB, VS4BD-048KB, VS4BD-060KB, VS4BE-036KA, VS4BE-042KA, VS4BE-048KA, VS4BE-060K, VS5BD-042KA, VS5BD-042KAMIN, VS5BD-048KA, VS5BD-048KAMIN, VS5BD-060KA, VS5BD-060KAMIN, VT4BD-042K, VT4BD-048K, VT4BD-060K, VT4BE-042KA, VT4BE-048K, VT4BE-048KA, VT4BE-060K, VT4BE-060KA, VT5BD-048K, VT5BD-048KMIN, VT5BD-060K, VT5BD-060KMIN, WS4BD-042KB, WS4BD-048KB, WS4BD-060KB
• Country of Origin (subject to change): United States
• Voltage [Features]: 230v, 208v
