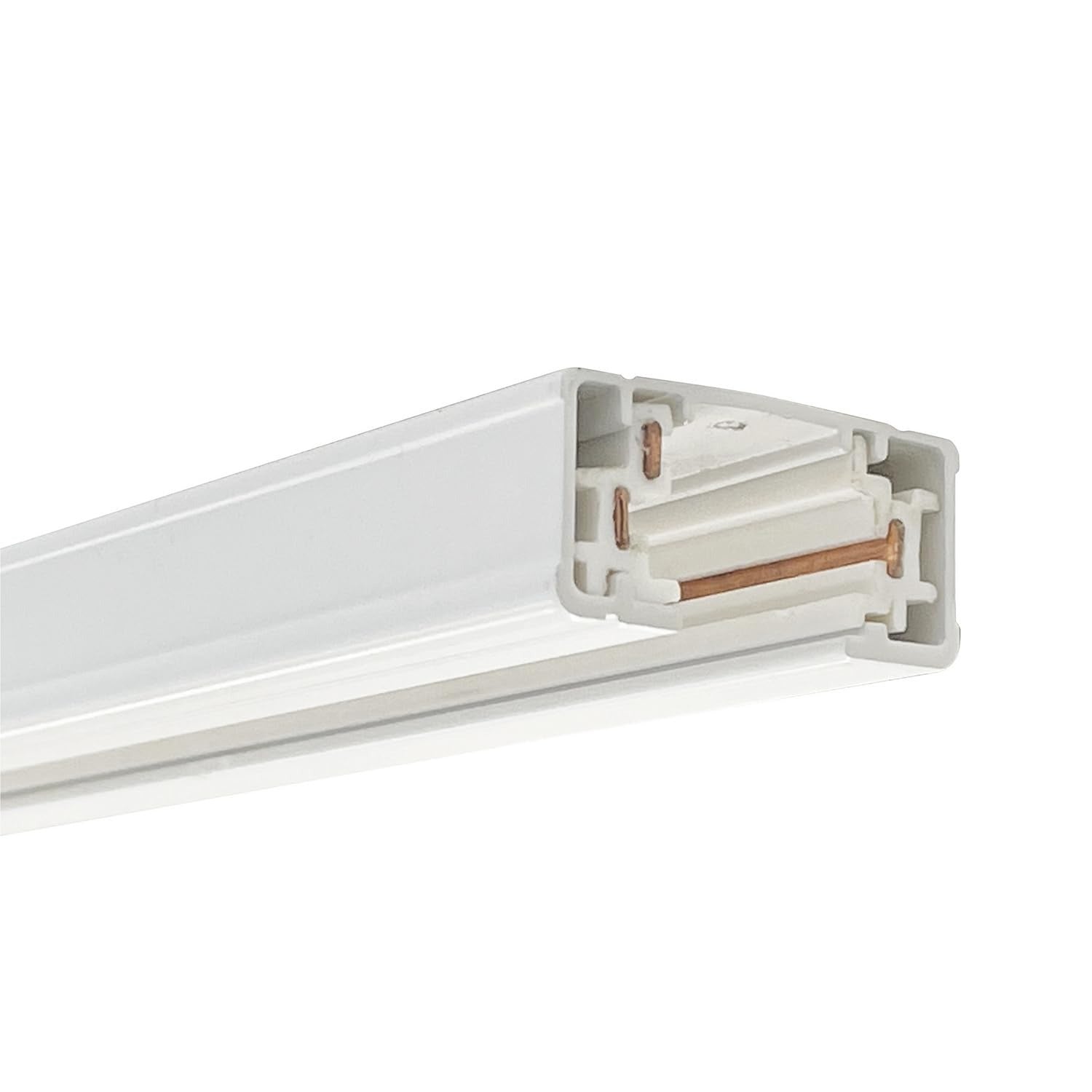

Nora Lighting NT-304WA 1 Circuit Track 8 Ft White

Product Description

The NORA LIGHTING NT-304WA is an 8-foot, single-circuit track section designed for track lighting systems in commercial and residential applications. Built from miniature extruded aluminum, the channel measures 0.68 inches high by 1.43 inches wide and ships in a white finish. Solid 12-gauge copper conductors seated in PVC insulators carry current through the full length of the track. A separate full-length ground conductor is included, and a visual polarity groove runs the length of the channel to confirm correct electrical orientation before fixture installation. Licensed electricians and lighting contractors are the typical installers for this product.

This track section suits retail displays, gallery lighting, accent lighting in hospitality spaces, and general-purpose ambient lighting in residential settings. The miniature profile keeps the installed footprint low-profile on ceilings and wall-mounted applications. Push-in connectors allow sections to join without additional hardware, and the track can be field-cut to a shorter length when the full 8-foot run is not needed for the layout.

Key Features

• Miniature extruded aluminum channel construction for a low-profile ceiling appearance
• Push-in connectors allow fast, tool-reduced section joining
• Solid 12-gauge copper conductors in PVC insulators for reliable current capacity
• Separate full-length ground conductor meets grounding requirements without additional wire runs
• Visual polarity groove confirms correct electrical orientation during installation
• Field-cuttable to any shorter length required by the layout

Compatibility

Designed as an OEM-style component for single-circuit track lighting systems accepting miniature-profile track sections and compatible 1-circuit track fixtures and connectors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 410 requirements for track lighting. Power to the circuit must be shut off and verified de-energized at the breaker before mounting, wiring, or cutting the track. When field-cutting the track to length, use a fine-tooth metal saw and deburr the cut end before installing a compatible end cap or connector. Do not exceed the circuit amperage rating when loading fixtures onto the track.
