Nora Lighting NS-18 Eyeball Trim 4 Inch 358 Degree Horizontal 15 Degree Vertical

Product Description

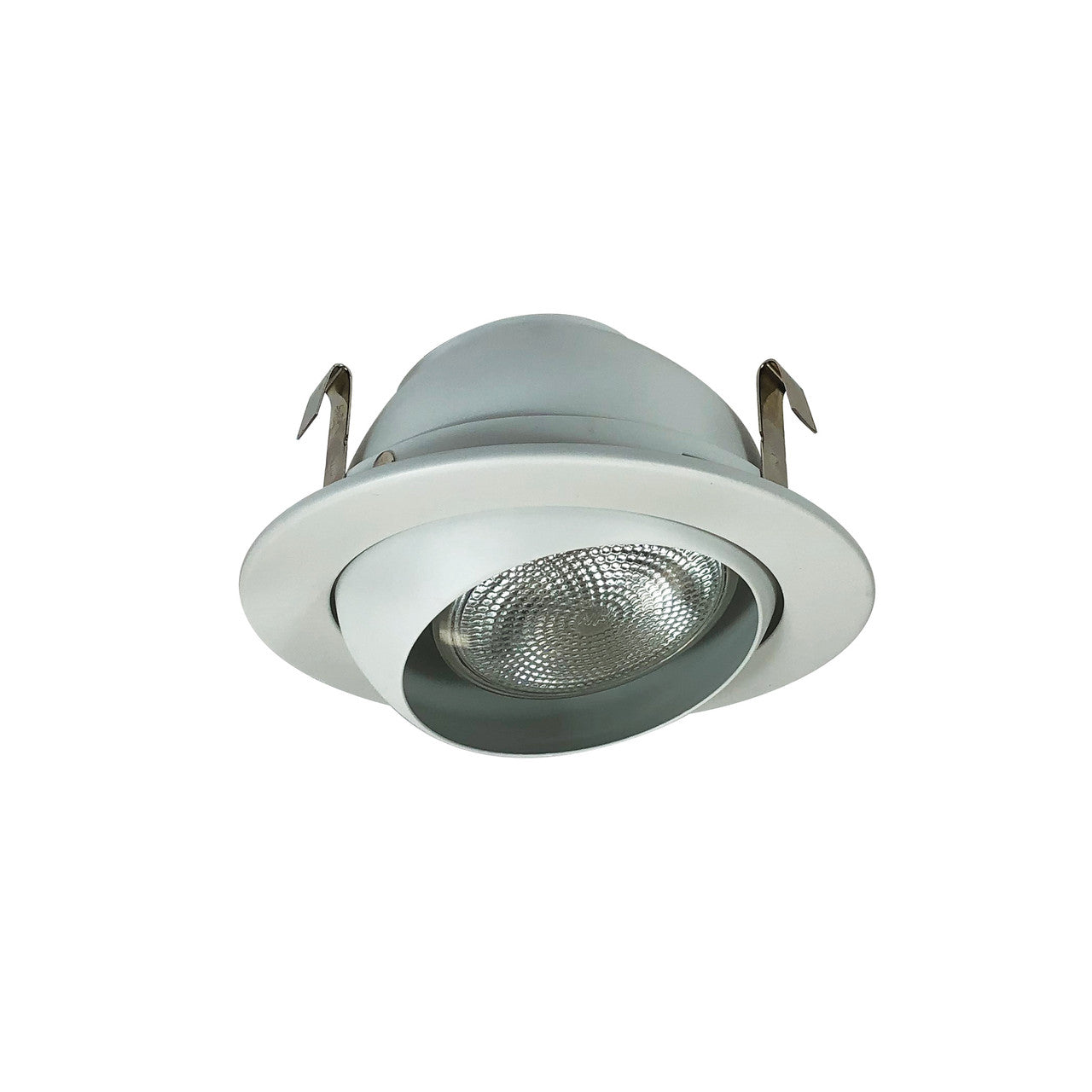

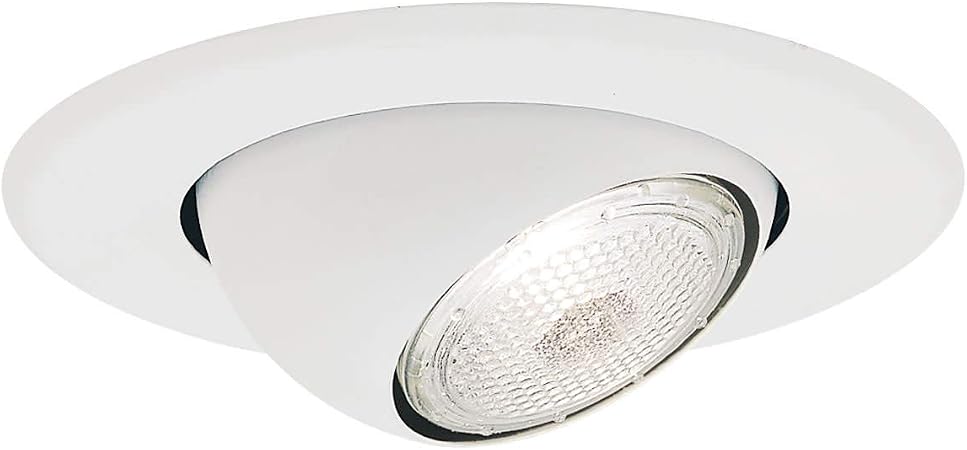

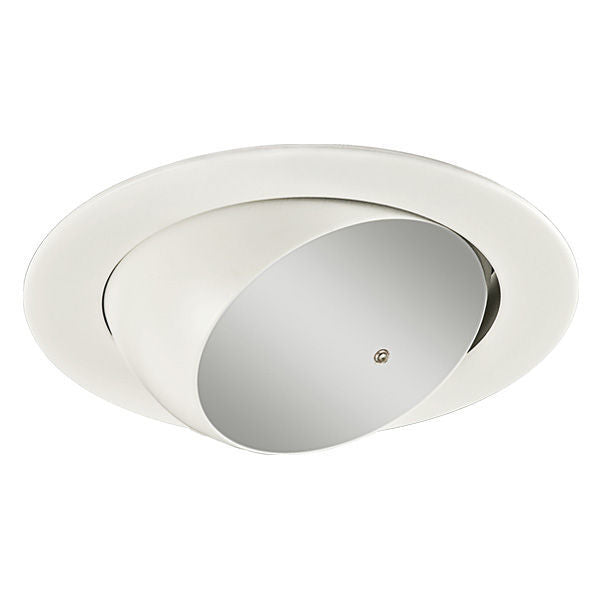

The NORA LIGHTING NS-18 Eyeball Trim is a 4-inch adjustable lighting component. It features a metal trim with an adjustable eyeball that can be rotated 358 degrees horizontally and 15 degrees vertically. This design allows for precise lamp positioning and adjustment within the trim. It is designed for use with R20 and PAR20 bulbs up to 50W and mounts securely with three trim clips.

• Secure mounting with three trim clips for stable installation.
• Adjustable metal eyeball rotates 358 degrees horizontally and 15 degrees vertically.
• Designed for R20 and PAR20 bulbs up to 50W, allowing internal lamp mounting.

Product Highlights

This adjustable eyeball trim provides precise light direction for accent and task lighting applications.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NS-18

Technical Specifications

• Mounting Type: Trim clips, direct eyeball mount
• Material: Metal
• Adjustability: 358 Degree Horizontal, 15 Degree Vertical
• Light Source Type: Line Voltage
• Aperture Diameter: 4 inch
• Application: Adjustable
• Product Type: Trim
• Compatible Housings: NFBIC-4INCATA: 2-Hour Fire Rated New Construction (Rated up to 35W), NS-401QAT: Non-IC Air-Tight New Construction (Rated up to 50W), NSIC-401QAT: IC Air-Tight New Construction (Rated up to 50W), NSR-404QAT: Non-IC Air-Tight New Construction (Rated up to 50W), NSRIC-404QAT: IC Air-Tight New Construction (Rated up to 50W)
• Maximum Lamp Wattage: 50W
• Compatible Lamp Type: R20/PAR20
• Certifications: cULus Listed for Damp Location when used with Compatible Housing
• Style: Traditional
• Indoor Outdoor Usage: Indoor
• Number of Light Sources: 1
• Bulb Base: E26
• Installation Type: Flush Mount
• Finish Type: Painted
• UPC: 732180441273
• Fixture Type: Recessed Downlight
