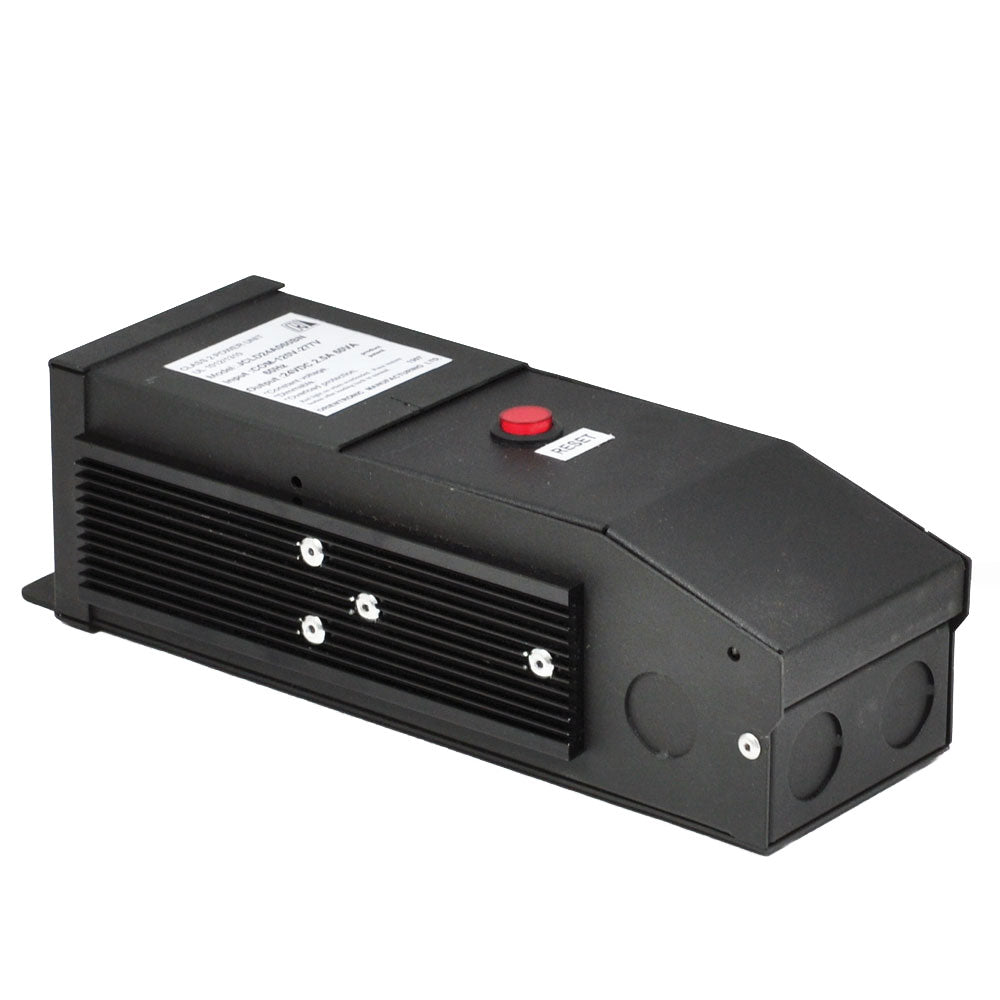

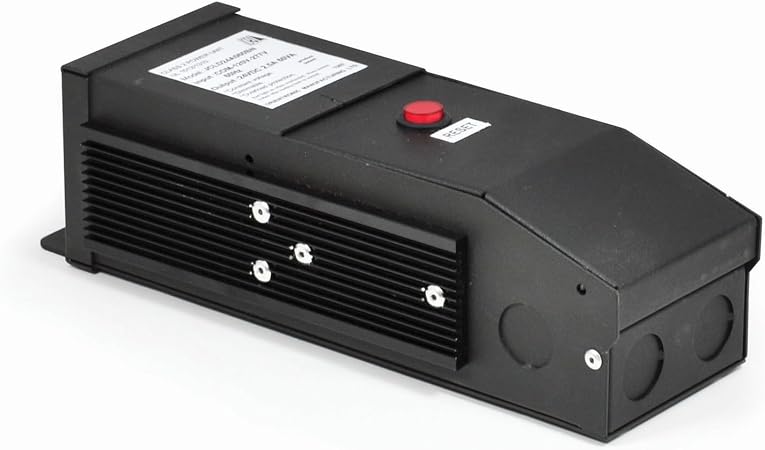

Nora Lighting NMTD-60/24D Magnetic Drive with Power Line Connector 60W

Product Description

The NORA LIGHTING NMTD-60/24D is a 60 Watt Class 2 fused constant voltage magnetic remote transformer. It operates with an input voltage range of 120VAC-277VAC and provides a 24VDC output. The secondary 60W output is fused for 2.5 amps at 24V DC. This hardwire dimmable LED magnetic driver is designed for reliable operation, resisting spikes and surges. It is suitable for 24-hour operation in dry locations and is cULus Listed.

• Fully dimmable with low voltage magnetic dimmer
• NEC Class 2 2.5A Breaker Protection
• Resists spikes, surges, and other power irregularities

Product Highlights

Provides reliable, dimmable 24VDC power for LED systems in demanding environments.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NMTD-60/24D

Technical Specifications

• Brand: Nora Lighting
• MPN: NMTD-60/24D
• Part Number: NNMTD6024D
• Item Number: 5105893
• Input Voltage: 120V-277V 60Hz
• Output Voltage: 24VDC
• Wattage: 60W
• Output Current: 2.5A
• Dimming: MLV
• Maximum Distance: 50'
• Certifications: cULus Listed, NEC Class 2
• Finish: Black
• Lamp Source: LED
• Power Cord Length: 10 foot
