Product Description

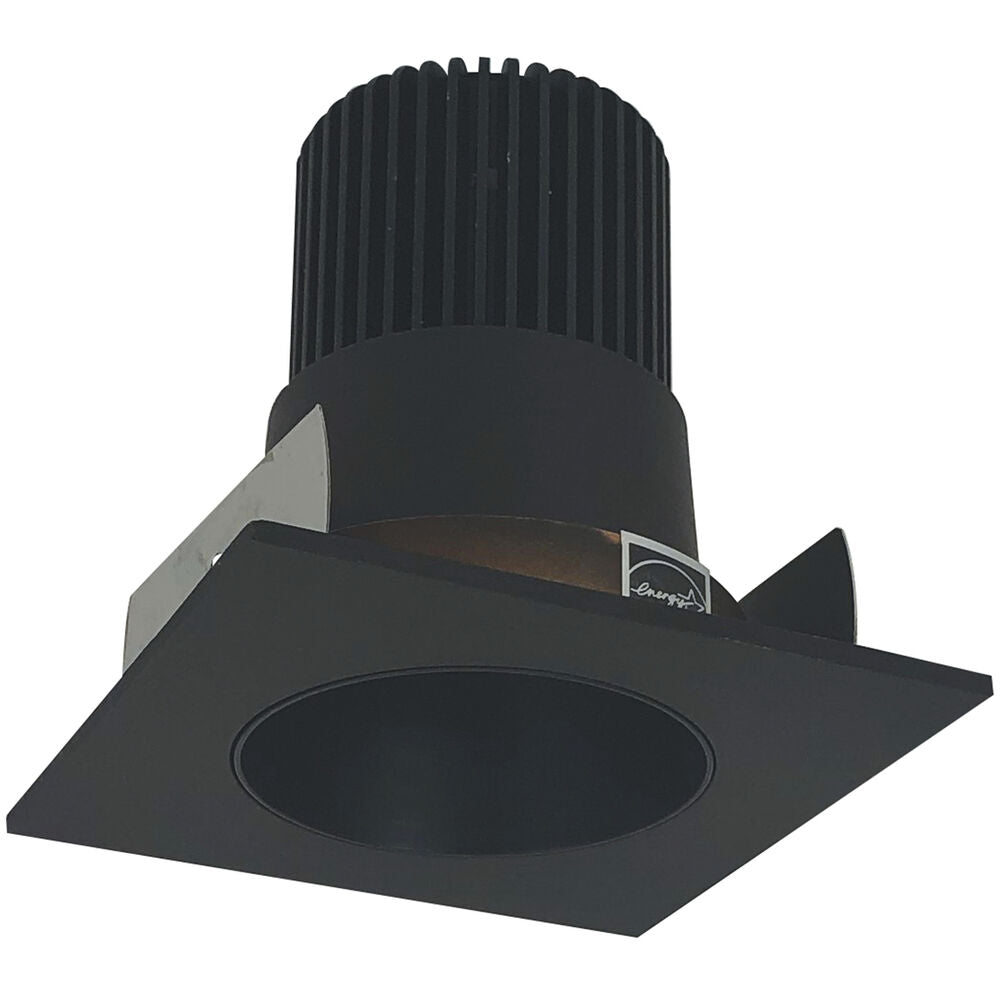

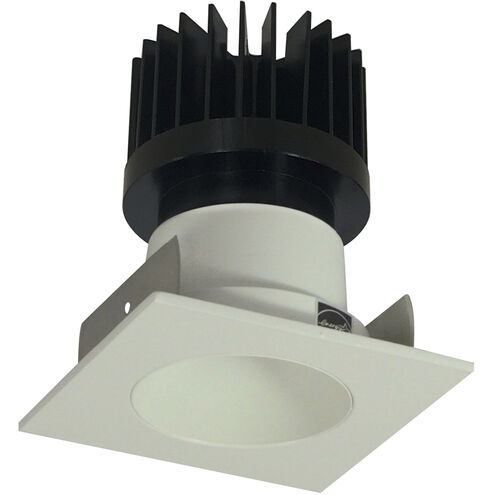

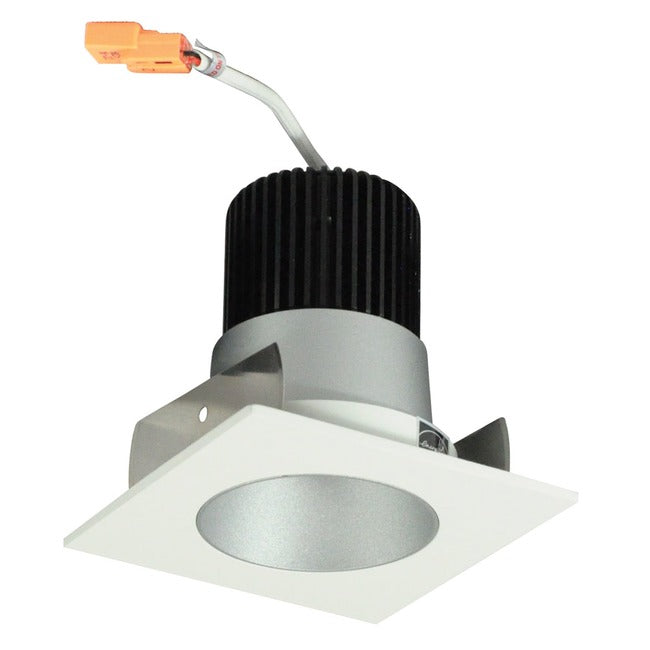

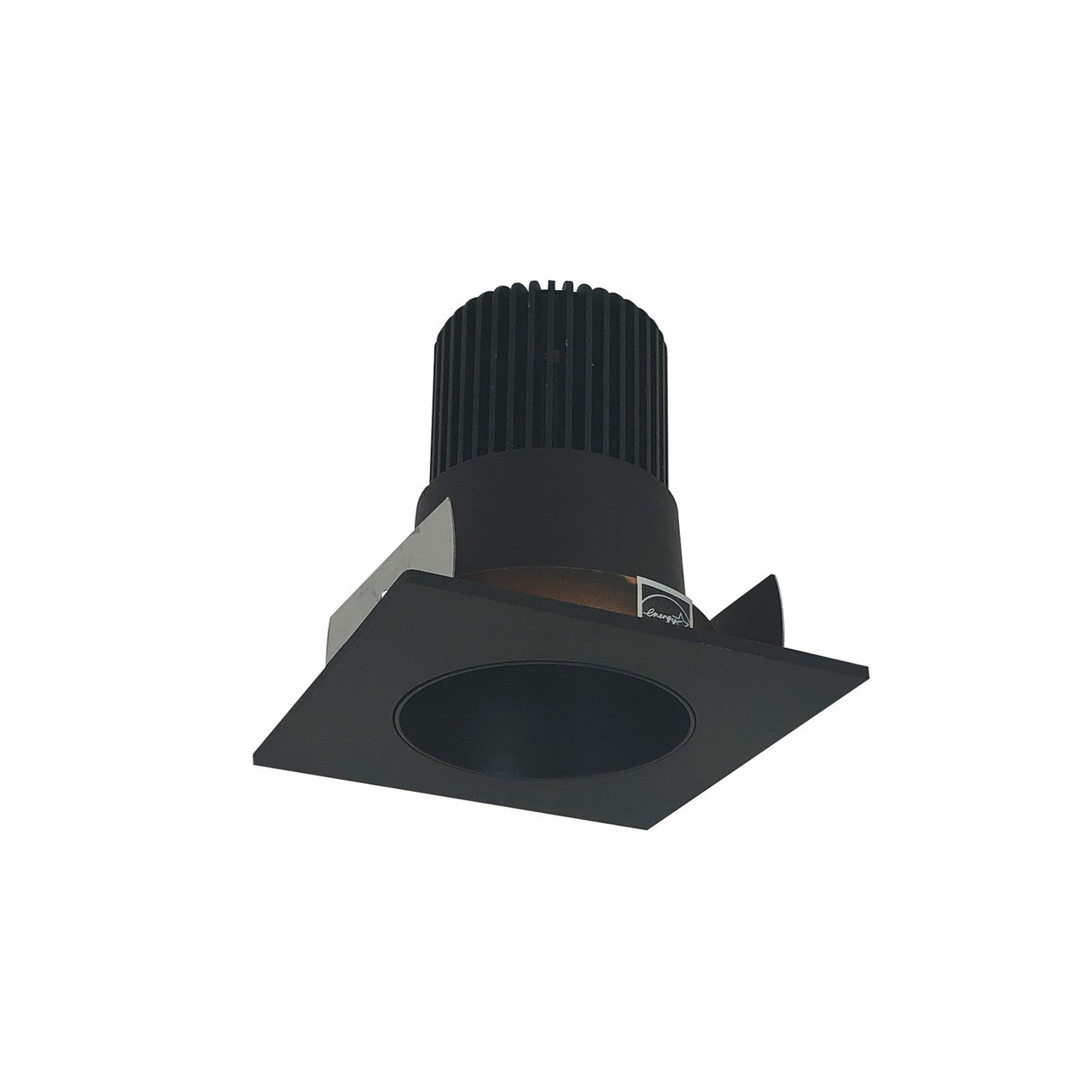

The Nora Lighting NIOB-2SNDC27XBZ/10 is a 2" square non-adjustable deep regressed cone reflector. It can be specified for new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. It produces 1000lm output at 90+ CRI, utilizing 14W.
- Die-cast aluminum trim and reflector
- 25, 38 and 60 degree optics included
- Ships with 60 degree optic installed
Product Highlights
The Iolite 2 Inch Square Deep Cone Regress Downlight Trim features a die-cast aluminum trim and reflector with 25, 38 and 60 degree optics included.
Product Information
Standard Information
-
Brand: NORA LIGHTING
-
Manufacturer Part Number: NIOB-2SNDC27XBZ/10
-
Country of Origin: CHN
Technical Specifications
-
Manufacturer: Nora Lighting, Inc.
-
Manufacturer Brand: Nora Lighting
-
Product Description: Nora NIOB-2SNDC27XBZ/10 2" Square Non-Adjustable Deep Regressed Cone
-
Sub-Category: Indoor Lighting Fixture Accessories
-
UNSPSC: 39111827
-
UPC 12 Digit: 732180326341
-
Unique Product Key: 6617521
-
Brand: NORA Lighting
-
Category: LED Recessed Lighting
-
Lumens / Wattage: 800lm / 14W (New Construction or Remodel Housing) 1000lm / 14W (New Construction Housing only)
-
Color Temperature: 2700K
-
CRI: 90+
-
Operating Temp.: 0
C to 40
C ambient temperature
-
Dimming: Specified by housing
-
Compatible Housings: Reflectors are compatible with respective Iolite housings manufactured by Nora Lighting
-
Dimmer: Dimmable
-
Function: Downlight
-
Ceiling Type: Drywall with Trim
-
Aperture Shape: Round
-
Aperture Size: 2.250"
-
Lamp Source: LED
-
Bulb: 1 x LED/14W/120V LED Integrated LED module
-
Total Wattage: 14 watts
-
Delivered Lumens: 1000 lumens
-
Lumens/Watt: 71.43
-
Lamp Life: 50000 hours
-
Product Code: NIOB-2SNDC27XBZ-10
-
Manufacturer Part Number: NIOB-2SNDC27XBZ/10
-
Fixture/Body Finish: Bronze
-
Brand Category: Recessed Light
-
Lamping Category: LED
-
Lamping Included: Bulbs Not Included
-
Lumens: 1000
-
Primary Number of Bulbs: 1
-
Total Number of Bulbs: 1
-
Wattage Max: 14.00
-
Country of Origin: CHN
-
Title 24: Yes
-
Battery Included: No
-
Brightness (Lumens): 1000
-
Certifications: cULus, Title 24
-
Collection: 2" Iolite Dedicated Trim
-
Color Rendering Index (CRI): 90
-
Color Temperature (Kelvin): 2700K
-
Finish: Bronze Reflector / Bronze Flange
-
Fixture Type: Recessed
-
Location Rating: Wet
-
Wattage: 14
-
Input Voltage: 120-277V
-
Dimmable: 120V or 0-10V
-
Downlight Diameter: 2"
-
Downlight Type: Deep Regressed, Housing Required
-
Rated Hours: 50,000 Hours
-
Beam Angle: Adjustable Optics
-
Special Features: Energy Star Rated, Title 20 / 24 Compliant, Wet Location Rated
-
Length: 3.63"
-
Width: 3.63"
