Nora Lighting NIO4SD30XWW 4 in Iolite Deep Cone Trim 800lm 3000K

Product Description

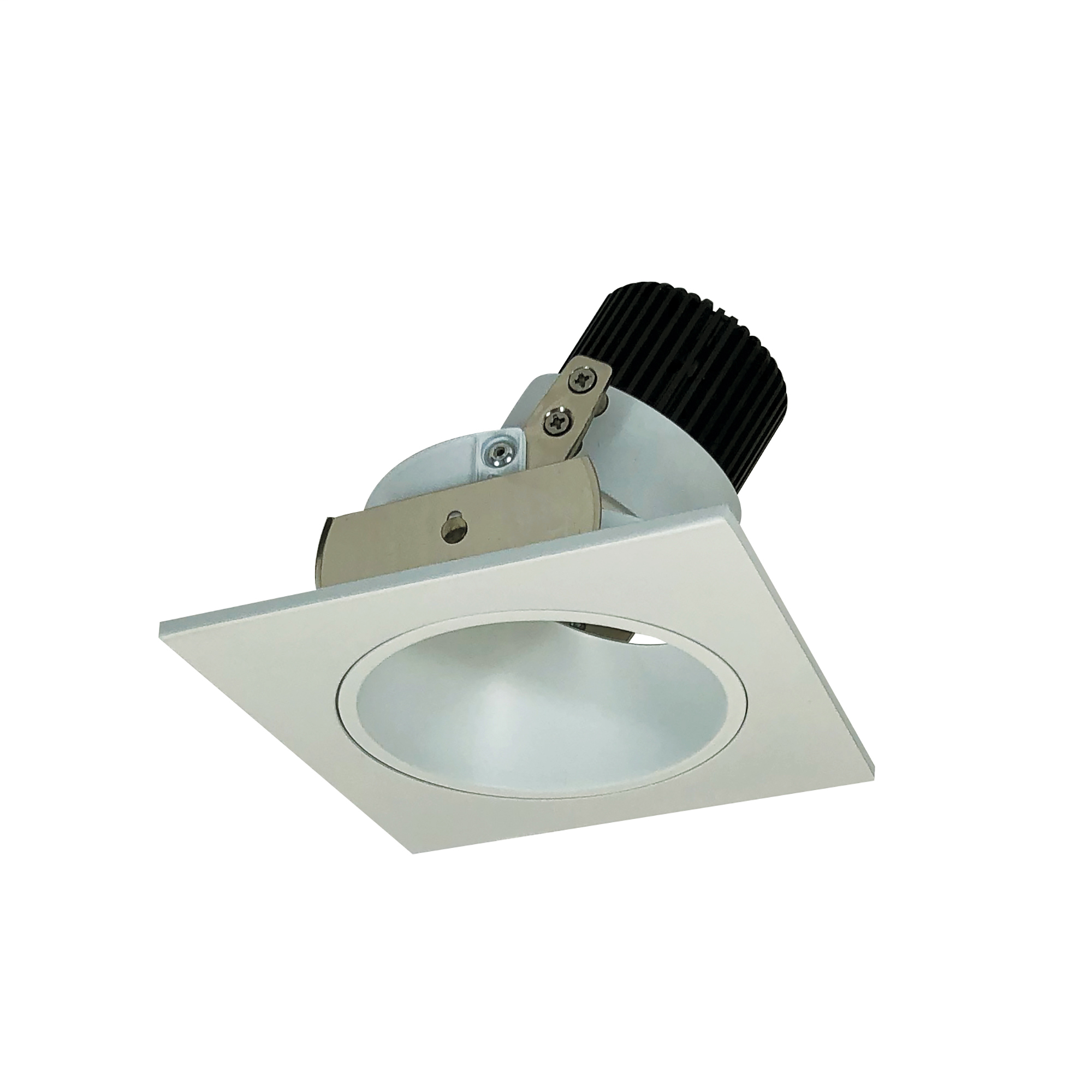

The NORA LIGHTING NIO4SD30XWW is a 4-inch square/round deep cone reflector adjustable trim designed for recessed lighting applications. It delivers 800 lumens at a 3000K color temperature, producing a warm white light output suited to finished interior spaces. The trim features a deep cone reflector profile with a 35-degree adjustable aim, allowing directed illumination of specific surfaces or objects. The white finish on both the trim ring and cone gives it a clean, low-profile appearance that integrates with standard ceiling finishes. Electricians and lighting contractors install this trim as part of a complete recessed fixture assembly.

This trim is intended for residential and light commercial interior installations where directional, warm-white downlighting is required. Typical applications include living spaces, retail display areas, hospitality environments, and corridors where accent or ambient lighting at 3000K is specified. The adjustable cone allows the installer to redirect the beam after rough-in, making it useful in rooms where wall-washing or object highlighting is part of the lighting design. It is compatible with the Iolite recessed housing system.

Key Features

• 800 lumen output at 3000K warm white color temperature
• 35-degree adjustable aim for directional or accent lighting
• Deep cone reflector profile reduces glare and focuses the beam
• Square/round trim ring fits standard 4-inch recessed openings
• White trim and white cone finish for clean ceiling integration

Compatibility

Designed for use with the NORA Iolite 4-inch recessed housing system. Confirm housing compatibility before ordering, as trim and housing must be matched within the Iolite product family.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. Power must be shut off at the breaker before handling any trim or housing components. The trim clips or retention springs into the recessed housing after the housing is secured and wired. Adjust the cone aim angle after trim installation while power is off, then restore power to verify aiming before closing up the work area.

Technical Specifications

• Aperture Size: 4 inches
• Lumen Output: 800 lm
• Color Temperature: 3000K
• Adjustability: 35 degrees
• Trim Shape: Square/Round
• Reflector Style: Deep Cone
• Finish: White/White
• UPC: 732180311033

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NIO4SD30XWW
