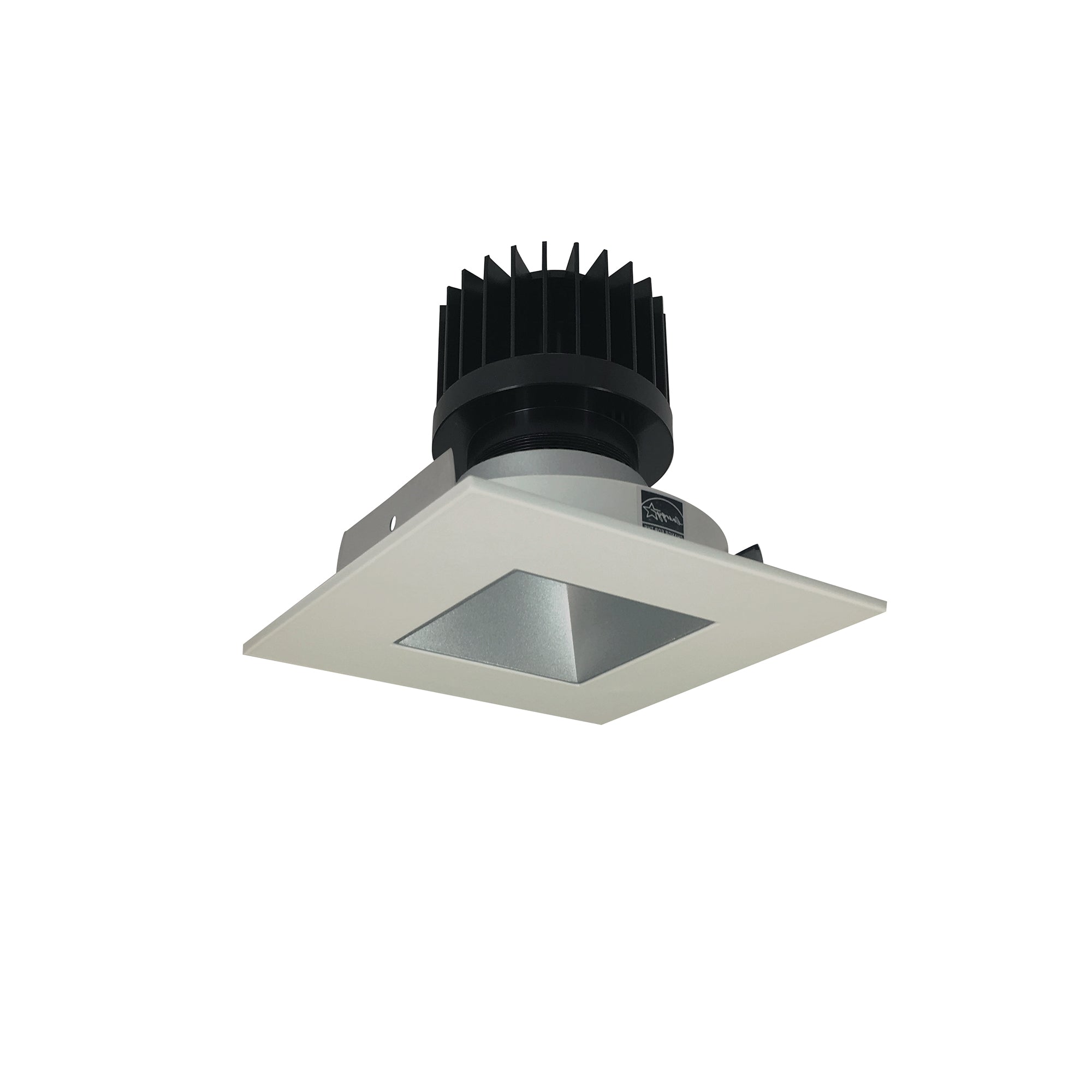

Nora Lighting NIO-4SNDSQ30XHW/HL 4 inch iolite square reflector with square aperture 800lm-2500lm

Product Description

The Nora Lighting NIO-4SNDSQ30XHW/HL is a 4-inch Iolite square reflector designed for use with Iolite new construction or remodel housings. Constructed from heat-dissipating die-cast aluminum, it features deep regressed cone optics to optimize visual cut-off. This reflector supports various lumen packages from 800lm to 2500lm and offers a high 90+ CRI for accurate color rendering across multiple color temperatures.

• Supports 800lm, 1000lm, 1500lm, 2000lm, or 2500lm LED packages.
• Includes field-changeable optics (spot, narrow flood, flood) for adjustable beam angles.
• Features 90+ CRI and various color temperatures (2700K-5000K) for accurate lighting.

Product Highlights

Deep regressed cone reflector with field-changeable optics and high CRI for versatile, quality illumination.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NIO-4SNDSQ30XHW/HL

Technical Specifications

• Construction: Die-cast aluminum
• Mounting: Friction blades
• Optics (800-1000lm): Field changeable (25° spot, 38° narrow flood, 56° flood preinstalled); Premium 15°, 25° TIR available
• Optics (1500-2500lm): Field changeable TIR (30° spot, 45° narrow flood preinstalled, 65° flood)
• Lumen/Wattage: 800lm/14W, 1000lm/14W, 1500lm/20W, 2000lm/24W, 2500lm/28W
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• CRI: 90+
• Operating Temperature: Specified by housing
• Lifetime: 50,000 hours @ L70
• Comfort Dim: 3100K to 2000K (800lm only)
• Dimming Control: Specified by housing
• Input Voltage: 120-277V
• Dimming Compatibility: 120V or 0-10V
• Downlight Diameter: 4 inch
• Downlight Type: Deep Regressed, Housing Required
• Beam Angle: Adjustable Optics
• Special Features: IC Rated, Title 20/24 Compliant, Wet Location Rated
• Product Type: Iolite LED Square Reflector
• Aperture Shape: Square
