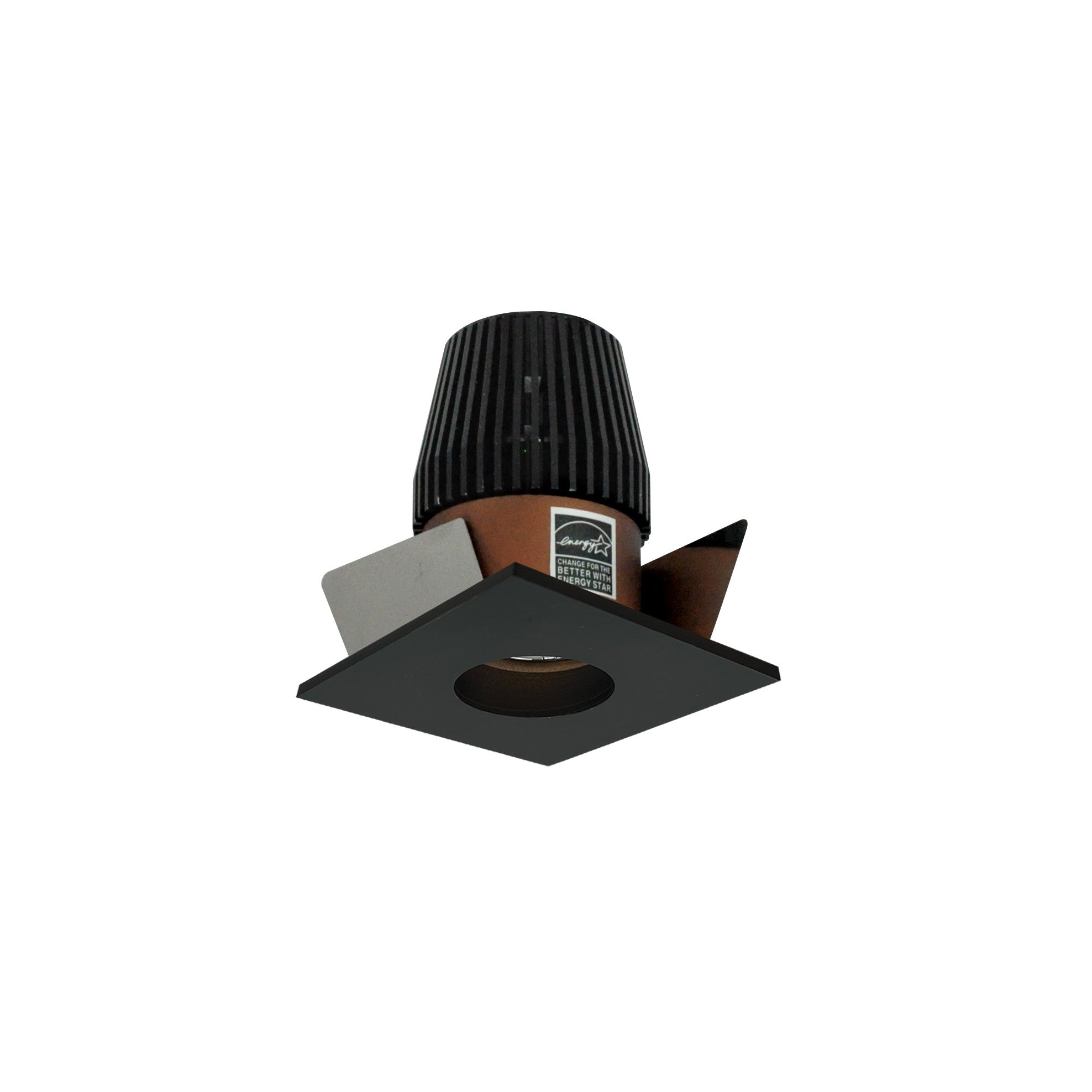

Nora Lighting NIO-1SNG27XBZ 1 inches Iolite Square Straight Regressed Reflector

Product Description

The Nora Lighting NIO-1SNG27XBZ is a 1" Iolite square straight regressed reflector. Nora Lighting's Iolite series of LED downlights provide energy-efficient illumination for residential or commercial applications and can be specified for use with Iolite new construction housings. This downlight provides 600 lumens of 2700K warm white light.

• 120V operation / dimming or 120-277V operation / 0-10V dimming (depending on housing)
• Wattage varies by housing (9W / LE3 or 10W / LE4)
• Straight reflector with sharp edge optimizes visual cut-off

Product Highlights

The reflector is constructed of heat dissipating, die-cast aluminum. It has a high CRI of 90+ for true color rendering and is wet location rated, Energy Star, and Title-24 compliant.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NIO-1SNG27XBZ
• Country of Origin: China

Technical Specifications

• Manufacturer: Nora Lighting, Inc.
• Manufacturer Brand: Nora Lighting
• Product Description: Nora NIO-1SNG27XBZ 1" Iolite Square Straight Regressed Reflector
• Sub-Category: Indoor Lighting Fixture Accessories
• UNSPSC: 39111827
• UPC 12 Digit: 732180311675
• Unique Product Key: 6617453
• Lumens: 600 Lumens
• Lumens Per Watt: 60
• Wattage: 10 Watts
• Input Voltage: 120-277V
• Dimmable: 120V or 0-10V
• Color Temperature: 2700K
• Downlight Diameter: 1"
• Downlight Type: Housing Required
• Beam Angle: 60 Degrees
• Min Operating Temp: 32 Degrees F
• CRI: 90+
• Special Features: Energy Star Rated, Title 20 / 24 Compliant, Wet Location Rated
• Length: 2.75"
• Width: 2.75"
• Height: 3"
• Light Source: LED, Comfort Dim
• Aperture Size: 1"
• Application: Downlight
• Construction Type: New Construction, Air-Tight IC
• Options: ENERGY STAR certified, Wet Location
• Battery Included: No
• Certifications: cULus, Title 24
• Collection: 1" Iolite Dedicated Trim
• Color Rendering Index (CRI): 90
• Color Temperature (Kelvin): 2700K
• Country of Origin: China
• Finish: Bronze Reflector / Bronze Flange
• Fixture Type: Recessed
• Location Rating: Wet
• Material: Die-cast Aluminum
• Overall Light Shape: Square
• Assembly Required: Yes
• Origin: China
• Lighting Bulb Count: 1
• Bulb Wattage: 10
• Bulbs Included: Yes
• Voltage: 120V
• Bulb Base: Integrated LED
• Bulb Type: Integrated LED
• Lamp Source: LED
• Has Integrated LED: Yes
• Beam Spread: Flood
• Lamp Life: 50000
• Overall Width: 2.38 "
• Overall Height: 2.5 "
• Safety Rating: cUL
• Damp Location: Yes
• Wet Rated: Yes
• Energy Star: Yes
• Title 24: Yes
