Nora Lighting NHRIC-27QAT Ic Qk Connect Hsg 75 Watt 6 Inch 5-1/2 Inch

Product Description

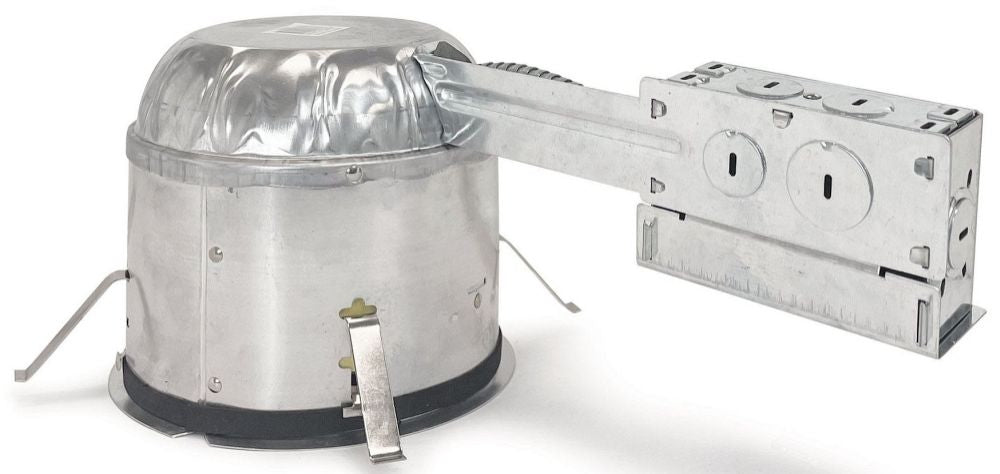

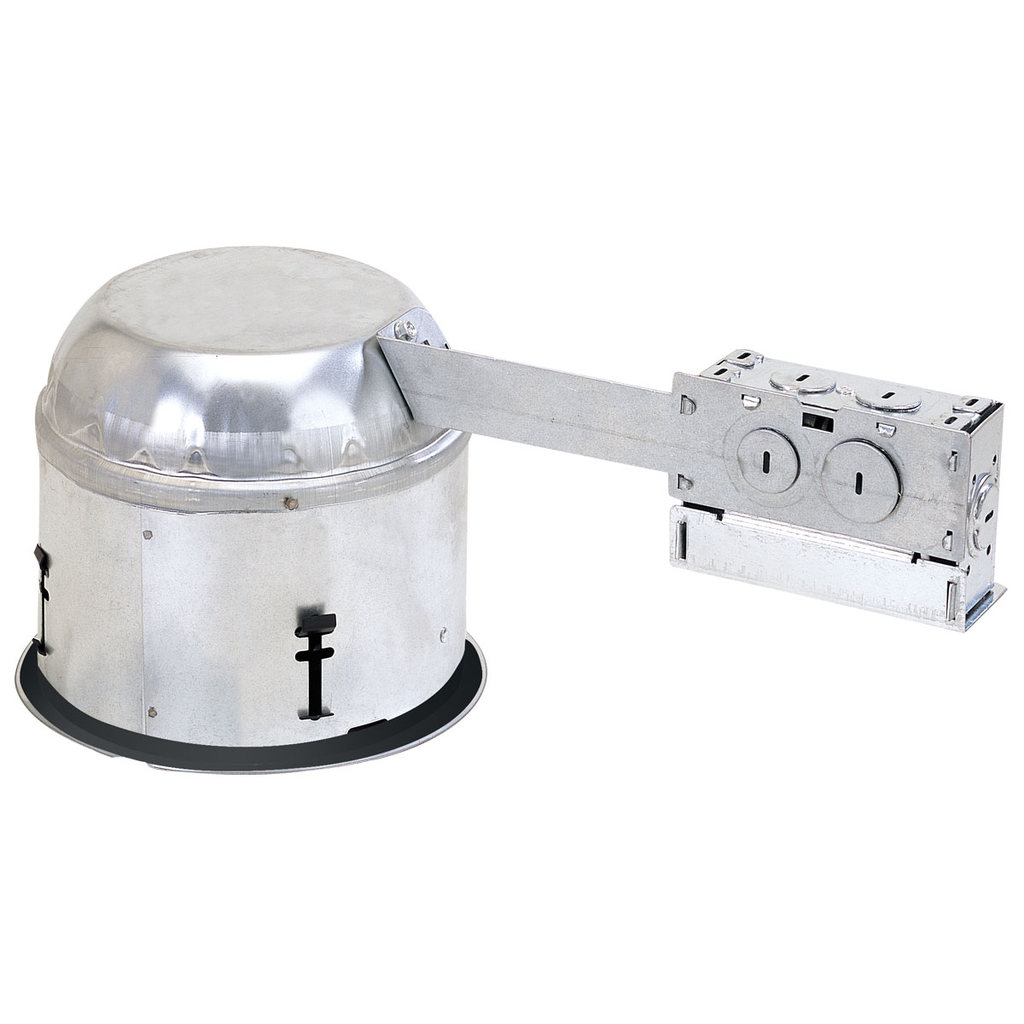

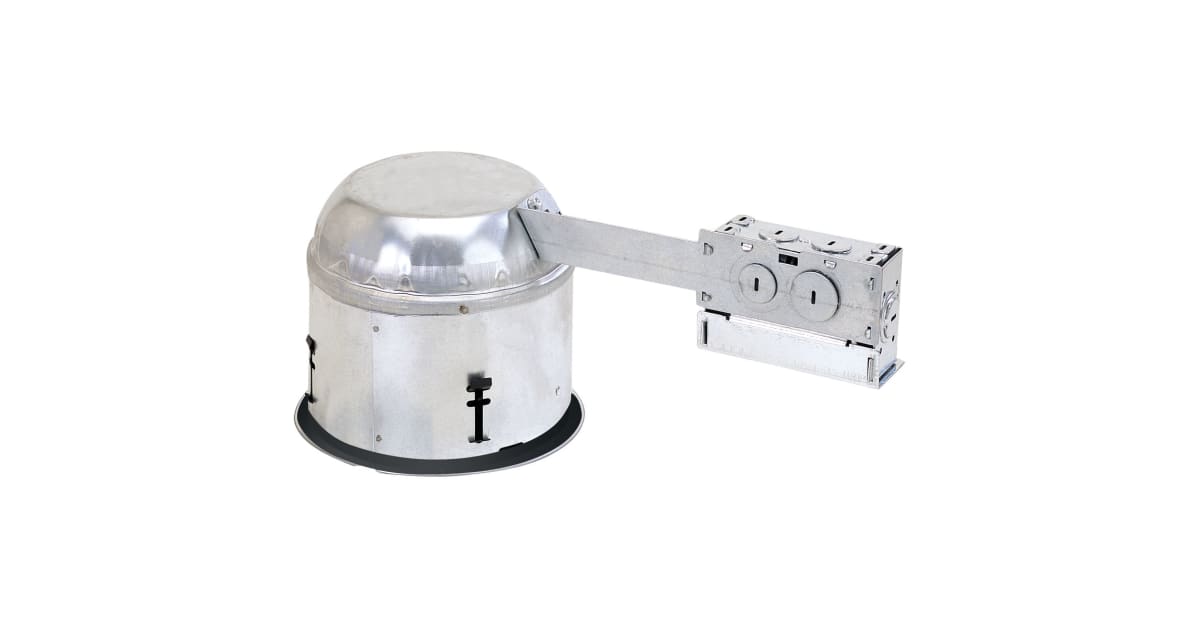

NORA LIGHTING NHRIC-27QAT is a shallow ceiling remodel housing designed for existing drywall or wood ceilings. This unit is rated for direct contact with insulation and features an airtight construction to reduce energy loss. It accommodates a 75 Watt lamp and is suitable for damp/wet locations, with a 6-inch nominal aperture size and a 6-3/8 inch ceiling opening.

• Shallow ceiling housing type for remodel installations.
• UL (Canada and US) approved for damp/wet location applications.
• Air-tight construction and rated for direct contact with insulation.

Product Highlights

This remodel housing features a low 5-1/2 inch profile, quick connectors, and a galvanized steel socket plate, making it suitable for various ceiling types and compatible with LED retrofits.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NHRIC-27QAT
• Country of Origin: China

Technical Specifications

• Brand: Nora Lighting
• Width: 6.75 in
• Height: 5-1/2 Inch
• Length: 13-3/4 Inch
• UPC: 732180615612
• Housing Type: Shallow Ceiling
• Installation: Remodel
• Certifications: cULus Listed, ASTM-283, NYC Approved, Damp Location, IC Rated
• Application: Damp/Wet Location
• Maximum Wattage: 75 Watt
• Housing Material: 0.04 Inch Thickness Aluminum (Housing), 0.04 Inch Thickness Steel (Frame)
• IC Rating: IC
• Aperture Size: 6 Inch
• Aperture Shape: Round
• Junction Box Type: 0.064 Inch Thickness Galvanized Steel With (5) 1/2 Inch, (2) 3/4 Inch Knockout, (4) Nmcbl Pryout Knockout
• Ceiling Cutout Size: 6-3/8 Inch
• Airtight: Yes
• Category: Incandescent Recessed Architectural & Specification Lighting
• Sub-Category: Incandescent Recessed Housing
• UNSPSC: 39111505
• Manufacturer: Nora Lighting, Inc.
• Mounting Type: Ceiling
• Input Voltage: Line Voltage (110-120V)
• Light Source: Line Voltage
• Product Type: Housing
• MPN: NHRIC-27QAT
• Lighting Technology: Incandescent/LED
• Fixture Type: Recessed Downlight
• Socket Type: Medium (E26)
• Trim Type: See Spec Sheet
• Style: Traditional
• Finish Type: Clear
• Number of Bulbs: 1
• Bulb Included: No
• Dimmable: Yes
• LED: No
• Sloped Ceiling Compatible: No
• Energy Star: No
• Fire Rated: No
