Nora Lighting Nhioicd-28le3 Iolite Led Dedicated Icat New Construction Housing 120V

Product Description

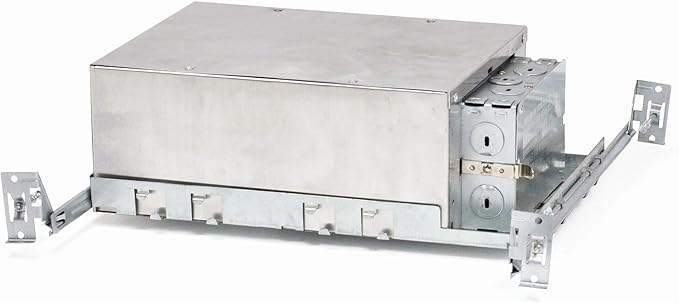

The Nora Lighting NHIOICD-28LE3 is a dedicated new construction housing for 2" Iolite reflectors or 2" iPOINT monopoints. Rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows easy, tool-less removal of the driver.

• Housing only.
• Trim sold separately
• IC Air-Tight New Construction

Product Highlights

The housing is IC Air-Tight rated for new construction. It features a patented design for easy driver removal and provides energy savings.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NHIOICD28LE3
• Country of Origin: USA

Technical Specifications

• Size: 2 inches
• Type: IC Air-Tight New Construction
• Ceiling Cut: 3-1/4 inch
• Voltage: 120V
• Dimming: Triac/ELV
• Model: NHIOICD-28LE3
• Finish: Aluminum
• Manufactured By: Nora Lighting
• Cutout Size: 3 in.
• Depth: 3 in.
• Height: 6 in.
• Trim Size: 2 in.
• Width: 7.63"
• Airtight: Yes
• Housing Type: New Construction
• Housing Material: Aluminum
• Lumens: 800
• Wattage: 14 watts
• Collection: Iolite
• Country Of Origin: USA
• IC Rating: IC
• Location Rating: Wet Location
• Made in America: Yes
• Series: Iolite
• Title 24: Yes
• Option: 120V
• Aperture Size: 2.000"
• Lamp Source: LED
• Total Wattage: 14 watts
• Delivered Lumens: 1000 lumens
• Lumens/Watt: 71.43
• Light Source: LED, Comfort Dim
• Lumen Output: 0-900lm
• Construction Type: New Construction, Air-Tight IC
• Application: Adjustable, Downlight
• Flange: Trimless
• Housing: 0.040 Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Extension collar is available for ceiling thickness up to 2 , must specify NIO-2EXTC2.
• Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
• Clearance: IC Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
• Bar Hangers: Two 13-3/4 to 24-1/2 adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90 perpendicular to junction box if desired. L -shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
• Junction Box: Pre-wired 25 cubic inch 0.064 thick galvanized steel, with seven 1/2 knockouts, four Romex pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.
• Input Voltage: 120V
• Dimmable: 120V
• Special Features: IC Rated
• Length: 12"
