Nora Lighting NHIC-501QAT Airtight Qk Ic Housing 75w 5 Inch

Product Description

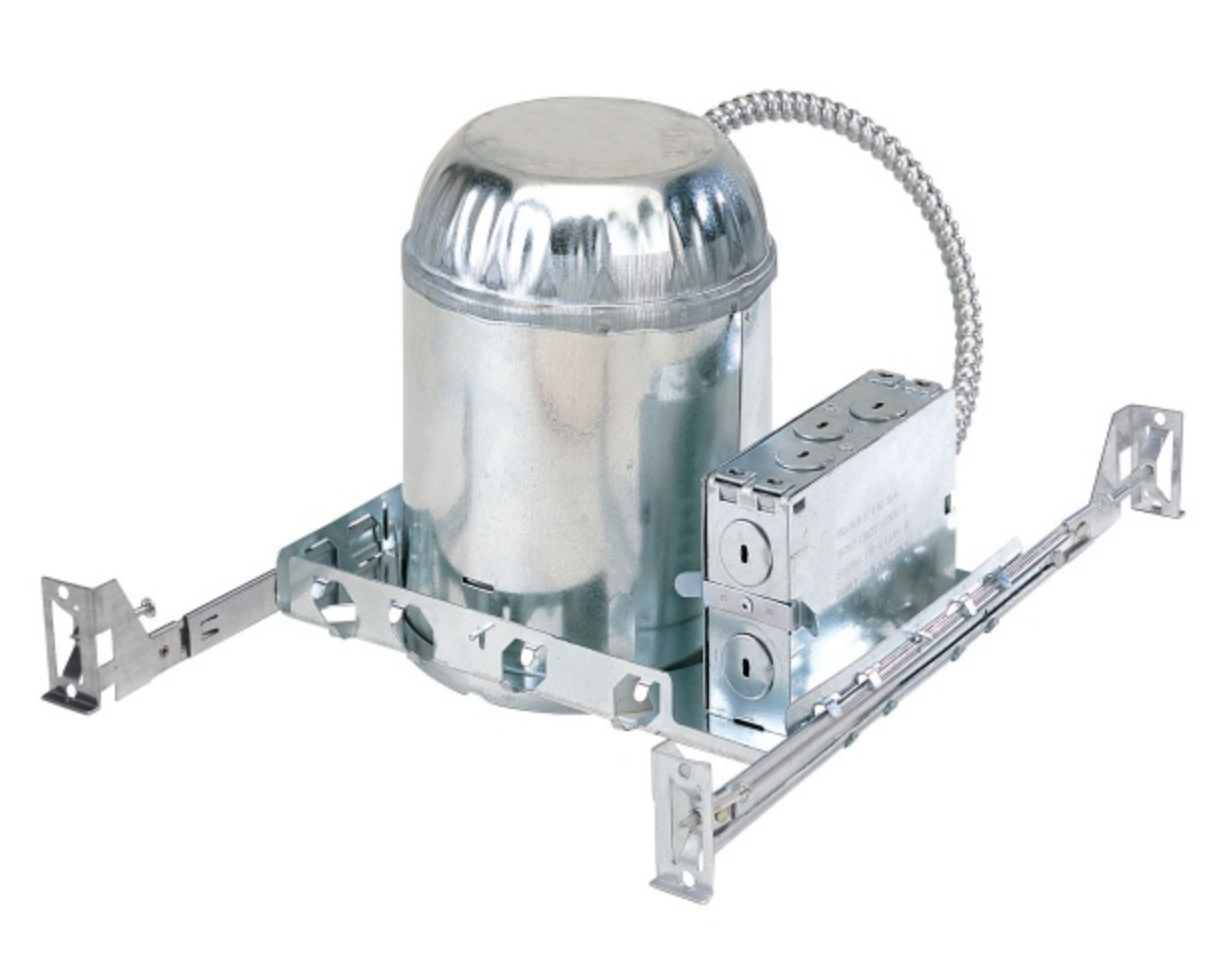

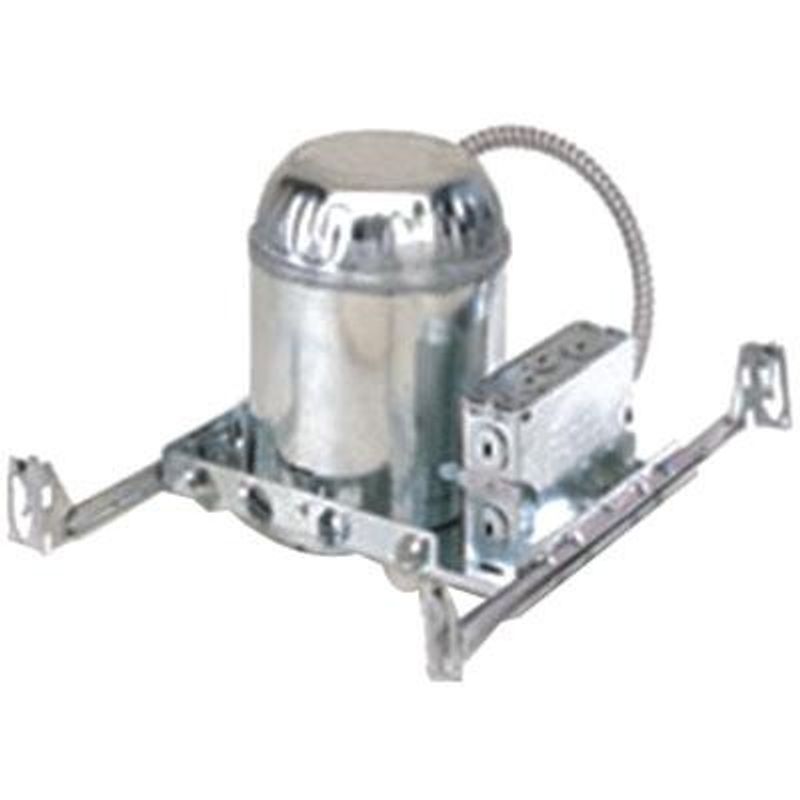

The NORA LIGHTING NHIC-501QAT is a recessed housing designed for new construction installations, suitable for insulated ceilings. This 5-inch nominal aperture size unit features airtight construction, which helps reduce energy costs by minimizing air leakage. It is UL approved for Canada and the US, ensuring compliance for various building projects. The steel housing material provides durability, and it accommodates a 75W power rating.

• Airtight design reduces energy costs by minimizing air leakage.
• Designed for new construction installations and suitable for insulated ceilings.
• UL approved for Canada and US, ensuring compliance and safety.

Product Highlights

Airtight recessed housing for new construction, featuring a durable steel design and UL approval for insulated ceilings.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NHIC-501QAT

Technical Specifications

• Product Type: Recessed Housing
• Category: Incandescent Recessed Architectural & Specification Lighting
• Manufacturer: Nora Lighting, Inc.
• Brand: Nora Lighting
• UNSPSC: 39111802
• UPC: 732180461332
• Housing Material: 0.04 Inch Steel
• Installation Type: New Construction
• Ceiling Type: Insulated
• Insulation Contact: Direct Contact
• Airtight: Yes
• Aperture Size: 5 Inch
• Aperture Shape: Round
• Ceiling Opening Size: 5-3/8 Inch
• Maximum Ceiling Thickness: 1-3/4 Inch
• Light Source Type: Line Voltage
• Maximum Wattage: 75 W
• Socket Type: Floating Medium
• Connection Type: Quick Connect
• Socket Alignment: Clips to trim for instant vertical lamp alignment
• Bar Hanger Length: 24-1/2 Inch
• Bar Hanger Features: Adjustable, captive nails, alignment foot, 90 degree repositioning ability
• Junction Box: Listed for through branch circuit wiring, seven 1/2 inch knockouts, four Romex with strain relief
• Location Rating: Damp Location
• Certifications: UL (Canada and US), cULus, WSEC ASTM E283 for Air-Tight
