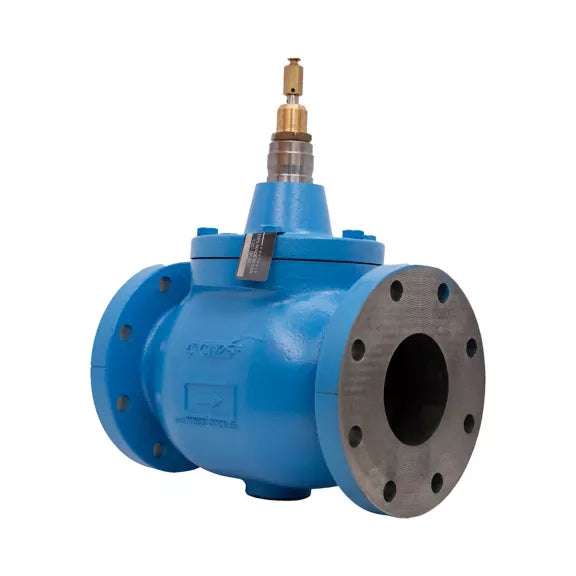

NOR EAST CONTROLS V5011A1882 Steam/H2O 5 Inch Flanged Two Way Globe Valve 250 Cv

Product Description

The NOR EAST CONTROLS V5011A1882 is a globe valve with reliable flow control, featuring a capacity of 250 Cv and a stroke length of one and one-half inches. This valve is commonly used in heating and air conditioning systems and has a nominal size of five inches. It includes flanged connections and is constructed from durable cast iron.

• Stainless steel stem with serviceable Teflon packing
• Compatible with direct mounting valve actuators and linkages
• Equal percentage flow characteristic

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: V5011A1882
• Part Description: Globe Valve

Technical Specifications

• Type: Globe, 2-Way, Stem Down to Close, Direct Acting
• Nominal Size: 5 Inch
• End Connection: Flanged x Flanged
• End to End Distance: 15 Inch
• Bonnet Type: Flanged
• Body Material: Cast Iron
• Stem Material: 316 Stainless Steel
• Seat Material: Bronze
• Seal Material: Non-Stick Cone
• Disc Material: Non-Stick
• Temperature Rating: 40 to 250 Deg F
• Pressure Rating: Class 125, 150 PSI at 240 Deg F (Water), 15 PSI (Steam)
• Inclusions/Features: Self-Adjusting/Spring Loaded Packing
• Application: Heating/Air Conditioning System
• Applicable Standard: ANSI/ASME
• Flow Capacity: 250 Cv
• Stem Travel: 1-1/2 Inch
• Maximum Differential Pressure Rating: 20 PSID
• Used With: Q5001 Modutrol IV Motor
