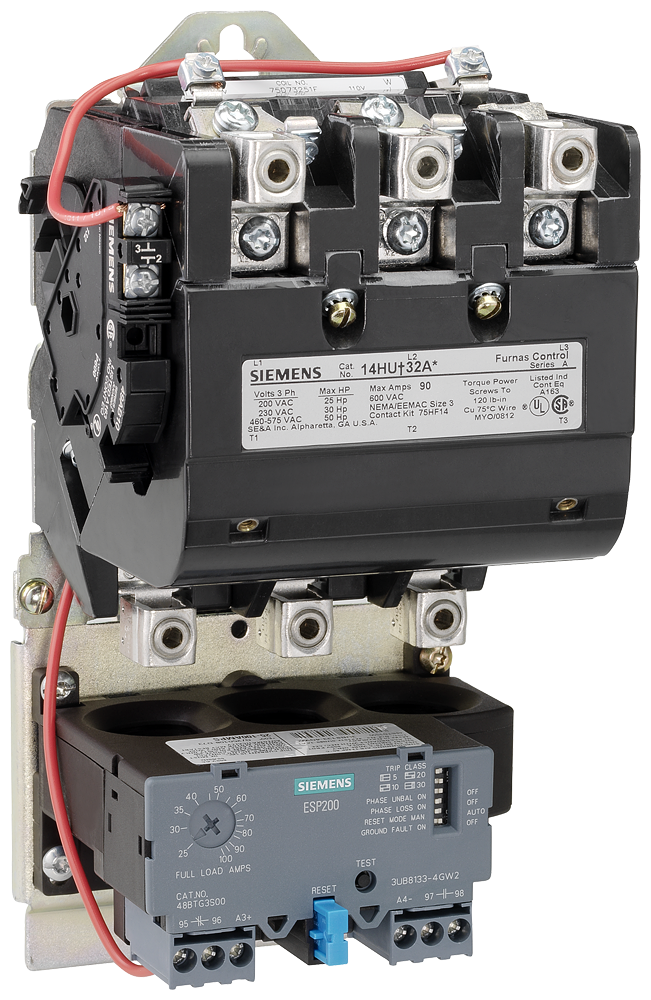

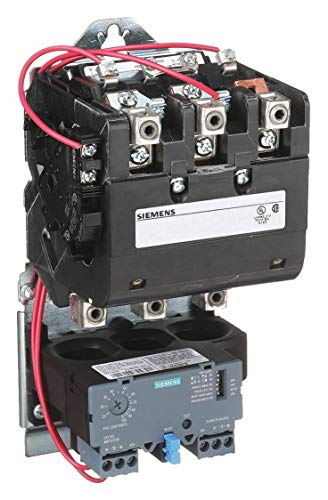

Siemens 14HUG32AA 120/220 to 240 VAC 25 to 100 Amp 3-Phase 3-Pole Size 3 Non-Reversing NEMA Motor Starter

Product Description

The Siemens 14HUG32AA Motor Starter is designed to provide reliable control and protection for motors. It operates at 120/220 to 240 VAC and is suitable for applications with a current range of 25 to 100 amps. This non-reversing, 3-phase, 3-pole size 3 starter is ideal for managing single phase and polyphase motors in industrial settings.

• Non-reversing motor starter
• Operates at 120/220 to 240 VAC
• Supports 25 to 100 amp range

Product Highlights

This Siemens motor starter features a solid-state overload relay and manual/automatic/remote reset types. It is built to UL, CUL, and CSA standards and offers surface mounting with screw connections.

Product Information

Standard Information

• Brand: Siemens
• MPN: 14HUG32AA
• Type: Non-Reversing Motor Starter

Technical Specifications

• Voltage: 120/220 to 240 VAC
• Current Range: 25 to 100 amps
• Phases: 3
• Poles: 3
• Overload Relay Amp Range: 25 to 100A
• Mounting Type: Surface
• Connection Type: Screw
• Reset Type: Manual, automatic, & remote
• Enclosure Type: Open
• Amperage: 90
• Width: 8.2 inches
• Height: 7.2 inches
• Length: 13.7 inches
• Weight: 8 lb
• Operating Temperature: -40 to 104 degrees F
• Country of Origin: Mexico
