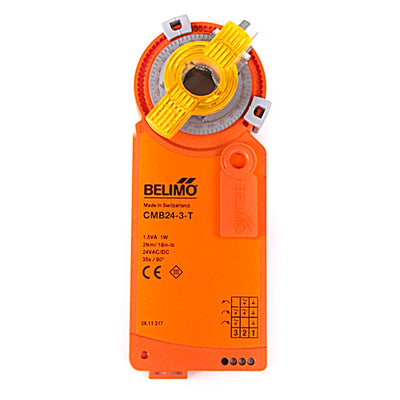

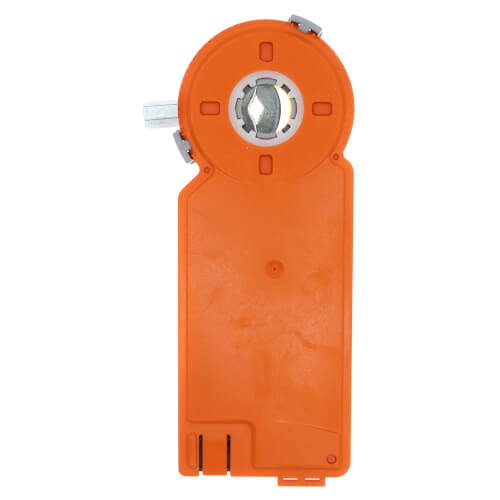

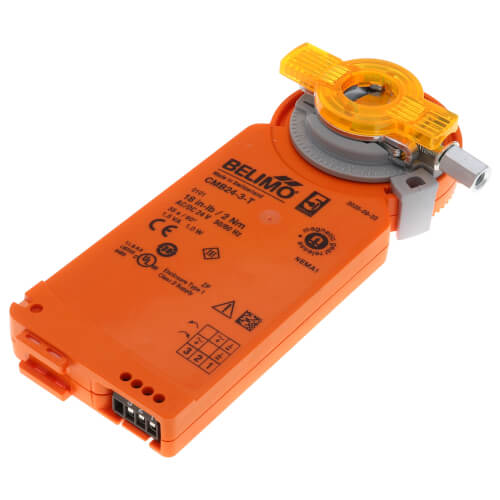

Belimo CMB24-3-T Damper Actuator 18 in-lb Non-Spg Rtn 24V On/Off/Floating Point

Product Description

The Belimo CMB24-3-T Damper Actuator is designed for efficient control of air control dampers in HVAC systems. With a torque of 18 in-lb and a non-spring return mechanism, this actuator operates on 24V AC/DC power and supports both On/Off and floating point control.

• Torque: 18 in-lb
• Non-spring return
• 24V AC/DC power

Product Highlights

Efficient damper control for HVAC systems, supporting both On/Off and floating point control.

Product Information

Standard Information

• Brand: Belimo
• MPN: CMB24-3-T

Technical Specifications

• Torque: 18 in-lb
• Voltage AC/DC: 24V
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Manual Override: Disengage with magnet
• Safety Function: NO
• Angle of Rotation: 0...287.5
• Degree of Protection: IP20 NEMA 1 UL Enclosure Type 1
• Running Time (Motor): 35 seconds / 90 degrees
• Electrical Connection: Terminals
• Power Consumption (Holding): 0.2 W
• Power Consumption (Running): 1 W
