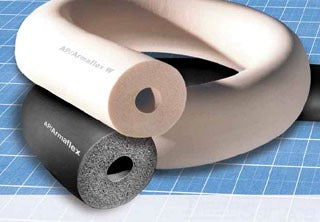

Nomaco APT15838 Pipe Insulation 1-5/8 in Id 3/8 in Wall 6 Ft

Product Description

The NOMACO APT15838 is a closed-cell, flexible elastomeric foam pipe insulation designed for thermal control on mechanical piping systems. Manufactured by Armacell, this sleeved insulation features a 1-5/8 inch inner diameter and a 3/8 inch wall thickness, covering 6 feet per section. It is rated for temperatures from -297 degrees F minimum to 220 degrees F maximum. The black/white solid construction is fiber-free, formaldehyde-free, and low-VOC, making it suitable for sensitive environments. Licensed HVAC technicians, plumbers, and mechanical contractors install this product in new construction and retrofit applications requiring code-compliant pipe insulation.

This pipe insulation is used in residential and commercial HVAC systems, refrigeration lines, plumbing, exposed ceiling installations, air plenums, and industrial or mechanical systems. It is also specified for use in schools, universities, and hospitals where low-VOC and non-particulating materials are required. The 1-5/8 inch ID fits standard pipe covering and is also compatible with 1-1/2 inch ID by 1-5/8 inch OD CTS tubing and 1-1/4 inch PVC pipe. The 2-inch sleeving size accommodates the insulation assembly in tight mechanical chases.

Key Features

• Closed-cell elastomeric foam resists moisture absorption at 0.2 percent water absorption rate
• Temperature range of -297 degrees F to 220 degrees F suits refrigeration and HVAC applications
• Fiber-free, formaldehyde-free, and low-VOC construction meets indoor air quality requirements for schools, hospitals, and commercial buildings
• Meets ASTM C534 Type 1 Grade 1 and ASTM E84 flame spread standards
• Listed to UL 181 and UL 94 5VA and compliant with NFPA 90A, 90B, and 255
• Non-particulating and retains thermal integrity over the service life of the system

Compatibility

Fits 1-5/8 inch inner diameter pipe covering, 1-1/2 inch ID by 1-5/8 inch OD CTS tubing, and 1-1/4 inch PVC pipe. Suitable for refrigeration, HVAC, plumbing, exposed ceiling and air plenum, school, university, hospital, and industrial or mechanical system applications as stated by the manufacturer.

Installation Notes

Installation is typically performed by licensed HVAC technicians, pipefitters, or plumbers following local mechanical codes and applicable ASHRAE or NFPA 90A/90B requirements. Shut down and depressurize the pipe system before applying insulation to hot or refrigerant lines. The slit-sleeve design allows the insulation to be slipped over existing pipe runs; use compatible elastomeric adhesive at seams and butt joints to maintain the vapor barrier. Do not compress the insulation wall thickness during installation, as this reduces thermal performance.

Technical Specifications

• Inner Diameter: 1-5/8 inches
• Wall Thickness: 3/8 inches
• Length: 6 feet
• Sleeving Size: 2 inches
• Minimum Temperature Rating: -297 degrees F
• Maximum Temperature Rating: 220 degrees F
• Water Absorption: 0.2 percent
• Material: Closed-cell flexible elastomeric foam
• Color: Black/White
• Certifications: ASTM C534 Type 1 Grade 1, ASTM E84, UL 181, UL 94 5VA, CAN/ULC S102, ISO 9001, NFPA 90A/90B/255, MEA 107-89M, MIL-C-3133C, MIL-P-15280J Form T
• UPC: 80301411213

Standard Information

• Brand: NOMACO
• Manufacturer Part Number: APT15838
