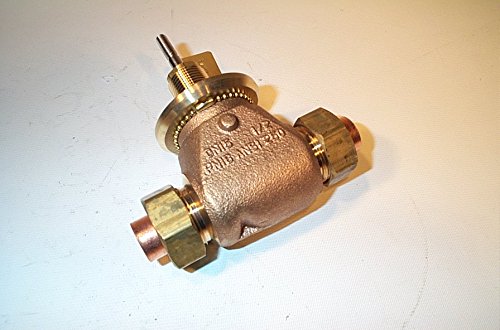

Johnson Controls VG7281ET+3008B Series VG7000 Brass Trim Globe Valve with Exposed Pneumatic Actuator 3-6 psig Spring Range

Product Description

The Johnson Controls VG7281ET+3008B is part of the Series VG7000. This model features a brass trim globe valve with a V-3000-8012 exposed pneumatic actuator, operating within a 3 to 6 psig spring range. This valve efficiently controls hot water, chilled water, or 38 psig saturated steam, making it suitable for various HVAC applications.

• Controls hot or chilled water or 38 psig saturated steam
• Operates within a 3 to 6 psig spring range
• Static pressure rating: ANSI Class 250

Product Highlights

Featuring a rugged actuator with a die-cast enclosure, this valve fits VG7000 Series valves ranging from half an inch to two inches. It can be assembled in the factory or field, with an optional V-9502-90 Positioner for added versatility.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Brand: Johnson Controls
• Model: VG7281ET+3008B
• Category: Tools & Home Improvement

Technical Specifications

• Pressure Rating: ANSI Class 250
• Fluid Temperature Range: 35 to 284 degrees Fahrenheit
• Spring Range: 3 to 6 psig
• Valve Size Compatibility: 0.5 inches to 2 inches
• Weight: 0.6 pounds
