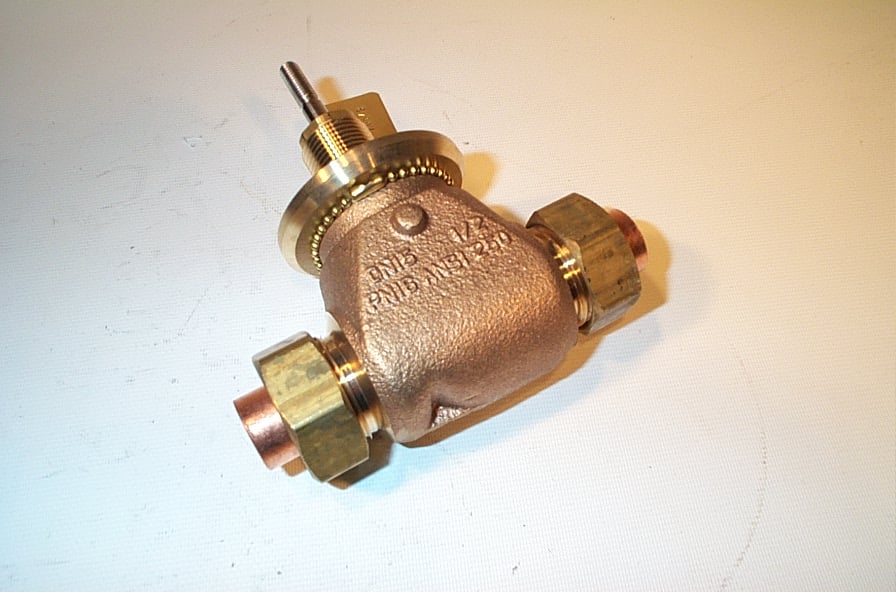

Johnson Controls VG7281ET+3008D Brass Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls Series VG7000 Model VG7281ET Brass Trim Globe Valve coupled with the Model V-3000-8012 Exposed Pneumatic Actuator effectively regulates hot or chilled water and up to 38 psig saturated steam. Featuring an ANSI Class 250 static pressure rating, this valve is ideal for robust fluid control in HVAC systems.

• Operates across a temperature range of 35 to 284 degrees Fahrenheit
• Engineered for both factory and field assembly
• Compatible with V-9502-90 Positioner for enhanced functionality

Product Highlights

Designed for durability, the valve's rugged actuator enclosure ensures reliability in demanding applications. Suitable for commercial HVAC systems controlling water or steam flow.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Product Type: Valve

Technical Specifications

• Product Code: VG7281ET+3008D
• Fluid Temperature Range: 35 to 284°F
• Saturated Steam Pressure: Up to 38 psig
• Static Pressure Rating: ANSI Class 250
• Actuator Type: Pneumatic
• Material: Brass trim
