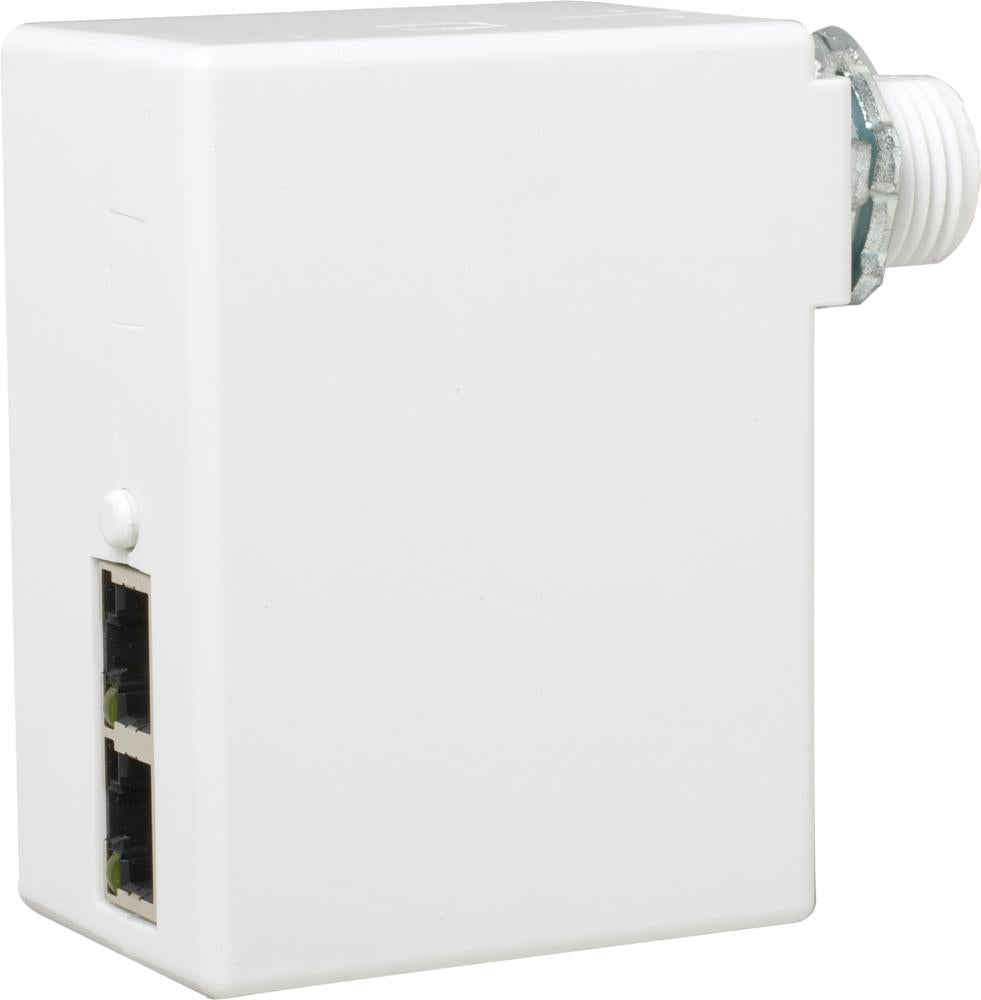

nLight NPP16DEFP Power / Relay Pack, 0-10VDC Dimming, External Fault Protection, Auto-On, 120-277VAC

Product Description

The nLight NPP16DEFP is a power/relay pack that serves as an essential component of the nLight system. It provides system power and manages lighting loads. The power pack converts Class 1 line voltage (120/277 VAC) to Class 2 15 VDC. An internal 16 A latching relay is used to control lighting loads, making it effective for commercial and industrial applications.

• Automatic on functionality
• Compatible with 0-10VDC dimming
• Includes external fault protection

Product Highlights

Designed for commercial settings, this device is ideal for schools, offices, and hospitals. It simplifies installation via an elongated chase nipple, allowing direct attachment through a knockout or into an adjacent junction box.

Product Information

Standard Information

• Color: White
• Material: Plastic

Technical Specifications

• Type: Power Pack
• Voltage Rating: 120/277 VAC
• Amperage Rating: 40 mA
• Dimensions: 4 inches W x 1.83 inches D x 2.5 inches H
• Dimmable: Yes
• Application: Education, Government, Healthcare, Hospitality, Retail, Warehouses
• Mounting Type: Unit to J Box
• Country of Origin: Mexico
