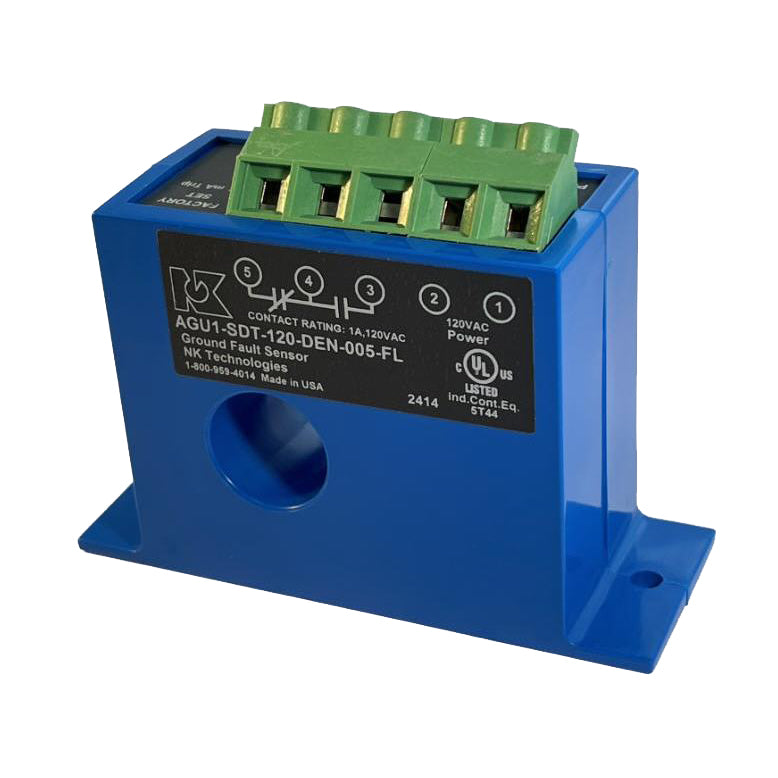

Nk Technologies AGU1-SDT-120-DEN-005-FL Ground Fault Relay 66-132 VAC (0.75 inch aperture)

Product Description

Nk Technologies AGU1-SDT-120-DEN-005-FL is a ground fault relay that detects AC leakage with a 5 mA trip sensitivity and a 0.75 inch aperture. It accepts 66 to 132 VAC supply voltage, provides an SPDT relay output with latching normally de-energized contacts, and is designed for chassis mounting with screw terminal termination. The unit includes a manual reset, a test button, a 0 s delay time, and operates from -20�C to 50�C.

• 5 mA trip sensitivity for AC ground fault detection with 0.75 inch aperture
• SPDT relay output with latching, normally de-energized contact action
• Chassis mount design with screw terminal termination, manual reset, and test button

Product Highlights

5 mA sensitivity; 66�132 VAC input; SPDT relay; chassis mount with screw terminals.

Product Information

Standard Information

• Brand: NK TECHNOLOGIES
• Manufacturer Part Number: AGU1-SDT-120-DEN-005-FL
