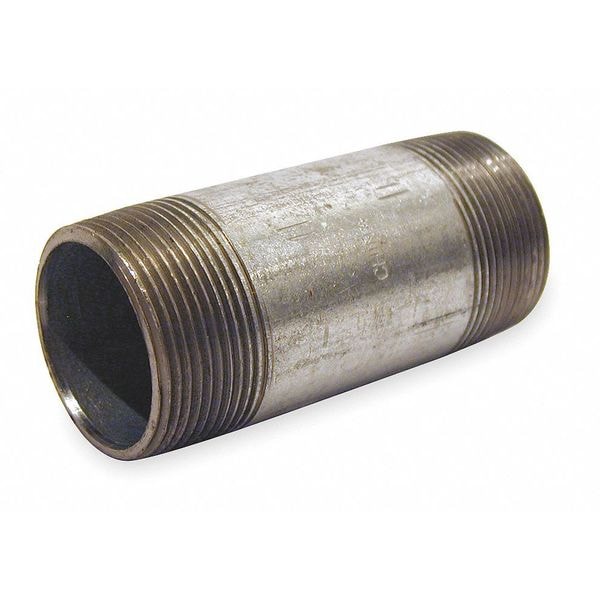

Nipples 331025205 Galvanized Pipe Nipple 1 in Sch 40

Product Description

The NIPPLES 331025205 is a galvanized steel pipe nipple manufactured to Schedule 40 specifications, designed for connecting threaded pipe systems in a range of industrial and mechanical applications. With a nominal pipe size of 1 inch, a male NPT threaded connection on Side A, and a threaded both ends (TBE) configuration at 5.5 inches overall length, this nipple delivers a reliable, pressure-rated joint. The galvanized finish provides corrosion resistance suited for exposure to moisture and moderate environmental conditions. Maximum rated operating pressure is 150 psi at 150 degrees F, making it appropriate for moderate-pressure service lines handled by licensed plumbers and pipefitters.

This pipe nipple is rated for use in air, gas, non-potable water, oil, and steam service lines. The continuous weld construction and Grade A steel meet the demands of commercial and light industrial piping installations. Typical applications include gas distribution headers, steam condensate return lines, compressed air branch lines, and oil transfer piping in mechanical rooms and industrial facilities. It is manufactured in the United States.

Key Features

• Schedule 40 wall thickness for standard-pressure piping systems
• Galvanized finish provides corrosion resistance for moisture-exposed environments
• Rated to 150 psi at 150 degrees F for air, gas, steam, oil, and non-potable water service
• Continuous weld, Grade A steel construction for consistent joint integrity
• Male NPT threads on both ends (TBE) for direct inline connection
• Made in the USA

Compatibility

Designed as an OEM-style replacement or standard installation component compatible with Schedule 40 threaded pipe fittings in 1-inch nominal pipe size systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code or International Fuel Gas Code as relevant to the service medium. Shut off and depressurize the line completely before disassembly or installation. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not overtighten threaded connections, as this can crack fittings or distort threads.

Technical Specifications

• Nominal Pipe Size: 1 inch
• Overall Length: 5.5 inches
• Outside Diameter: 1 5/16 inches
• Inside Diameter: 1 3/64 inches
• Schedule: Schedule 40
• Maximum Operating Pressure: 150 psi at 150 degrees F
• Connection Type: Threaded Both Ends (TBE), Male NPT
• Material: Steel, Grade A
• Finish: Galvanized
• Pipe Weld Type: Continuous Weld
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Country of Origin: United States

Standard Information

• Brand: NIPPLES
• Manufacturer Part Number: 331025205
