Product Description

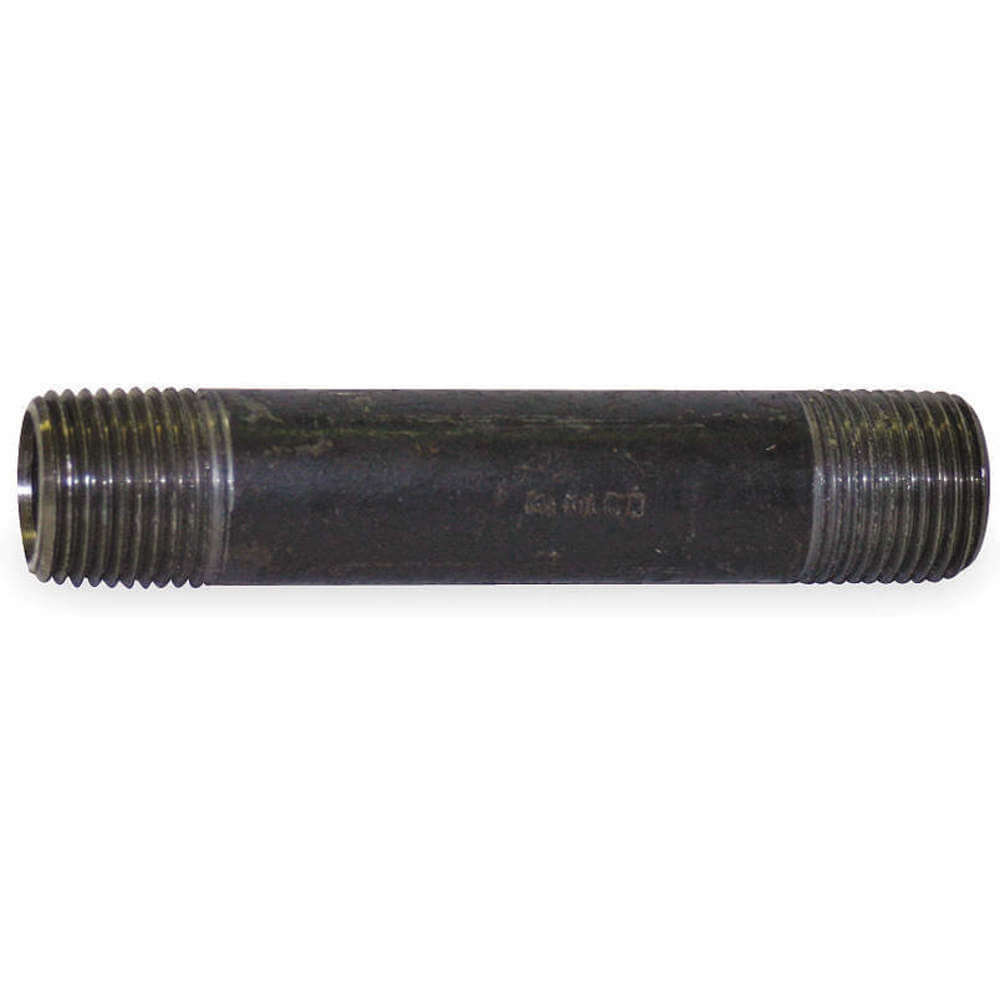

The NIPPLES 0332641208 is a steel pipe nipple designed for durability and strength. This product features threaded connections on both ends and is crafted using seamless construction. It meets ASTM A106 Grade B and ASTM A733 standards, making it reliable for various applications.
- Nominal pipe size: 2-1/2 inches
- Overall length: 4 inches
- Maximum steam pressure: 300 psi at 550°F
Product Highlights
This steel pipe nipple is suitable for transporting air, gas, non-potable water, oil, and steam. Its black anodized finish adds to its corrosion resistance. Its seamless design enhances reliability and performance in high-pressure environments.
Product Information
Standard Information
-
Basic Connection Type: Threaded At Both Ends
-
Body Material: Steel
Technical Specifications
-
MPN: 0332641208
-
Connection Type: Threaded At Both Ends
-
For Pipe Size: 2-1/2
-
Inside Diameter: 2-1/2
-
Length: 4
-
Max Pressure: 3000 psi
-
Max Steam Pressure: 300 psi WSP at 550 Degrees F
-
Outside Diameter: 2-7/8
-
Schedule: 80
-
Seamless/Welded: Seamless
-
Wall Thickness: 0.266
-
Application: Air, Gas, Non-Potable Water, Oil, Steam
-
Finish/Coating: Black Anodized
-
Fitting Compatibility: Schedule 80
-
Material Grade: Grade B
-
Maximum Operating Pressure: 1000 psi at 150°F
-
Side A Connection Type: Threaded
-
Side A Gender: Male
-
Side A Thread Type: NPT
-
Side B Connection Type: Threaded
-
Side B Gender: Male
-
Side B Thread Type: NPT
-
Standards: ASTM A106 GRADE B, ASTM A733
-
Thread Configuration: Threaded on Both Ends
-
Pipe Thread Type: MNPT x MNPT
-
Pipe Type: Pipe Nipple
-
Metal Detectable: Yes
