NIPPLES 0332637800 Black Pipe Nipple Threaded 2 In x 5-1/2 In

Product Description

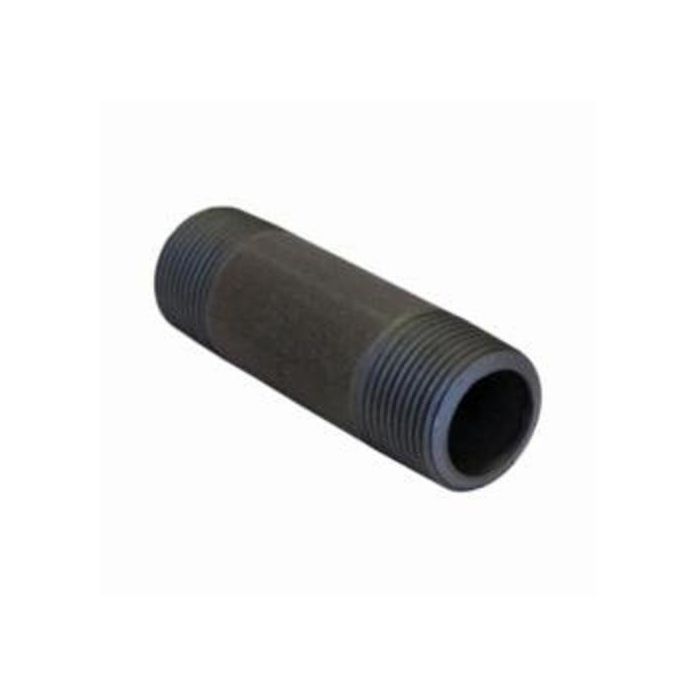

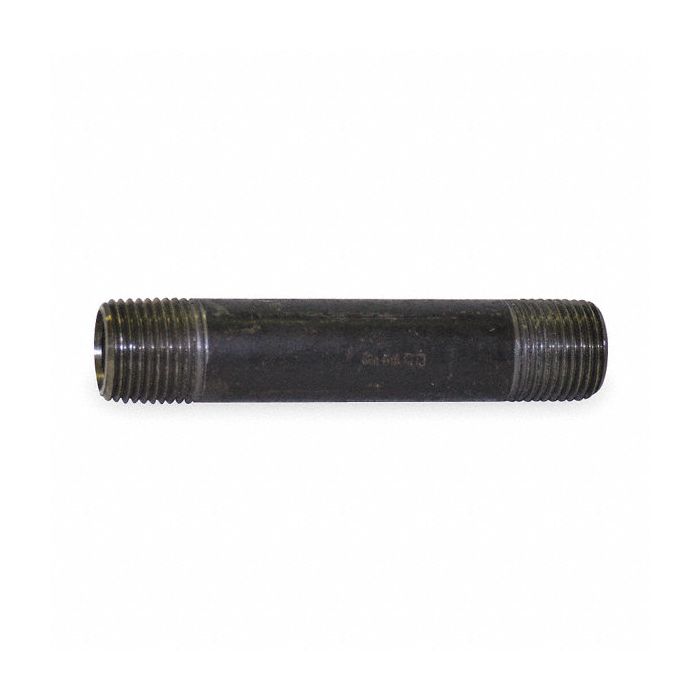

The NIPPLES 0332637800 is a black steel pipe nipple. It meets ASTM A106 Grade B and A733 standards. The nominal pipe size is 2 inches with an overall length of 5-1/2 inches. Both ends are threaded with MNPT x MNPT connections. This nipple is suitable for high-pressure applications, rated for a maximum pressure of 1500 psi at a temperature of 150 degrees Fahrenheit. It can handle steam pressure of up to 300 psi WSP at 550 degrees Fahrenheit.

• Constructed from black steel material.
• Threaded connections on both ends (MNPT x MNPT).
• Complies with ASTM A106 Grade B and A733 standards.

Product Highlights

This pipe nipple is ideal for connecting threaded components in various piping systems. Its robust construction ensures reliability in demanding conditions.

Product Information

Standard Information

• Material: Black Steel
• Connection Type: Threaded on Both Ends

Technical Specifications

• Pipe Schedule: 80
• Nominal Pipe Size: 2 In.
• Overall Pipe Length: 5-1/2 In.
• Pipe Thread Type: MNPT x MNPT
• Max Pressure: 1500 psi @ 150 Degrees F
• Max Steam Pressure: 300 psi WSP @ 550 Degrees F
• Wall Thickness: 13/64 In.
• Inside Diameter: 2 In.
• Outside Diameter: 2-3/8 In.
