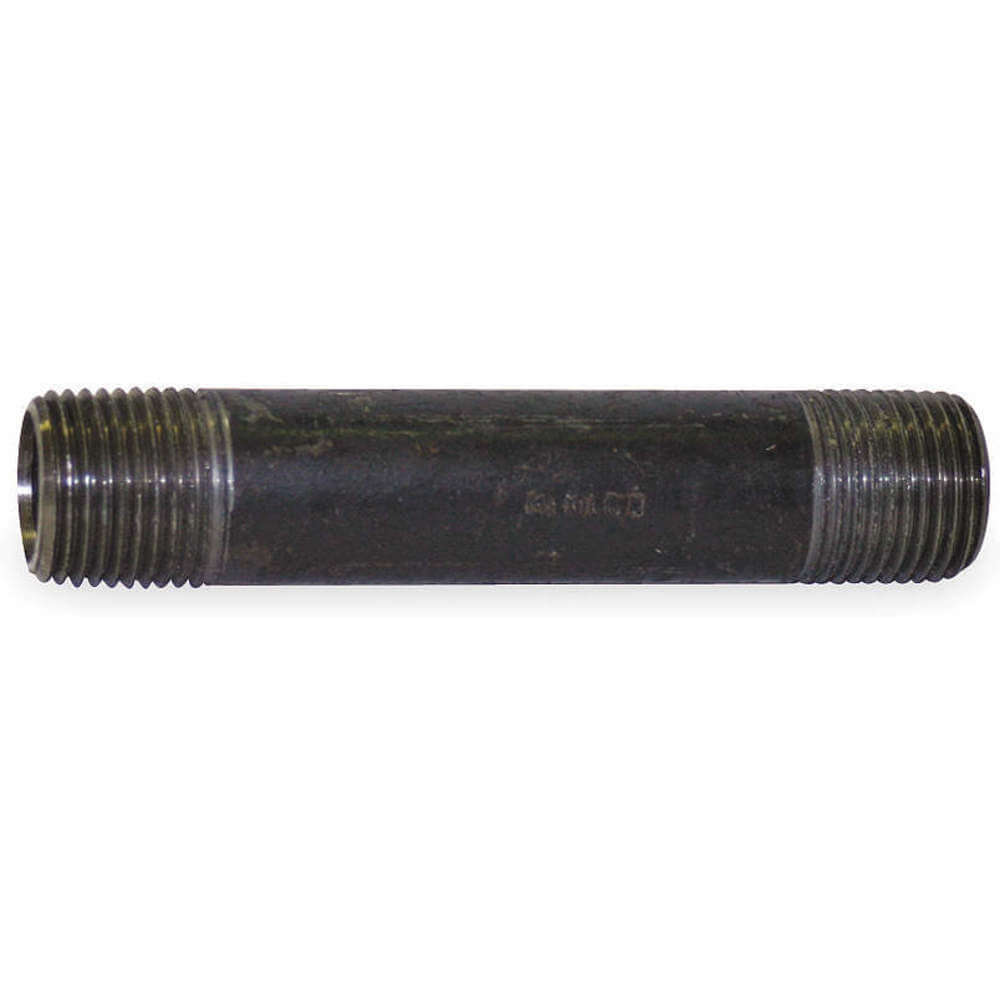

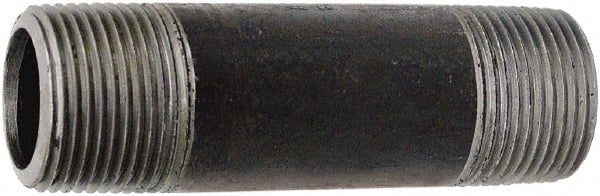

NIPPLES 0332637206 Steel Pipe Nipple, 2 in Size, 4 in Length

Product Description

The NIPPLES 0332637206 is a steel pipe nipple designed for various applications including air, gas, non-potable water, oil, and steam. It features a nominal pipe size of two inches and an overall length of four inches. Both ends of the nipple are threaded for secure connections.

• Two-inch nominal pipe size
• Overall length of four inches
• Threaded connections on both ends

Product Highlights

Product Information

Standard Information

• Item: Nipple
• Body Material: Steel

Technical Specifications

• Nominal Pipe Size: 2 inches
• Inside Diameter: 2 inches
• Length: 4 inches
• Maximum Pressure: 3000 psi
• Maximum Steam Pressure: 300 psi @ 550°F
• Outside Diameter: 2 3/8 inches
• Schedule: 80
• Seamless/Welded: Seamless
• Wall Thickness: 0.203 inches
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Finish/Coating: Black Anodized
• Fitting Compatibility: Schedule 80
• Material Grade: Grade B
• Metal Pipe Construction: Seamless
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Standards: ASTM A106 GRADE B, ASTM A733
• Thread Configuration: Threaded on Both Ends
• UNSPSC Code: 40175305
