Product Description

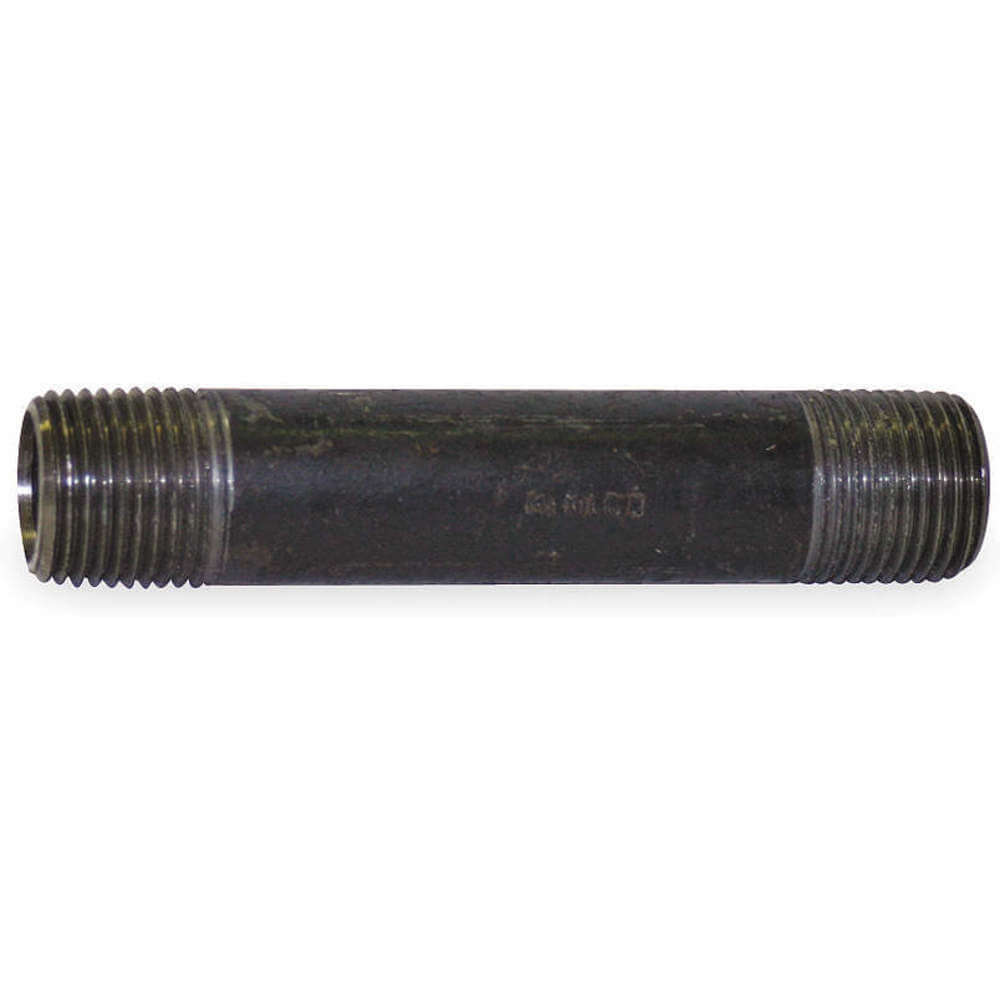

The NIPPLES 0332632801 is a steel pipe nipple with threaded connections on both sides. It is made for Schedule 80 pipes, applicable in various settings such as air, gas, non-potable water, oil, and steam. This nipple has a nominal size of one and one-half inches and measures three and one-half inches in length. It meets both ASTM A106 GRADE B and ASTM A733 standards.
- Constructed from steel material.
- Features threaded connections on both ends.
- Compatible with Schedule 80 pipes.
Product Highlights
This product provides reliable connections for various plumbing and piping needs in industrial and commercial applications.
Product Information
Standard Information
-
Item: Nipple
-
Basic Connection Type: Threaded At Both Ends
Technical Specifications
-
Body Material: Steel
-
Connection Type: Threaded At Both Ends
-
Nominal Pipe Size: 1.5 inches
-
Inside Diameter: 1.5 inches
-
Length: 3.5 inches
-
Max. Pressure: 3000 psi
-
Max. Steam Pressure: 300 psi WSP @ 550°F
-
Outside Diameter: 1.9 inches
-
Schedule: 80
-
Wall Thickness: 0.188 inches
-
Application: Air, Gas, Non-Potable Water, Oil, Steam
-
Finish/Coating: Black Anodized
-
Material Grade: Grade B
-
Maximum Operating Pressure: 1500 psi @ 150°F
-
Metal Pipe Construction: Seamless
-
Side A Connection Type: Threaded
-
Side A Gender: Male
-
Side A Thread Type: NPT
-
Side B Connection Type: Threaded
-
Side B Gender: Male
-
Side B Thread Type: NPT
-
Standards: ASTM A106 GRADE B, ASTM A733
-
Thread Configuration: Threaded on Both Ends
