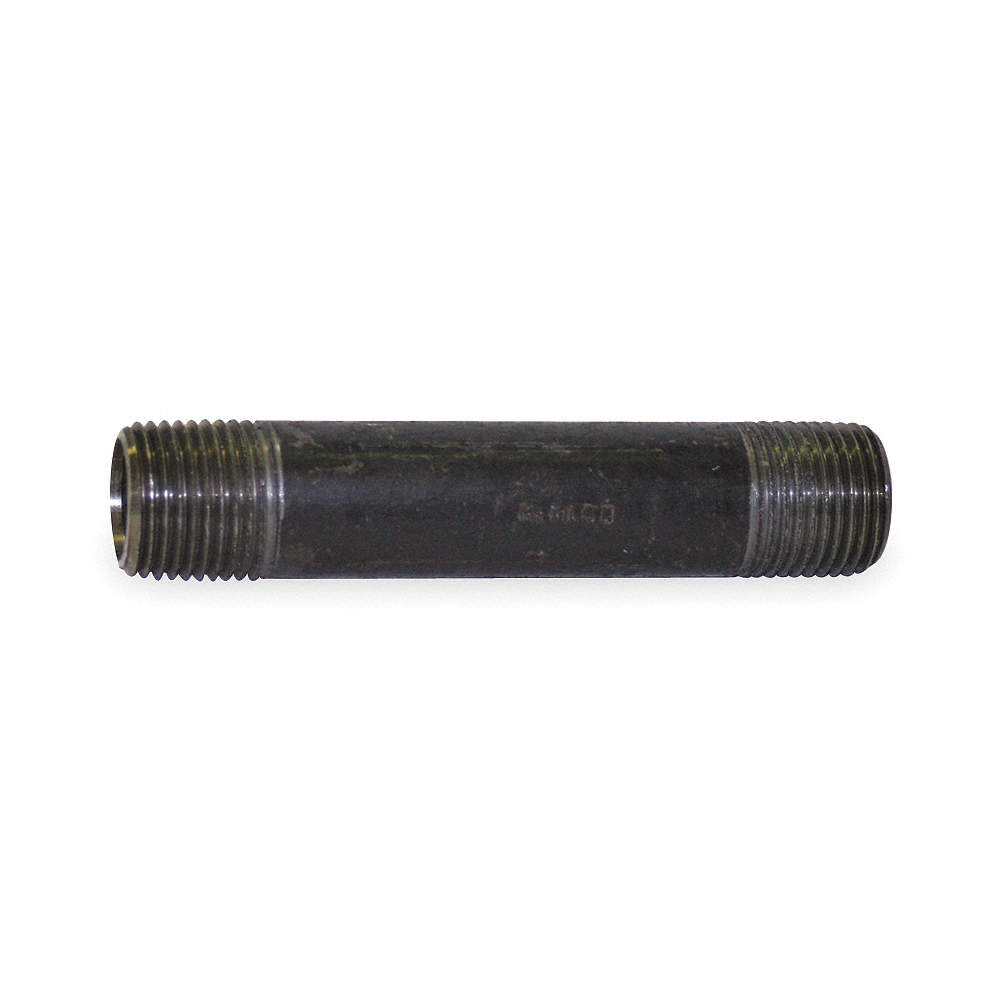

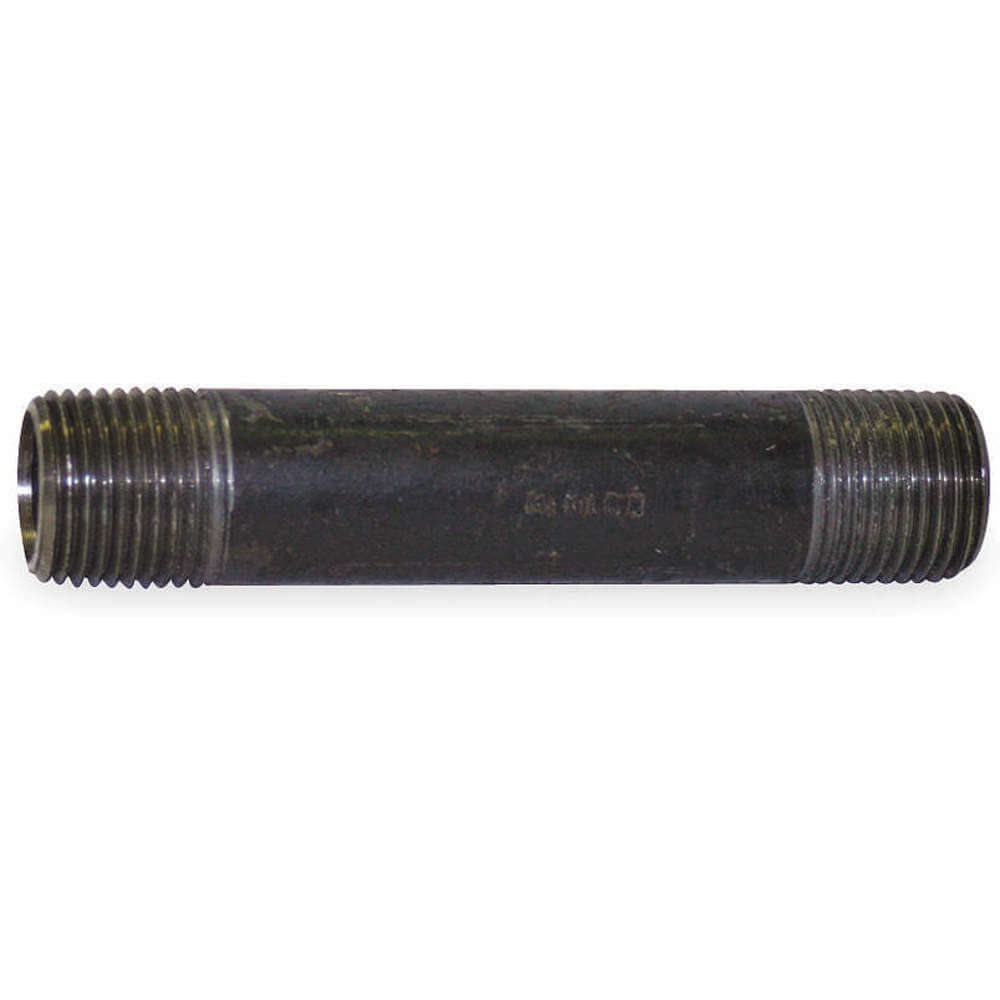

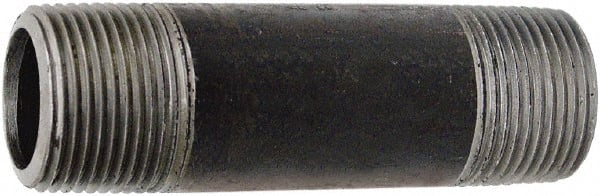

NIPPLES 0332632207 Pipe Nipple 1-1/2 Inch 2 Inch Length

Product Description

The NIPPLES 0332632207 is a pipe nipple designed with threaded connections on both ends. This product is constructed from steel, making it suitable for various applications, including air, gas, non-potable water, oil, and steam. Its seamless design and black anodized finish ensure durability and reliability. The pipe nipple is manufactured to meet ASTM A733 standards.

• Pipe Size: 1-1/2 inches
• Length: 2 inches
• Material: Steel

Product Highlights

This pipe nipple is crafted for high-pressure applications, featuring a seamless construction that ensures a strong and secure fit.

Product Information

Standard Information

• Item: Nipple
• Basic Connection Type: Threaded At Both Ends

Technical Specifications

• Body Material: Steel
• Nominal Pipe Size: 1-1/2 inches
• Length: 2 inches
• Maximum Pressure: 3000 psi
• Maximum Steam Pressure: 300 psi at 550 Degrees F
• Outside Diameter: 1 57/64 inches
• Schedule: 80
• Seamless/Welded: Seamless
• Wall Thickness: 0.188 inches
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Finish/Coating: Black Anodized
• Material Grade: Grade B
• Metal Pipe Construction: Seamless
• Overall Length: 2 inches
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Standards: ASTM A106 GRADE B, ASTM A733
• Thread Configuration: Threaded on Both Ends
• Manufacture Location: Globally Sourced
