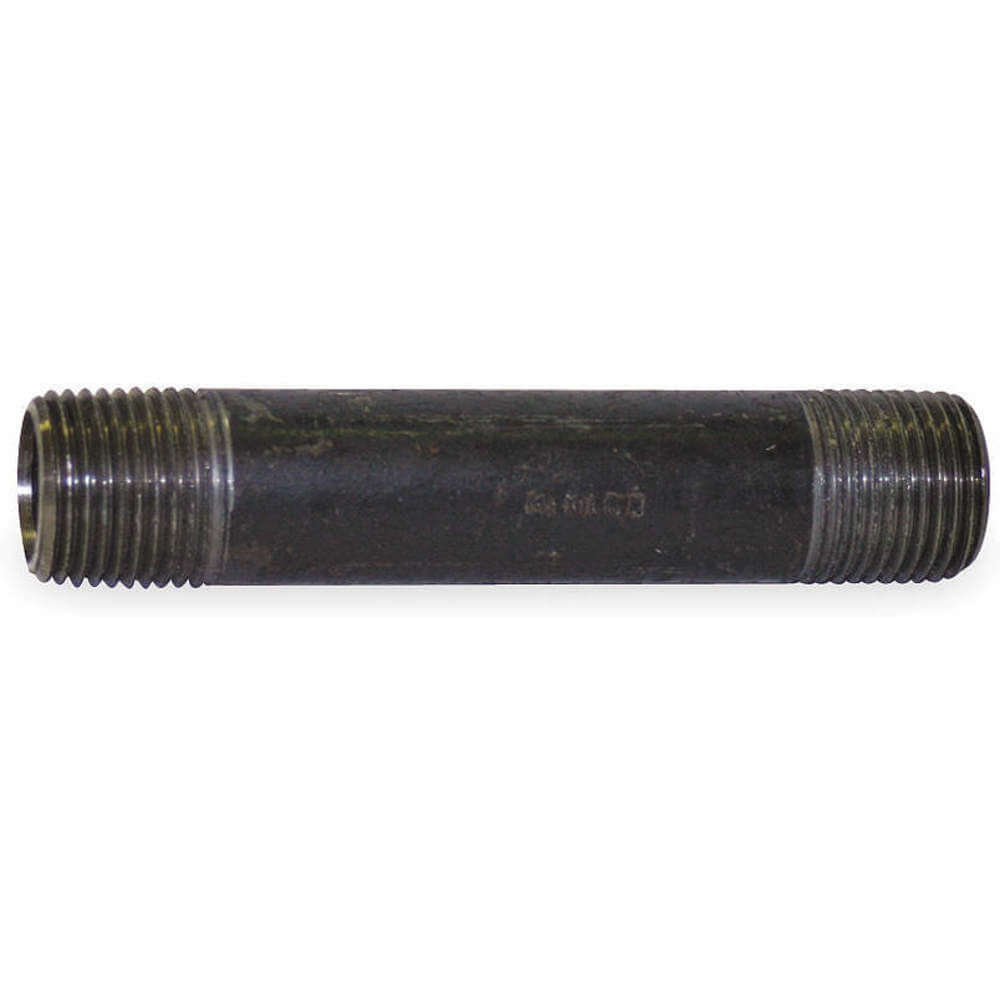

NIPPLES 0332628403 Pipe Nipple 1-1/4 Inch Size

Product Description

The NIPPLES 0332628403 is a pipe nipple made from steel. This product has threaded connections on both ends which is suitable for pipe sizes of one and one-quarter inches. It is three and one-half inches long with an outside diameter of one point six six inches. This nipple is rated to withstand a maximum pressure of three thousand psi and a maximum steam pressure of three hundred psi WSP at five hundred fifty degrees Fahrenheit.

• Threaded connection type on both ends.
• Seamless steel construction for durability.
• Handles high pressure applications.

Product Highlights

This pipe nipple is ideal for various piping systems where threaded connections are necessary.

Product Information

Standard Information

• Item: Nipple
• Body Material: Steel

Technical Specifications

• Maximum Pressure: 3000 psi
• Maximum Steam Pressure: 300 psi WSP at 550 degrees Fahrenheit
• Length: 3.5 inches
• Outside Diameter: 1.66 inches
• Schedule: 80
• Seamless/Welded: Seamless
• Wall Thickness: 0.191 inches
• Inside Diameter: 1.25 inches
