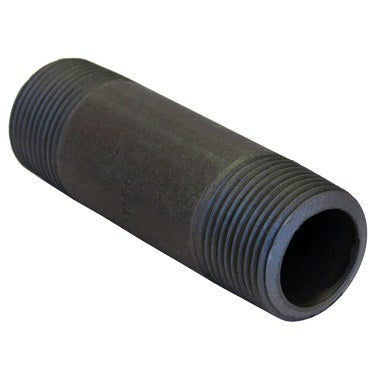

NIPPLES 0332628205 Black Pipe Nipple - 1-1/4x3 In

Product Description

The NIPPLES 0332628205 is a black steel pipe nipple with a nominal pipe size of one and one-fourth inches and an overall length of three inches. This pipe has threaded connections on both ends, following the MNPT x MNPT pipe thread type. Built to Schedule 80 standards, it has a wall thickness of three-sixteenths inches, an inside diameter of one and one-fourth inches, and an outside diameter of one and twenty-one thirty-seconds inches.

• Constructed from black steel material
• Features MNPT x MNPT threaded connections
• Complies with ASTM A106 Grade B and ASTM A733 standards

Product Highlights

This pipe nipple is designed to handle a maximum pressure of one thousand five hundred psi at one hundred fifty degrees Fahrenheit and a maximum steam pressure of three hundred psi WSP at five hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Pipe Schedule: 80
• Connection Type: Threaded on Both Ends

Technical Specifications

• Material: Black Steel
• Pipe Size - Nominal: 1-1/4 In.
• Overall Pipe Length: 3 In.
• Pipe Thread Type: MNPT x MNPT
• Max Pressure: 1500 psi @ 150 Degrees F
• Max Steam Pressure: 300 psi WSP @ 550 Degrees F
• Wall Thickness: 3/16 In.
• Inside Dia: 1-1/4 In.
• Outside Dia: 1-21/32 In.
• Standards: ASTM A106 Grade B Seamless Pipe, ASTM A733
