Product Description

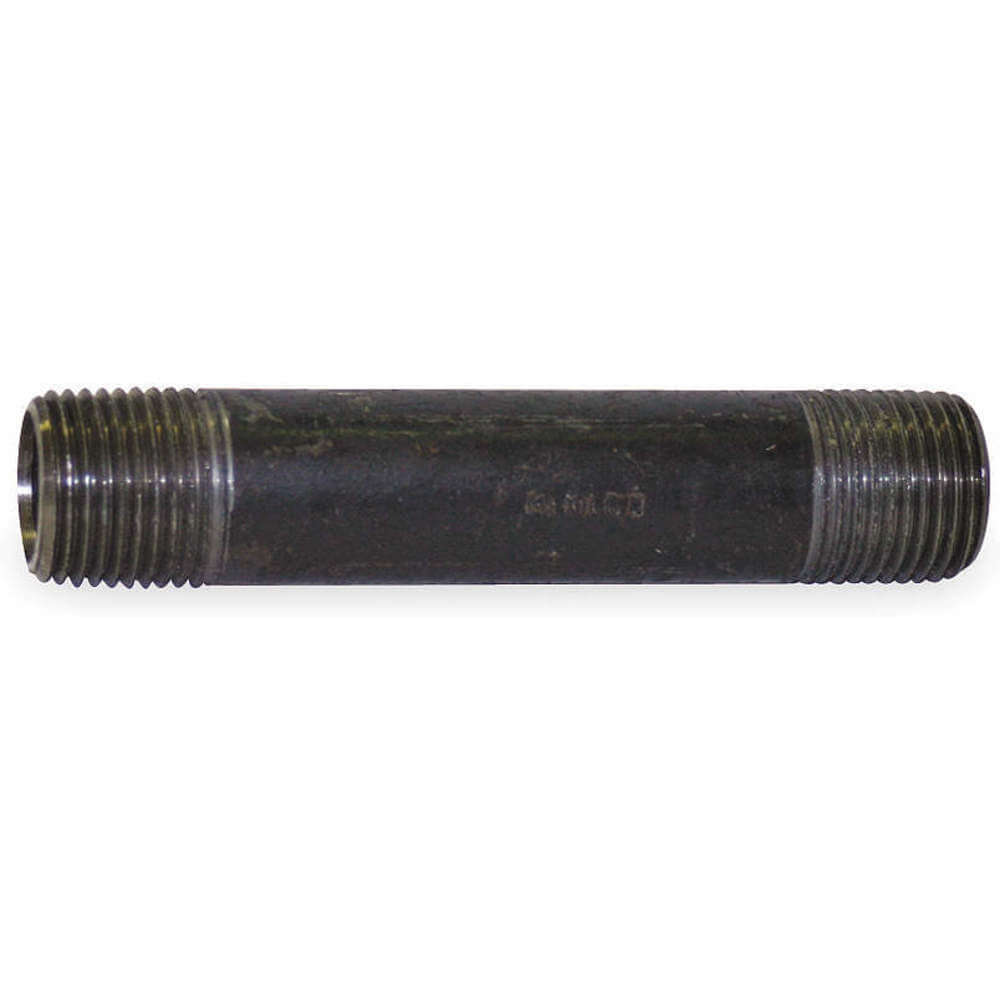

The NIPPLES 0332623602 is a steel pipe nipple designed for reliable connections in various applications. This nipple has a nominal pipe size of one inch and a length of two and a half inches. It features threaded connections on both ends for easy installation with Schedule 80 pipes. The steel material ensures durability for air, gas, non-potable water, oil, and steam applications.
- 1 in nominal pipe size
- 2-1/2 in overall length
- Threaded connections at both ends
Product Highlights
This steel pipe nipple is suitable for a range of industrial and commercial applications where a strong and tight connection is essential.
Product Information
Standard Information
-
Item: Nipple
-
Basic Connection Type: Threaded at both ends
Technical Specifications
-
Body Material: Steel
-
Nominal Pipe Size: 1 inch
-
Inside Diameter: 1 inch
-
Length: 2-1/2 inches
-
Maximum Pressure: 3000 psi
-
Maximum Steam Pressure: 300 psi at 550 degrees Fahrenheit
-
Outside Diameter: 1.315 inches
-
Schedule: 80
-
Seamless/Welded: Seamless
-
Wall Thickness: 0.172 inches
-
Application: Air, Gas, Non-Potable Water, Oil, Steam
-
Finish/Coating: Black Anodized
-
Fitting Compatibility: Schedule 80
-
Material Grade: Grade B
-
Maximum Operating Pressure: 2000 psi at 150 degrees Fahrenheit
-
Metal Pipe Construction: Seamless
-
Side A Connection Type: Threaded
-
Side A Gender: Male
-
Side A Thread Type: NPT
-
Side B Connection Type: Threaded
-
Side B Gender: Male
-
Side B Thread Type: NPT
-
Standards: ASTM A106 Grade B, ASTM A733
-
Thread Configuration: Threaded on both ends
-
UNSPSC Code: 40175305
