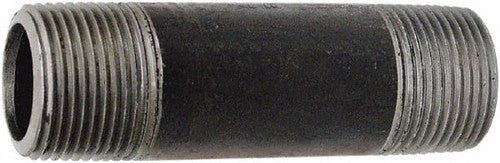

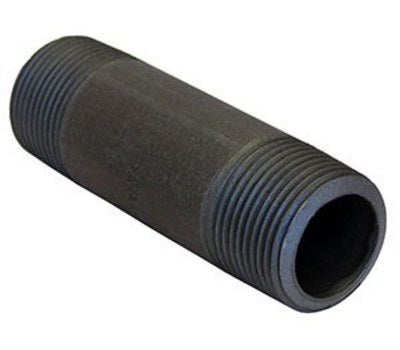

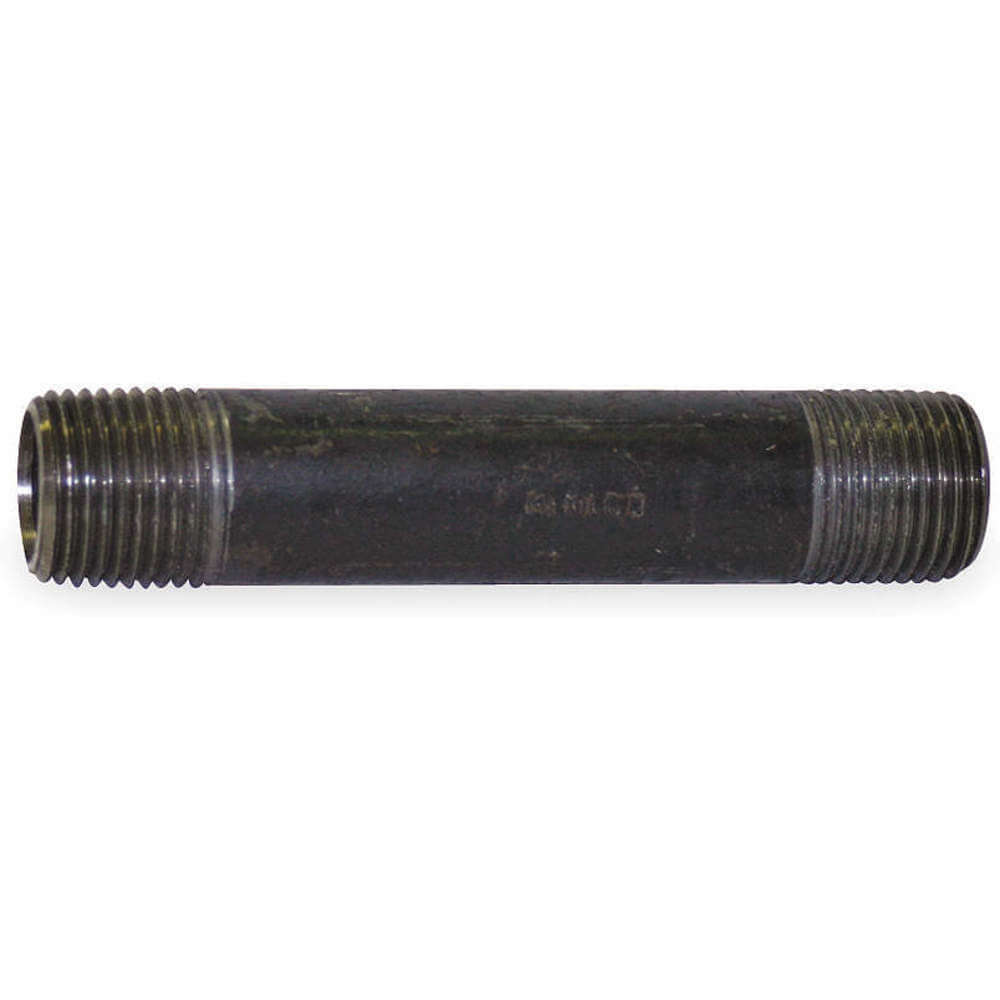

NIPPLES 0332623404 Steel Pipe Nipple 1 in x 2 in Schedule 80

Product Description

The NIPPLES 0332623404 is a steel pipe nipple designed for fluid transfer. This product has a nominal pipe size of one inch and a total length of two inches. Constructed from steel, the nipple ensures reliable connections in plumbing systems. It features threaded ends that are compatible with Schedule 80 fittings.

• Constructed from steel
• Threaded connections on both ends
• Complies with Schedule 80 specifications

Product Highlights

This steel pipe nipple is essential for various fluid transportation needs, ensuring a secure fit and high durability. It meets industry standards for pressure and material quality.

Product Information

Standard Information

• Item: Nipple
• Brand: NIPPLES

Technical Specifications

• MPN: 0332623404
• Connection Type: Threaded at both ends
• Body Material: Steel
• Nominal Pipe Size: 1 inch
• Inside Diameter: 1 inch
• Length: 2 inches
• Max Pressure: 3000 psi
• Maximum Steam Pressure: 300 psi at 550°F
• Outside Diameter: 1.315 inches
• Schedule: 80
• Wall Thickness: 0.172 inches
• Application: Air, gas, non-potable water, oil, steam
• Finish: Black anodized
• Material Grade: Grade B
• Specifications Met: ASTM A106, ANSI B1.20.1
• Item Weight: 0.31 lbs
